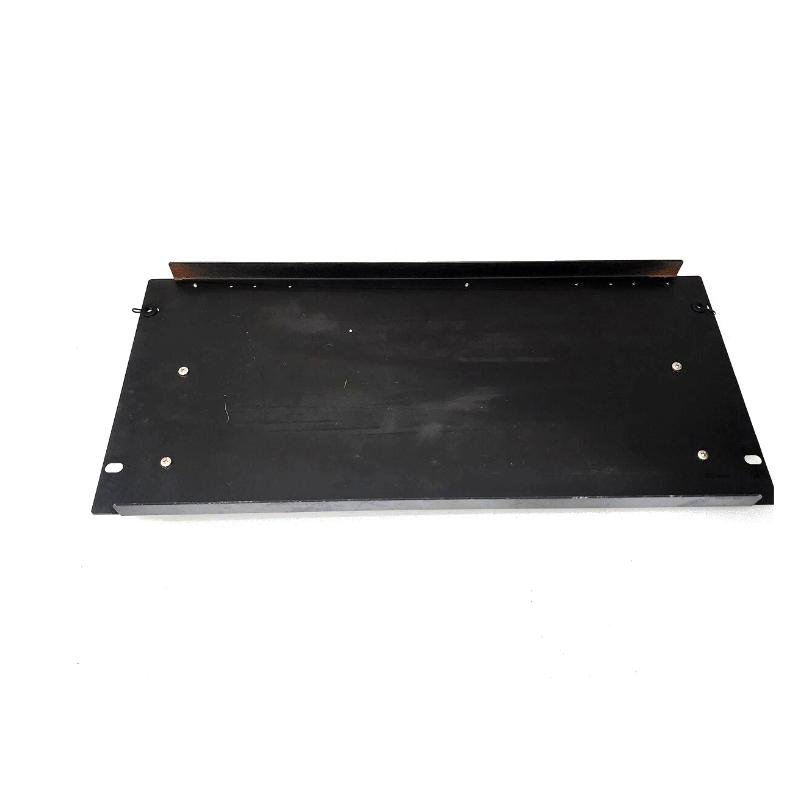

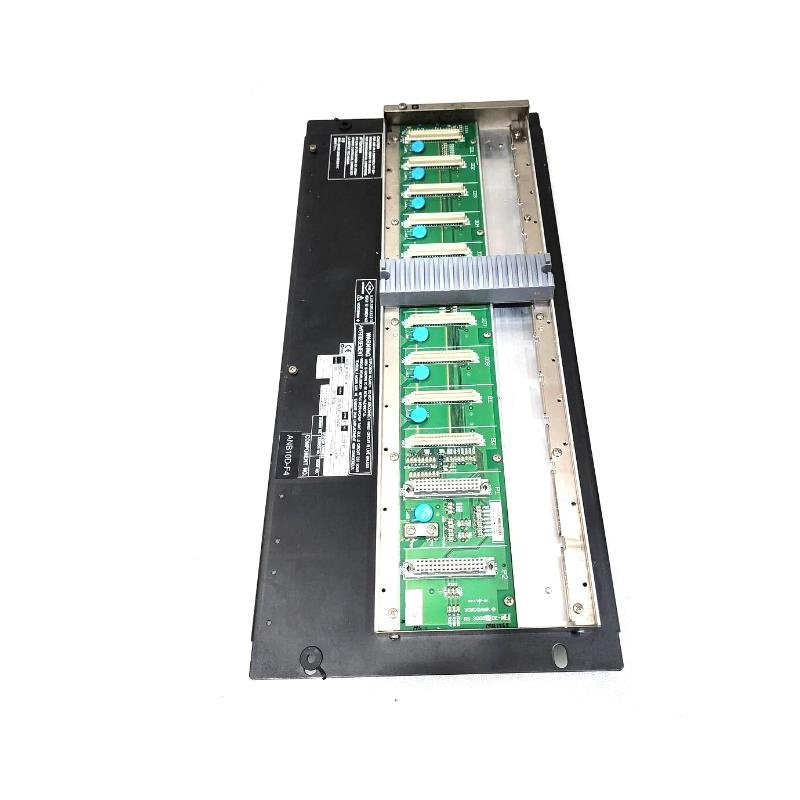

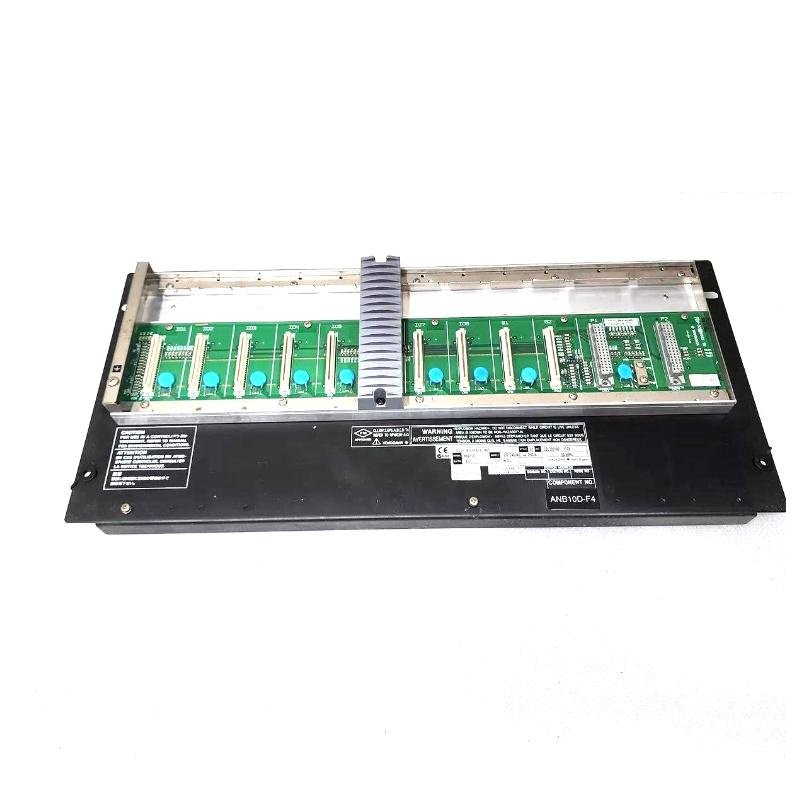

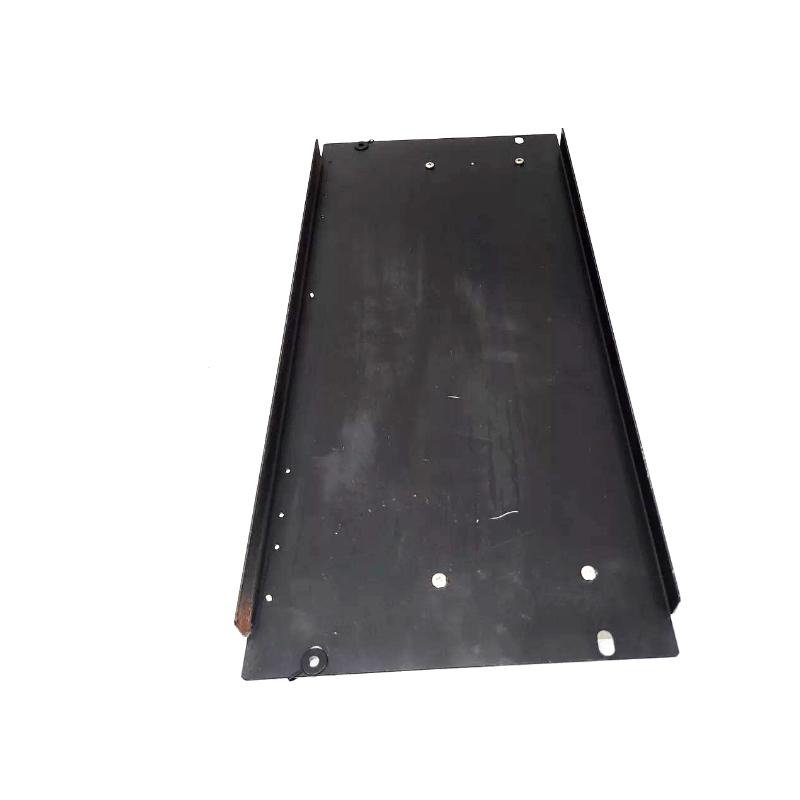

Yokogawa ANB10D-425/CU2T ESB Bus Node Unit
Manufacturer: Yokogawa
Product Number: ANB10D-425/CU2T
Category: ESB Bus Node Unit
System Compatibility: Yokogawa ESB (Ethernet Safety Bus) system
Application: Communication interface providing seamless integration between safety field devices and the control system
Product Description
The Yokogawa ANB10D-425/CU2T ESB Bus Node Unit is a key component in the Yokogawa ESB (Ethernet Safety Bus) system, designed to provide seamless integration between safety field devices and the control system. This module acts as the communication hub for safety-related data transmission, ensuring real-time, high-integrity communication across the network. The ANB10D-425/CU2T is engineered for use in safety-critical applications and supports the efficient management of safety devices in industrial automation systems.
Key Features
-
High-Integrity Communication–Facilitates safe, reliable data transmission between field devices and control systems via Ethernet safety bus
-
Versatile Connectivity–Compatible with a wide range of Yokogawa safety devices and control systems
-
Scalability–Easily integrates into larger Yokogawa control networks, supporting system expansion as needed
-
Real-Time Monitoring–Enables real-time status monitoring and diagnostic capabilities for safety devices
-
Robust Design–Built to operate in harsh industrial environments, ensuring long-term reliability
-
Seamless Integration–Designed for compatibility with Yokogawa’s DCS, safety systems, and related control platforms
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC nominal |
| Communication Protocol | Ethernet Safety Bus (ESB) |
| Data Transfer Rate | High-speed, real-time data transfer |
| Isolation | Electrical isolation for system integrity |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | Meets IEC standards for industrial environments |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa DCS, ESB Safety Systems, and related control platforms |
Industry Applications
-
Industrial Automation–Used in safety-related control systems to ensure reliable communication and monitoring of field devices
-
Power Generation–Supports safe data transmission between turbine, generator, and auxiliary control equipment
-
Oil and Gas–Provides secure, real-time monitoring of safety-critical devices in upstream, midstream, and downstream operations
-
Chemical and Petrochemical–Ensures reliable operation of safety devices in hazardous process environments
-
Water and Wastewater Treatment–Ensures safety and reliability of devices monitoring critical treatment processes
The Yokogawa ANB10D-425/CU2T ESB Bus Node Unit offers essential capabilities for integrating safety systems, providing secure, real-time communication across industrial control networks.
