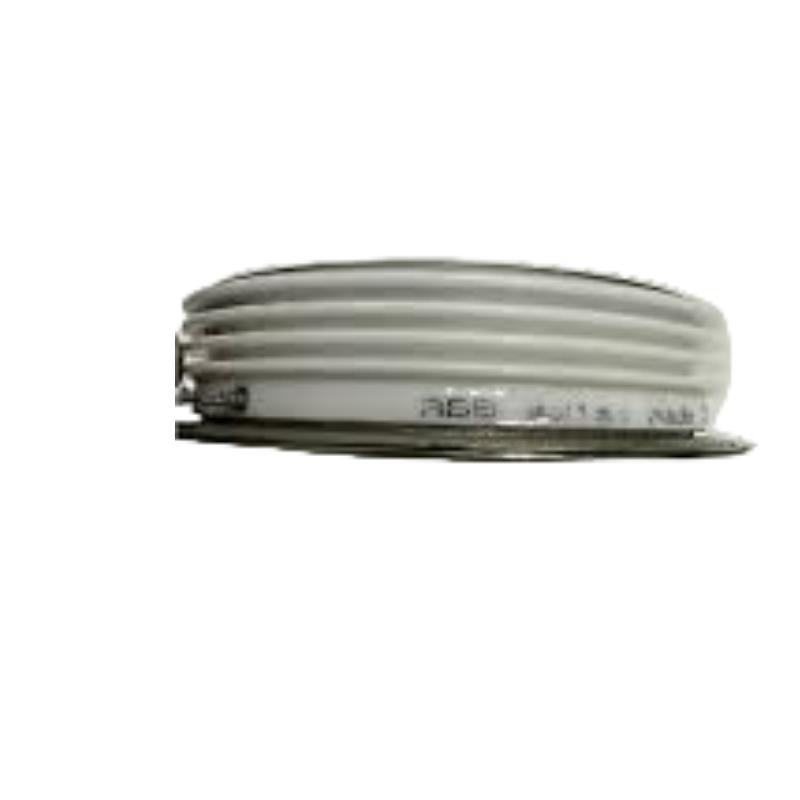

ABB 5STP1752H000 3BHL000986P3016 High Power Thyristor
Manufacturer: ABB
Product Number: 5STP1752H000 (3BHL000986P3016)
Category: High Power Press-Pack Thyristor
Application: Medium and high-voltage power conversion systems
Features: Robust mechanical structure, high current handling capability, low on-state voltage drop
Product Description
The ABB 5STP1752H000 (ordering code 3BHL000986P3016) is a high-performance press-pack thyristor designed for use in medium and high-voltage power conversion systems. With its robust mechanical structure, high current handling capability, and excellent surge resistance, this device provides stable and reliable operation in demanding industrial environments. It is widely applied in areas such as HVDC transmission, industrial drives, power grids, and heavy-duty rectifiers, where efficiency and durability are critical.
Main Features
• High blocking voltage rating for secure operation in high-voltage networks
• Large surge current capacity ensuring safe performance under fault conditions
• Low on-state voltage drop for improved efficiency and reduced power losses
• Press-pack design with uniform pressure distribution for high reliability
• High thermal cycling capability supporting long-term heavy-duty operation
• Rugged package resistant to shock, vibration, and harsh industrial conditions
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 83 mm × 26 mm (diameter × height) |
| Weight | 0.65 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 5STP1752H000 / 3BHL000986P3016 |
| Product Type | High Power Press-Pack Thyristor |
| Package Style | Disc-type, press-pack |
| Mounting | Axial pressure contact |
| Cooling Method | Conduction cooling |
Electrical Characteristics
| Item | Specification |
|---|---|
| Repetitive Peak Voltage (V_RRM) | 4500 V |
| RMS On-State Current (I_T(RMS)) | 1752 A |
| Average On-State Current (I_T(AV)) | 1100 A |
| Surge Current (I_TSM, 10 ms) | 25 kA |
| On-State Voltage Drop (V_T) | 1.9 V (at rated current) |
| Gate Trigger Current (I_GT) | 150 mA |
| Gate Trigger Voltage (V_GT) | 3.0 V |
| Turn-Off Time (t_q) | 200 μs |
Thermal and Environmental Specifications
| Item | Specification |
|---|---|
| Junction Temperature Range | -40 °C to +125 °C |
| Storage Temperature | -40 °C to +150 °C |
| Thermal Resistance (junction to case) | 0.025 K/W |
| Isolation Voltage (RMS, 1 min) | 3.0 kV |
| Protection Class | IP20 |
Industry Applications
The ABB 5STP1752H000 (3BHL000986P3016) is widely adopted in industrial and energy applications requiring high reliability and long service life, such as:
• HVDC Transmission Systems–high-voltage direct current converters for power grids
• Industrial Drives–motor control and high-power variable speed drives
• Power Generation–turbine excitation and generator rectifiers
• Metals and Mining–arc furnaces, electrolysis, and rolling mill drives
• Renewable Energy–converters for wind and solar power integration
• Traction Systems–railway propulsion and braking applications
