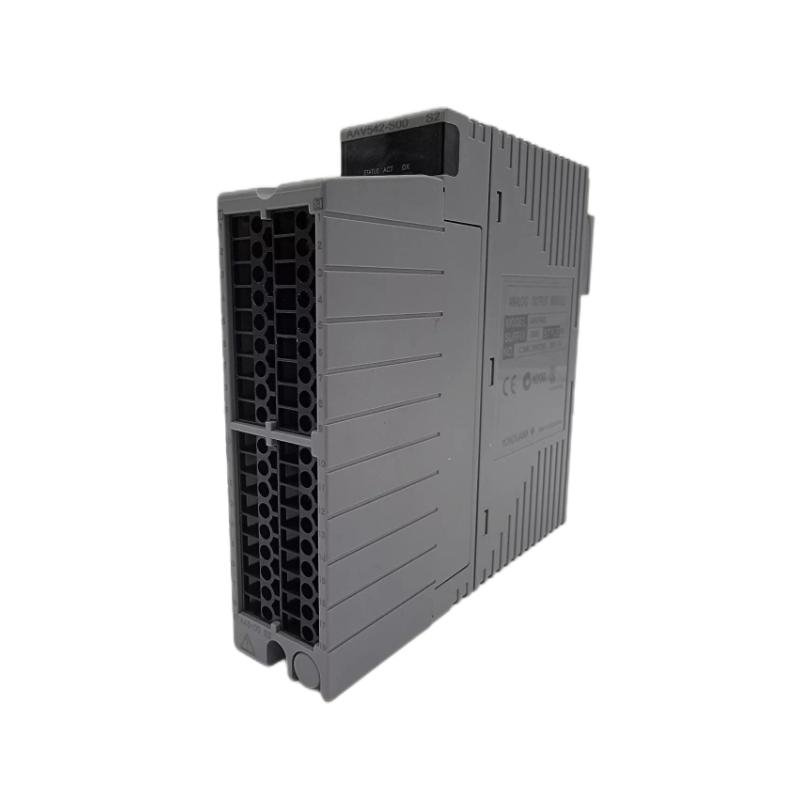

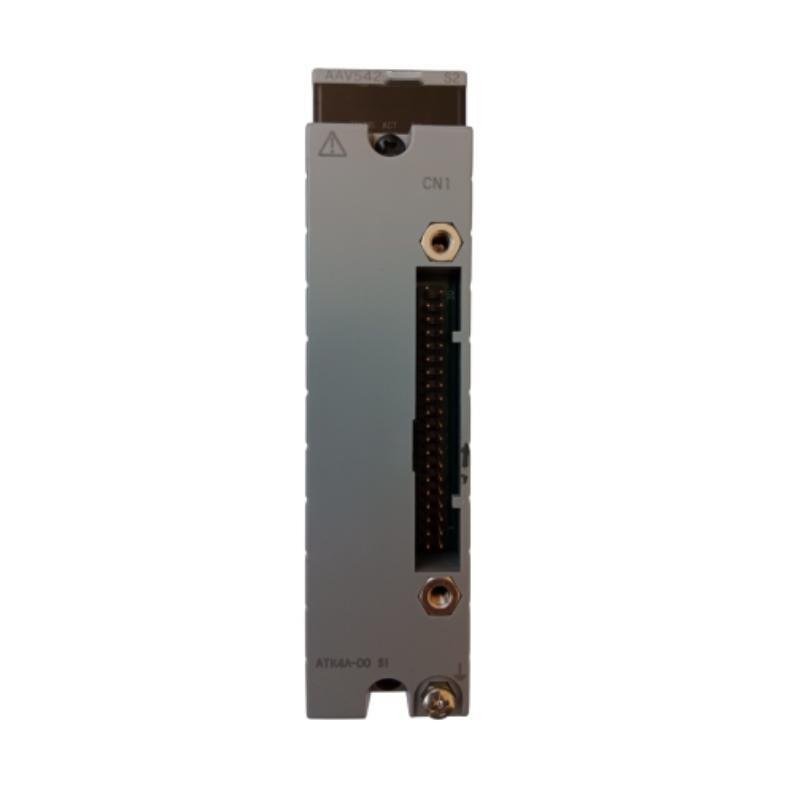

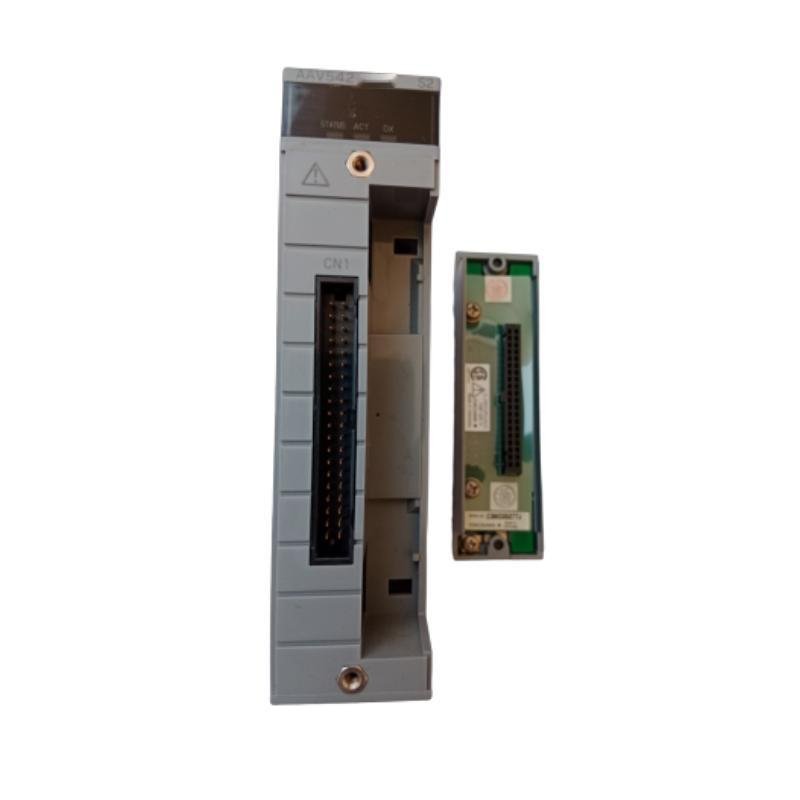

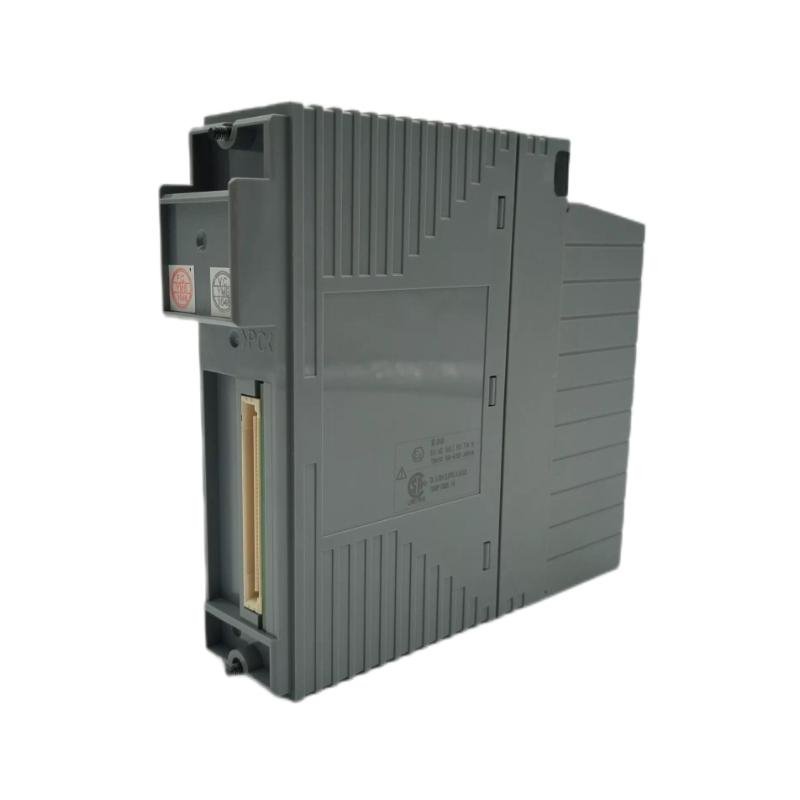

Yokogawa AAV542 Voltage Output Module
Manufacturer: Yokogawa
Product Number: AAV542
Category: Voltage Output Module
Number of Channels: 8 (typical)
Output Range: 0-10 V DC, ±10 V DC
Resolution: 16 bits
Accuracy: ±0.1% of full scale
System Compatibility: Yokogawa process automation systems
Product Description
The Yokogawa AAV542 Voltage Output Module is engineered for delivering precise voltage signals to field devices in process automation and industrial control systems. It converts digital control signals from a central controller into accurate analog voltage outputs, ensuring stable and reliable actuation of final control elements such as valves, actuators, and drives. As part of Yokogawa’s high-performance analog I/O family, the AAV542 provides robust performance and long-term reliability in demanding environments.
Key Features
-
High-Precision Voltage Output: Provides accurate analog voltage output for precise control of field equipment.
-
Multiple Output Channels: Supports multiple channels for efficient and flexible signal distribution.
-
Wide Output Range: Offers standard voltage output ranges compatible with industrial standards.
-
Built-In Diagnostics: Includes self-diagnostic capabilities to monitor output status and module health.
-
Compact and Durable Design: Small form factor with rugged construction for harsh environments.
-
Seamless System Integration: Easily integrates with Yokogawa’s control systems and engineering tools.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | AAV542 |
| Module Type | Voltage Output Module |
| Output Channels | 4 or 8 channels (model-dependent) |
| Output Range | 0–10 V or ±10 V |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Output Accuracy | ±0.1% of full scale |
| Load Resistance | ≥2 kΩ |
| Power Consumption | < 5 W |
| Operating Temp | -10°C to +55°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Yokogawa CENTUM, STARDOM, etc. |
| Communication Protocol | Standard Yokogawa I/O Protocol |
| Software Configuration | Yokogawa Engineering Tools |
Industry Applications
-
Process Automation: Provides analog control signals to valves and actuators in continuous process industries.
-
Factory Automation: Enables precise output control in automated manufacturing systems.
-
Building Management: Controls lighting, HVAC, and other systems with analog signal requirements.
-
Energy and Utilities: Used in power generation and distribution systems for controlling voltage-dependent devices.
-
Water Treatment Plants: Supports accurate dosing and flow regulation through analog voltage control.
The Yokogawa AAV542 Voltage Output Module is a reliable and accurate solution for delivering analog voltage signals in control systems. Its robust design, diagnostic features, and easy integration make it a key component in ensuring stable and efficient automation performance.
