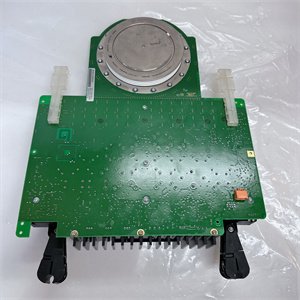

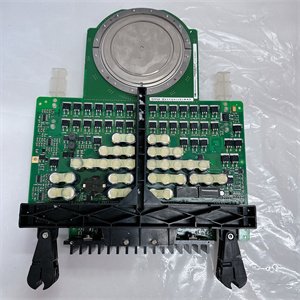

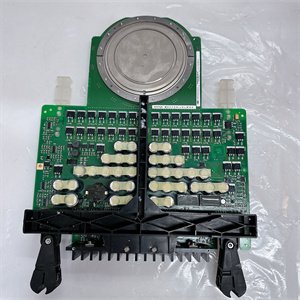

ABB 5SHY3545L0010 Integrated Gate Commutated Thyristor Module

The ABB 5SHY3545L0010 is a high-power Integrated Gate Commutated Thyristor (IGCT) module designed for medium-voltage power conversion systems. Engineered for industrial and grid-scale applications, the 5SHY3545L0010 combines the low on-state losses of thyristors with the fast switching capabilities of transistors, delivering reliable performance in high-current environments. This module integrates a GTO chip, anti-parallel diode, and advanced gate drive circuit, enabling precise control of power distribution. Key features include a 4.5 kV blocking voltage, 3.5 kA nominal current, and rapid turn-on/off times (1.5 μs each), making it ideal for applications requiring high surge current handling and efficient energy management. The 5SHY3545L0010 is widely used in medium-voltage drives, grid stabilization systems, and industrial automation, offering robust operation in harsh conditions.

Product Parameters

Advantages and Features

• High Power Handling: 4.5 kV/3.5 kA ratings support heavy-duty industrial applications.
• Low Losses: Reduced on-state voltage (2.5 V) and switching losses improve energy efficiency by 15% compared to traditional GTOs.
• Fast Response: 1.5 μs switching times enable precise control in dynamic systems.
• Integrated Design: Built-in gate driver eliminates external components, reducing system complexity.
• Reliability: High surge current capability (10x rated current) and rugged construction ensure 10+ years of service in grid and industrial settings.

Application Areas and Use Cases

• Industries: Manufacturing (motor drives), energy (grid converters), oil & gas (pump systems), and transportation (rail traction).
• Use Case: A 50 MVA grid-connected converter in a wind farm uses the 5SHY3545L0010 to manage reactive power and voltage stability, achieving 99% efficiency and 50% reduction in harmonic distortion compared to legacy thyristor solutions.

Competitor Comparison

Compared to similar power semiconductors:

• Higher Voltage/Current: 4.5 kV/3.5 kA vs. typical IGBTs (3.3–4.5 kV, 1–3 kA).
• Faster Switching: 1.5 μs vs. 5–10 μs for traditional GTOs.
• Simpler Design: Integrated gate driver reduces component count by 30% vs. discrete GTO configurations.

Selection Recommendations

• Voltage/Current Matching: Ensure system requirements (e.g., 4.5 kV bus, 3–4 kA load) align with the module’s ratings.
• Cooling Strategy: Choose water-cooled variants for high-temperature environments (>50°C) or heatsink solutions for moderate loads.
• System Integration: Verify compatibility with ABB’s ACS6000 series drives or third-party platforms using fiber-optic gate control.

Precautions

• Installation: Torque busbar connections to 10–12 N·m to avoid thermal stress; ensure proper thermal interface between the module and heatsink.
• Cooling Maintenance: Monitor coolant flow (5–10 L/min) and temperature (max. 85°C junction temperature) for water-cooled systems.
• Gate Drive Safety: Protect fiber-optic cables from physical damage; inspect connectors annually for corrosion.
