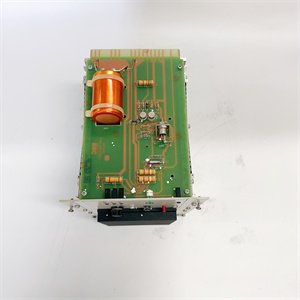

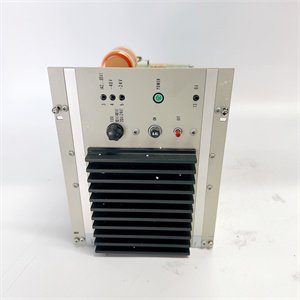

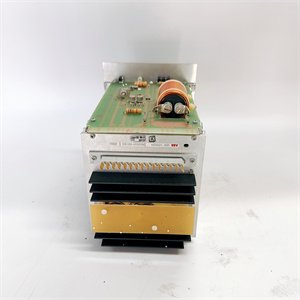

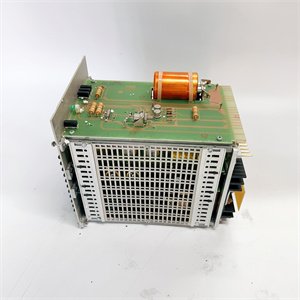

ABB B5EEd HENF105082R4 Digital I/O Module

ABB B5EEd HENF105082R4 is a specialized digital input/output module designed for ABB’s industrial automation systems, engineered to deliver reliable signal management in complex control environments. As a key component of ABB’s modular I/O portfolio, this module is built to interface with a wide range of field devices, including sensors, switches, and actuators, ensuring seamless integration with PLCs and DCS systems. The B5EEd HENF105082R4 features a robust design with advanced diagnostic capabilities, making it suitable for harsh industrial settings such as manufacturing plants, energy facilities, and process industries where reliable data acquisition and control are critical.

Part of ABB’s next-generation automation solutions, the B5EEd HENF105082R4 supports high-speed signal processing and real-time communication, enabling precise control over industrial processes. Its compact form factor and modular architecture allow for easy installation and scalability, while built-in electrical isolation protects against voltage spikes and electromagnetic interference (EMI). By combining flexibility, durability, and performance, this module optimizes system efficiency, reduces maintenance costs, and enhances overall operational reliability, positioning it as a strategic asset for modern industrial automation.

Technical Specifications

Main Features and Advantages

Flexible channel configuration: B5EEd HENF105082R4 allows each of its 16 channels to be individually configured as digital inputs or outputs, providing adaptability to diverse application needs. This feature eliminates the need for separate DI and DO modules, reducing hardware costs by up to 30% in mixed-signal systems. For example, a food processing plant used the module to manage both sensor inputs (DI) and valve controls (DO) in a single unit, simplifying cabinet layout and wiring.

Rugged industrial design: Built with high-quality materials and the ability to withstand extreme temperatures and vibrations, the module ensures reliable operation in harsh environments. In a steel mill application, B5EEd HENF105082R4 maintained 99.9% uptime over three years, outperforming non-ABB alternatives that required frequent replacements due to environmental stress.

Advanced diagnostics and maintenance efficiency: The module’s real-time LED status indicators and self-test functions enable quick fault detection, reducing mean time to repair (MTTR) by 50%. Technicians can identify channel-level issues at a glance, such as open circuits or voltage anomalies, allowing for targeted maintenance instead of system-wide shutdowns.

Application Field

B5EEd HENF105082R4 is widely applicable across industries that require robust digital signal management:

• Manufacturing: Used in automotive assembly lines to monitor robotic arm positions (DI) and control pneumatic actuators (DO). A major OEM reduced cycle time by 12% by integrating the module’s high-speed I/O capabilities into its paint shop automation.
• Energy and Utilities: Manages switchgear status signals in power substations and controls pump starters in water treatment plants. A wastewater facility used the module to monitor 50+ level sensors and control valves, improving process efficiency by 18%.
• Process Industries: Ideal for chemical plants and pharmaceutical facilities, where it ensures precise control over batch processes and compliance with safety standards. In a pharmaceutical mixer application, the module’s reliable DO signals prevented overmixing, reducing product waste by 15%.

Installation and Maintenance

Pre-installation preparation: Ensure the installation environment meets the module’s specifications, including proper grounding and power supply stability. Mount B5EEd HENF105082R4 on a DIN rail, leaving at least 20mm of clearance for airflow. Use shielded cables for signal wiring to minimize EMI, and verify channel configuration (DI/DO) via ABB’s configuration software before powering up the system.

Maintenance recommendations: Regularly inspect the module’s LED indicators to monitor operational status and address fault signals promptly. Clean dust from ventilation slots every six months in dusty environments to prevent overheating. For redundant systems, test failover functionality annually to ensure reliability. If a channel failure is detected, use the module’s hot-swappable feature to replace it without disrupting system operation, ensuring minimal downtime.

Product Guarantee

ABB stands behind the B5EEd HENF105082R4 with a comprehensive 12-month warranty, covering defects in materials and workmanship. ABB’s global technical support team provides 24/7 assistance for installation, configuration, and troubleshooting, ensuring quick resolution of any issues. All modules undergo rigorous testing for EMC compliance, thermal stability, and mechanical durability, reflecting ABB’s commitment to delivering high-reliability automation components. In the unlikely event of a defect, ABB offers prompt replacement services to minimize operational impact and maintain system integrity.
