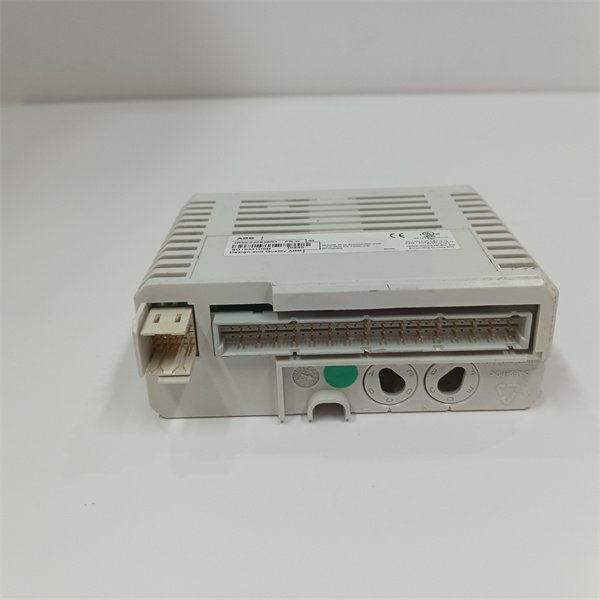

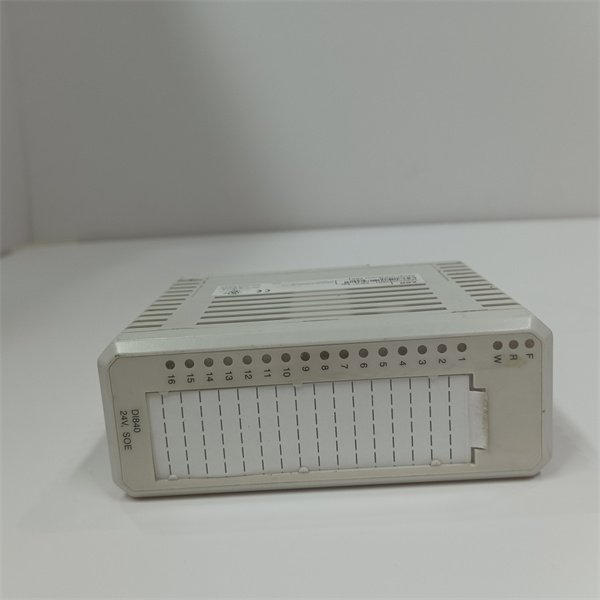

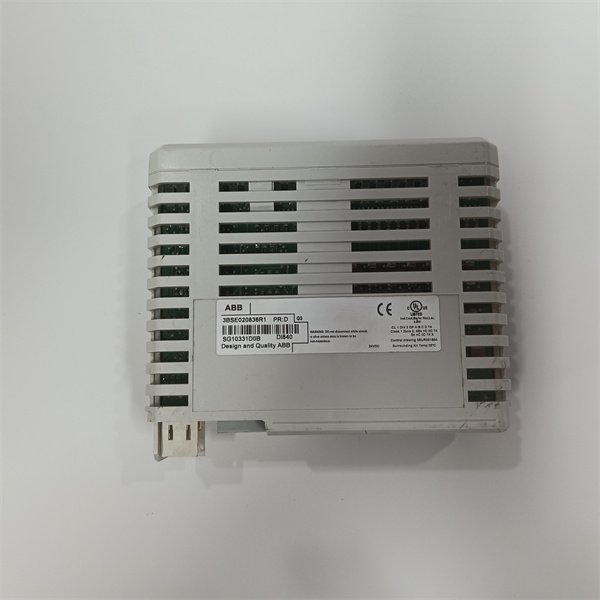

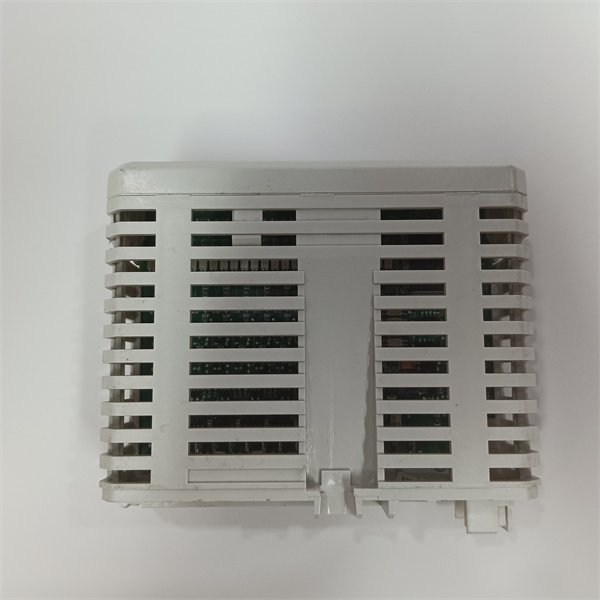

ABB DI840 3BSE020836R1 Digital input module

The DI840 3BSE020836R1 is a high-performance digital input module from ABB, designed as a key component of the S800 I/O system—a modular automation platform widely used in industrial control. This module specializes in converting discrete on/off signals from field devices (such as limit switches, pushbuttons, and proximity sensors) into digital data for processing by ABB controllers like the AC 800M.

As a 16-channel module, the DI840 3BSE020836R1 offers flexible configuration to handle both normally open (NO) and normally closed (NC) contacts, making it adaptable to diverse sensor types. Its integration with the ModuleBus protocol ensures seamless communication with the control system, enabling real-time monitoring of field device status. In automation networks, the DI840 3BSE020836R1 acts as a critical interface, bridging physical equipment and digital control logic to enhance system responsiveness and reliability.

Detailed parameter table

Core advantages and technical highlights

Isolated channel design: Each of the 16 channels in the DI840 3BSE020836R1 features 500 V AC isolation from other channels and the backplane, preventing signal interference in noisy industrial environments. This is particularly valuable in facilities with high electromagnetic interference (EMI), such as near motor drives or welding equipment, where cross-talk between sensors could disrupt control logic.

Rapid response times: With an on-response time of ≤1 ms and off-response time of ≤5 ms, the DI840 3BSE020836R1 ensures timely detection of critical events, such as emergency stops or equipment faults. In high-speed manufacturing lines, this speed minimizes reaction delays, reducing the risk of product defects or machinery damage.

Flexible integration: The module’s compatibility with ABB’s S800 I/O rack and ModuleBus protocol allows easy scaling of I/O systems. Whether deployed in small machinery or large-scale process plants, the DI840 3BSE020836R1 integrates smoothly with AC 800M controllers and other S800 modules, simplifying system expansion without redesigning the control architecture.

Diagnostic capabilities: Built-in diagnostics monitor channel status, enabling early detection of open circuits or short circuits. This feature reduces troubleshooting time by pinpointing faulty connections or sensors, ensuring minimal downtime in critical applications like chemical processing or power generation.

Typical application scenarios

In automotive assembly plants, the DI840 3BSE020836R1 plays a vital role in monitoring robotic workcells. It connects to 16 proximity sensors that detect the presence of car parts on conveyor belts, triggering robotic arms to perform welding or fastening tasks. The module’s fast response ensures precise synchronization between part movement and robot actions, reducing cycle times and improving production efficiency.

Within water treatment facilities, the DI840 3BSE020836R1 monitors float switches in storage tanks and valve position sensors in filtration systems. Its isolated channels prevent ground loops from affecting readings, ensuring accurate detection of high/low water levels. This reliability is critical for preventing overflow incidents or equipment dry-running, which could lead to costly repairs or regulatory violations.

In pharmaceutical manufacturing, the DI840 3BSE020836R1 integrates with door interlocks and pressure sensors in cleanrooms. By monitoring these devices, it ensures compliance with strict hygiene protocols—for example, preventing door openings during sterile processing. The module’s diagnostic features also alert maintenance teams to sensor malfunctions, ensuring uninterrupted production of critical medications.

Installation, commissioning and maintenance instructions

Installation preparation: Mount the DI840 3BSE020836R1 in an S800 I/O rack on a 35 mm DIN rail, ensuring the ambient temperature remains between 0°C and 60°C. Use shielded twisted-pair cables (0.5 – 1.5 mm²) for field connections, grounding the shield at the module end to minimize EMI. Verify that the power supply (24 V DC) is stable and protected by a 1 A fuse. Before wiring, confirm channel configurations (NO/NC) via software to match sensor types, preventing incorrect signal detection.

Maintenance suggestions: Inspect the DI840 3BSE020836R1 quarterly for loose connections or dust accumulation, cleaning with compressed air if needed. Use ABB’s Control Builder software to check diagnostic data, addressing open/short circuit alerts promptly by testing associated sensors or wiring. Replace the module if channels consistently fail to detect signals, ensuring the replacement unit is configured with the same parameters. Calibrate response times annually using a signal generator to maintain accuracy, particularly in time-critical applications like high-speed manufacturing.
