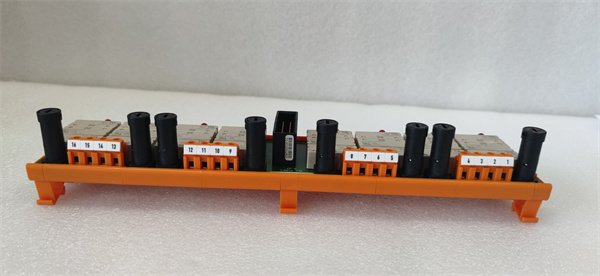

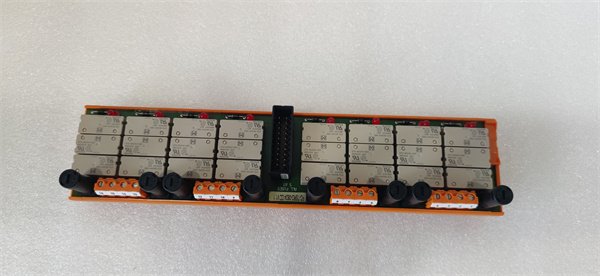

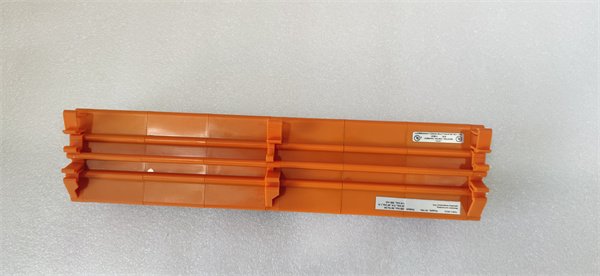

Honeywell FC-TSRO-0824 Safety relay module

The FC-TSR0-0824 is a compact safety relay module from Honeywell, designed to strengthen the safety infrastructure of industrial automation systems. As a key part of Honeywell’s safety I/O lineup, it acts as a versatile bridge between safety sensors (like emergency stops, light curtains, and interlock switches) and actuators (such as contactors and valves), ensuring dependable monitoring and control of low-power safety functions.

FC-TSR0-0824 is distinguished by its 8 configurable channels, which can be set as inputs or outputs according to specific application requirements. This flexibility makes it perfect for small to medium-sized safety loops in machinery, production lines, and process equipment. Whether integrated with Honeywell’s Safety Manager or used independently, FC-TSR0-0824 delivers SIL 2-certified performance, ensuring adherence to global safety standards while streamlining system design and cutting installation expenses.

Detailed parameter table

Core advantages and technical highlights

Flexible channel configuration: FC-TSR0-0824 comes with 8 channels that can each be programmed as safety inputs or outputs, eliminating the need for separate input and output modules in smaller systems. For instance, in a packaging machine, 4 channels can monitor emergency stops and light curtains (as inputs), while the remaining 4 can control conveyor shutdowns and alarm buzzers (as outputs). This versatility reduces inventory complexity and saves space in control panels.

SIL 2 safety integrity: Certified to SIL 2 under IEC 61508, FC-TSR0-0824 guarantees reliable fault detection and response in safety-critical applications. Its design incorporates built-in diagnostics that constantly monitor channel health, short circuits, and overcurrent conditions, sending fault signals to the safety controller for prompt action. This level of integrity is vital for protecting operators in areas like material handling or assembly cells, where unexpected machine movement could result in injury.

Rapid response time: With a response time of ≤10 ms, FC-TSR0-0824 ensures quick reactions to safety events. When an emergency stop is activated, the module immediately cuts power to connected actuators, minimizing the risk of harm. This speed is especially valuable in high-speed machinery, such as automated packaging lines or robotic workstations, where even a small delay could lead to accidents.

Seamless integration: FC-TSR0-0824 is fully compatible with Honeywell’s Safety Manager system and works well with modules like the FC-QPP-0001, enabling scalable safety architectures. It communicates via a proprietary safety bus, allowing centralized configuration and monitoring through Honeywell’s Safety Builder software. For standalone applications, it supports manual configuration via DIP switches, making it easy to use for simple safety loops without complex programming.

Typical application scenarios

In automotive assembly cells, FC-TSR0-0824 monitors safety interlocks on robot guard doors and controls the robot’s emergency stop circuit. Four channels function as inputs to detect door position (open/closed), while the other four act as outputs to cut power to the robot’s drive system and activate warning lights. Its fast response time ensures the robot stops within 10 ms of a door being opened, protecting workers from moving parts.

Food and beverage processing lines use FC-TSR0-0824 to secure cleaning and maintenance operations. The module connects to pull-cord emergency stops along the conveyor and controls the conveyor motor contactor. If a cord is pulled, FC-TSR0-0824 immediately shuts down the conveyor and sends a fault signal to the plant SCADA system. Its 24 V DC operation integrates smoothly with the low-voltage sensors commonly found in food-grade environments.

Pharmaceutical packaging machines depend on FC-TSR0-0824 to monitor light curtains around filling stations. When an operator’s hand enters the curtain’s range, the module’s input channels detect the interruption and trigger output channels to stop the filling pump and sound an alarm. Its compact size fits easily in the machine’s control cabinet, and its SIL 2 certification ensures compliance with strict FDA safety requirements for pharmaceutical manufacturing.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing FC-TSR0-0824, ensure the DIN rail is securely mounted in a dust-free enclosure with an ambient temperature between -10°C and +55°C. Use a torque wrench set to 0.5 Nm to fasten the module for a stable fit. Verify that the 24 V DC power supply is properly grounded and protected by a 0.5 A fuse. Use shielded cables (minimum 0.5 mm²) for all safety connections, routing them separately from power cables to avoid electromagnetic interference. Clearly label each channel to simplify future troubleshooting.

Maintenance suggestions: For FC-TSR0-0824, conduct monthly visual inspections to check for loose connections or damaged terminals. Test safety functions quarterly by activating emergency stops or simulating fault conditions to ensure the module responds within 10 ms. Annually, use a multimeter to verify continuity across relay contacts—any signs of increased resistance indicate wear and require module replacement. Always use Honeywell-certified spare parts to maintain SIL 2 integrity. Back up configuration settings (if using software) to a secure device, and avoid hot-swapping the module during operation to prevent safety loop disruptions.
