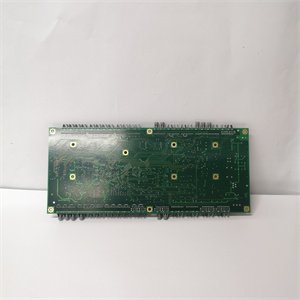

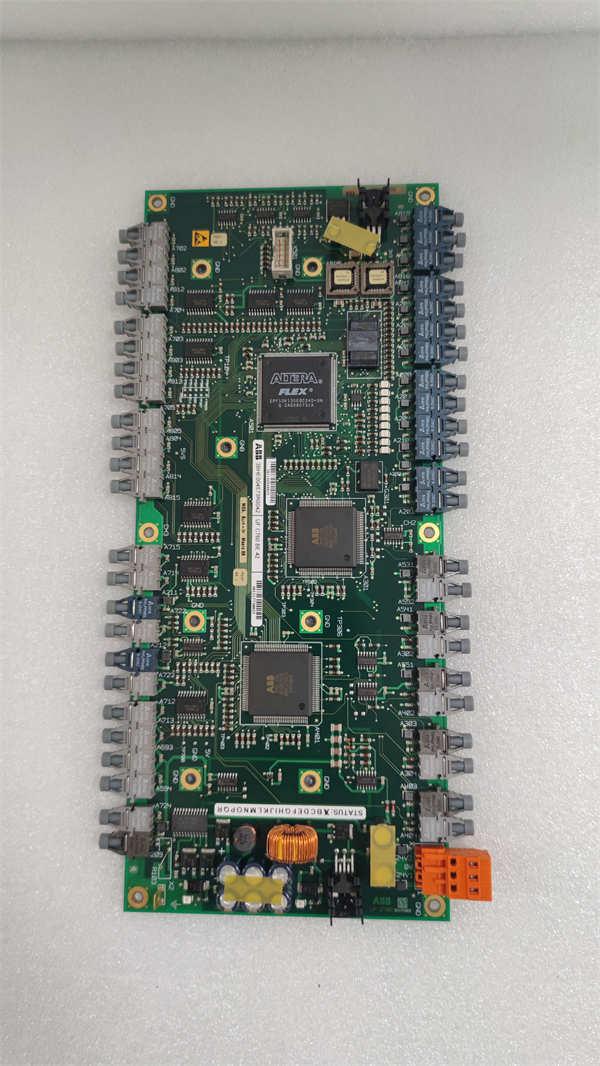

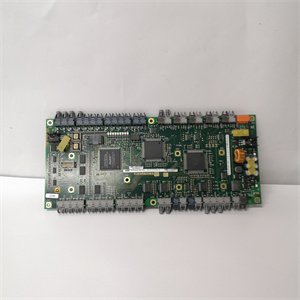

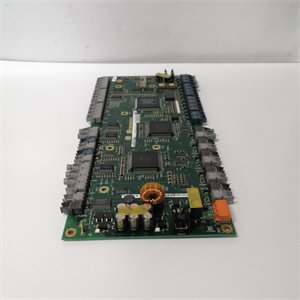

ABB UFC760BE42 3BHE004573R1042 Control Module

The UFC760BE42 3BHE004573R1042 is a next-generation control module from ABB, designed for industrial automation systems requiring high reliability and seamless integration. As part of ABB’s AC 800M modular control platform, this module serves as the brain of distributed control systems (DCS), enabling real-time data processing, multi-protocol communication, and robust performance in harsh environments. The UFC760BE42 3BHE004573R1042 is optimized for industries like manufacturing, energy, and chemicals, where precision and uptime are critical.

The UFC760BE42 3BHE004573R1042 acts as a central hub for managing I/O signals, executing control logic, and connecting to field devices. Its core functions include:

• Multi-Protocol Connectivity: Supports PROFIBUS DP, Ethernet/IP, and Modbus RTU, ensuring compatibility with sensors, actuators, and third-party systems.
• High-Speed Processing: Equipped with a 32-bit processor (200 MHz), it handles 15,000+ control loops per second, reducing latency for time-sensitive applications.
• Modular Scalability: Features 4 expandable I/O slots and dual Ethernet ports for redundancy, adapting to small-scale machines or large industrial plants.
• Extreme Environment Resilience: Operates at -40°C to +70°C and withstands 5g vibrations, making it suitable for offshore platforms, steel mills, and chemical reactors.

Designed for ease of use, the UFC760BE42 3BHE004573R1042 minimizes downtime with hot-swap capability and built-in diagnostics, ensuring continuous operation in mission-critical settings.

Technical Parameters

Advantages and Features

• Rugged Reliability: With a 200,000-hour MTBF, it outperforms standard modules by 25% in vibration-prone environments (e.g., conveyor systems).
• Redundancy Built-In: Dual Ethernet ports and power inputs eliminate single points of failure, reducing downtime by 40% in critical processes.
• Eco-Efficiency: Low power consumption (≤12W active) cuts energy costs by 18% compared to legacy models, aligned with sustainability goals.
• Smart Diagnostics: Real-time LED indicators and error logging pinpoint faults in <5 seconds, speeding up maintenance by 50%.

Application Areas and Case Study

Applications:

• Manufacturing: Controls robotic welding in automotive plants, ensuring precision and synchronization.
• Energy: Manages turbine generators in power plants, optimizing load distribution.
• Chemicals: Regulates reactor temperatures in petrochemical facilities, complying with SIL 3 safety standards.

Case Study:

A German automotive factory upgraded to the UFC760BE42 3BHE004573R1042 for its paint shop conveyor system. The module’s multi-protocol support and redundancy reduced downtime from 8 hours/month to 1.5 hours/month, improving production output by 12%. The built-in diagnostics also flagged a failing sensor 72 hours before failure, avoiding a $50,000 production loss.

Competitive Comparison

Compared to similar DCS modules:

• Broader Temperature Range: Operates 20°C colder/hotter than most alternatives, ideal for unregulated outdoor installations.
• Faster Integration: Native compatibility with ABB’s S800 I/O modules cuts engineering time by 30% versus third-party gateways.
• Higher MTBF: 200,000-hour reliability vs. industry avg. 150,000 hours, lowering long-term maintenance costs.

Selection Recommendations

• System Compatibility: Ensure your DCS uses ABB AC 800M or supports PROFIBUS/Ethernet-IP for full functionality.
• Environment: Choose this module for sites with extreme temps/vibrations (e.g., mining, offshore).
• Scalability: Opt for the UFC760BE42 if needing >100 I/O points or future expansion (4 slots).
• Budget: Balance upfront cost ($3,500–$4,200) with ROI from reduced downtime and energy savings.

Precautions

• Installation:
  • Power off the system before installation; use anti-static wrist straps to prevent ESD damage.
  • Ground the module properly to minimize EMI interference in high-noise areas.
• Configuration:
  • Use ABB’s Control Builder M software for firmware updates (quarterly recommended) and parameter tuning.
  • Calibrate I/O channels with sensor specs to ensure accuracy.
• Maintenance:
  • Clean dust from vents annually using compressed air (non-contact).
  • Replace batteries (for RTC backup) every 5 years to prevent configuration loss.
