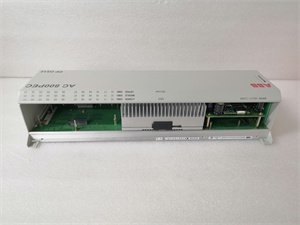

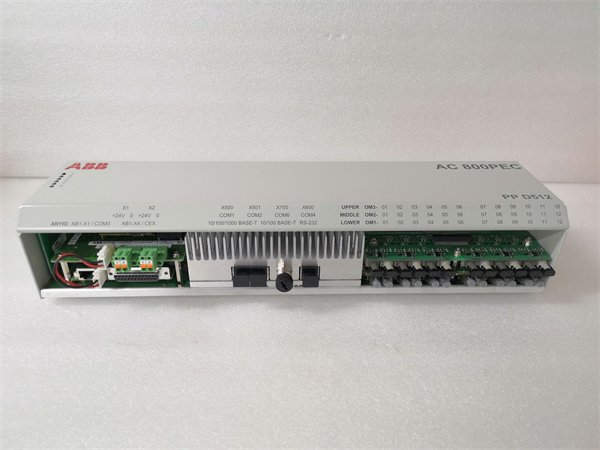

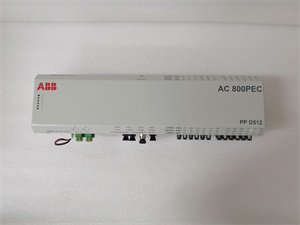

ABB PPD512A10-454000 3BHE040375R103E Power distribution module

The ABB PPD512A10-454000 3BHE040375R103E is a versatile power distribution module designed to provide centralized, protected power distribution for industrial control systems. As a key component in ABB’s power management portfolio, ABB PPD512A10-454000 3BHE040375R103E integrates both 24 V DC regulated outputs and 230 V AC unregulated outputs, enabling efficient power distribution to diverse components such as PLCs, HMIs, sensors, and actuators in automation cabinets.

ABB PPD512A10-454000 3BHE040375R103E features 12 individually protected 24 V DC circuits and 8 fused 230 V AC circuits, ensuring localized fault isolation to prevent system-wide power disruptions. Its robust design, including per-circuit overcurrent protection and wide temperature tolerance, makes it suitable for harsh industrial environments, from manufacturing plants to process facilities. Whether used alongside drive auxiliary power units like the ABB 3ASC25H204 DAPU100 or coordinating with safety modules such as the UNC4672AV1, ABB PPD512A10-454000 3BHE040375R103E simplifies power system design, enhances reliability, and reduces troubleshooting time for control cabinet installations.

Detailed parameter table

Core advantages and technical highlights

Mixed output configuration: ABB PPD512A10-454000 3BHE040375R103E combines 12 x 24 V DC regulated outputs and 8 x 230 V AC outputs in a single module, eliminating the need for separate DC and AC distribution units. In a machine control cabinet, this allows powering of DC devices (e.g., RXIDK 2H digital input modules, CI627A communication interfaces) and AC components (e.g., cooling fans, contactor coils) from one centralized unit, reducing cabinet space by up to 40% compared to discrete distribution systems.

Per-circuit protection: Each DC output circuit includes adjustable overcurrent protection (0.5-2 A), while AC circuits feature replaceable fuses (1-5 A), ensuring that a fault in one device (e.g., a shorted sensor) only affects its dedicated circuit without disrupting the entire system. In an automotive assembly line control cabinet, this isolation prevents a failed solenoid valve from taking down the entire HMI and PLC system, minimizing production downtime.

Regulated DC stability: The 24 V DC outputs maintain voltage within ±3% of nominal (23.3-24.7 V) across load variations from 10% to 100%, ensuring reliable operation of sensitive electronics like the XVC517AE10 HMI and UNC4672AV1 safety module. Low output ripple (<100 mV peak-to-peak) prevents interference with communication modules, ensuring stable data transmission in PROFIBUS or Ethernet networks.

Efficient fault diagnostics: Equipped with LED indicators for each circuit (powered: green, fault: red), ABB PPD512A10-454000 3BHE040375R103E enables quick visual identification of tripped circuits, reducing troubleshooting time from hours to minutes. In a food processing plant’s control cabinet, maintenance technicians can immediately pinpoint a tripped DC circuit powering a jammed sensor, speeding repairs and minimizing production delays.

Typical application scenarios

In a pharmaceutical packaging line control cabinet, ABB PPD512A10-454000 3BHE040375R103E distributes power to 10 DC devices (including PM633 PLC, DSAO120 analog output modules, and photoelectric sensors) via its 24 V circuits, and 6 AC components (including conveyor motors, heating elements, and cabinet lights) through its 230 V outputs. When a sensor shorts, the module’s per-circuit protection trips only that DC circuit, allowing the PLC and other sensors to continue operating—preventing a line shutdown. Its regulated DC outputs ensure consistent performance of the packaging machine’s precision control systems, maintaining product quality.

In a water treatment plant’s pump station control room, ABB PPD512A10-454000 3BHE040375R103E works alongside the 3ASC25H204 DAPU100 to manage power distribution. The DAPU100 supplies bulk 24 V DC to the PPD512A10-454000, which then distributes protected power to the GCD207B101 generator controller, RXIDK 2H input modules (monitoring pump status), and valve positioners. The AC circuits power the XVC517AE10 HMI and alarm sirens. During a voltage surge, the module’s overvoltage protection activates, safeguarding sensitive equipment and preventing damage to the pump control system.

Installation, commissioning and maintenance instructions

Installation preparation: Mount ABB PPD512A10-454000 3BHE040375R103E on a 35 mm DIN rail in a control cabinet, ensuring 100mm clearance above and below for ventilation. Connect 3-phase 400-480 V AC input using 2.5mm² cable, protected by a 16A circuit breaker. Configure DC circuit overcurrent settings (0.5-2 A) using the adjustment screws before connecting loads. Wire DC outputs to devices using 0.75mm² cable, and AC outputs with 1mm² cable, terminating at 200900-004 terminal blocks. Ground the module via the dedicated earth terminal. Use a torque screwdriver set to 1.2 Nm for all connections. Power off the input supply during installation.

Maintenance suggestions: Inspect ABB PPD512A10-454000 3BHE040375R103E quarterly for loose connections, dust accumulation, and LED status (power: green, circuit faults: red per channel). Clean ventilation slots with compressed air. Test DC regulation semi-annually by measuring output voltage under full load, ensuring it remains within 23.3-24.7 V. Verify overcurrent protection annually by simulating overloads on each DC circuit and confirming trip functionality. Replace fuses in AC circuits with ABB-approved ratings only. If regulation fails or protection features malfunction, replace the module with an ABB-certified unit to maintain safety compliance.
