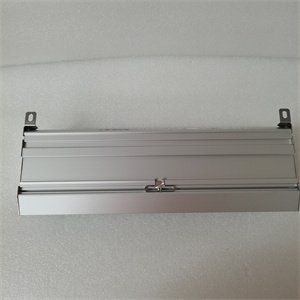

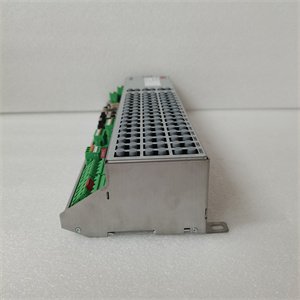

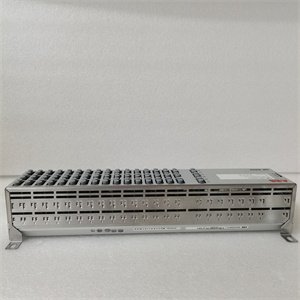

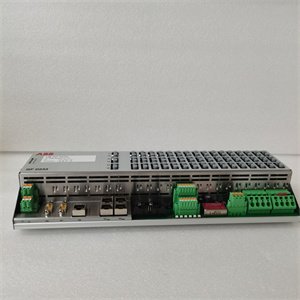

ABB GFD233A 3BHE022294R0103 Excitation Controller Module
Manufacturer: ABB
Product Number: GFD233A (3BHE022294R0103)
Category: Excitation Controller Module
System Compatibility: Generator excitation systems
Application: Precise control over generator excitation system ensuring accurate regulation of voltage, reactive power, and power factor
Product Description
The ABB GFD233A 3BHE022294R0103 is a high-performance excitation controller module specifically designed for generator excitation systems. It provides precise control over the generator’s excitation system, ensuring accurate regulation of voltage and current. The module supports various control modes, including constant voltage, constant current, and constant power factor control.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB GFD233A 3BHE022294R0103 |
| Manufacturer | ABB |
| Product category | Excitation Controller Module |
| Input voltage range | 24V DC or 220V AC (depending on application) |
| Output voltage range | 0-400V AC |
| Output current | 2.3A or 5A (depending on application) |
| Operating frequency | 50/60 Hz |
| Control modes | Constant voltage, constant current, constant power factor |
| Operating temperature | -20°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| Protection class | IP20 |
| Dimensions | 23 mm x 25 mm x 28 mm |
| Weight | 1.48 kg |
| Communication protocols | Ethernet, RS-232, CANopen, Modbus, Profibus |
| Certifications | CE, RoHS |
Core Advantages and Technical Highlights
High Integration: The module integrates core excitation control functions, including voltage and current regulation, power factor control, and protection functions.
Advanced Control Algorithms: Utilizes sophisticated control algorithms to optimize generator performance and ensure stable operation under various conditions.
Flexible Configuration: Offers flexibility in configuration, allowing users to adjust control parameters and protection settings to suit specific application needs.
Robust Protection: Incorporates comprehensive protection features, such as overcurrent, undervoltage, and overtemperature protection, to safeguard the generator.
Ease of Integration: Designed for seamless integration with other ABB generator control systems and devices, facilitating centralized monitoring and control.
Communication Interfaces: Typically equipped with standard communication interfaces (e.g., Modbus, Profibus), enabling data exchange with monitoring systems and energy management solutions.
Typical Application Scenarios
The ABB GFD233A 3BHE022294R0103 is widely used in various industrial sectors, including:
-
Power Generation: Stabilizing the output voltage of generators in thermal and hydroelectric power plants.
-
Grid Connection of New Energy: Optimizing the power output of wind and photovoltaic power stations to reduce power grid fluctuations.
-
Industrial Drive: Adjusting the excitation current to optimize the operation efficiency of large motors and reduce energy consumption.
-
Transportation: Controlling the excitation system of electric trains and ships.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB GFD233A 3BHE022294R0103, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB GFD233A 3BHE022294R0103, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
