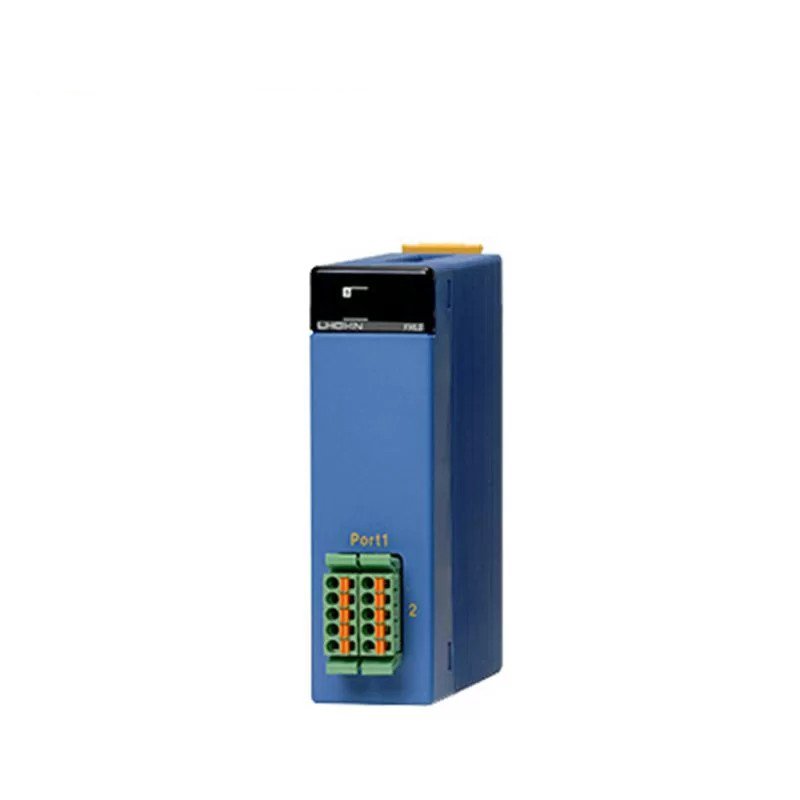

The Yokogawa F3LH01-1N is a high-speed link system (YHLS) master module. This module facilitates the construction of a 1-to-N remote I/O communication system. It offers a single communication port and enables easy implementation of a high-speed remote I/O system.

Key Features

High-speed communication: Connect up to 32 slave units to a single connector. This provides up to 2016 I/O points per port (1008 inputs and 1008 outputs).

Scalability: One master module can configure a remote I/O system with up to 4032 I/O points.

Flexibility: Each port has two connectors for bidirectional wiring.

Efficiency: Achieve a scan time of 0.96 ms when connecting 63 slave units at 12 Mbps in full-duplex mode.

User-friendly: Hide complex communication protocols during configuration.

Technical Specifications

Communication interface: YHLS

Number of ports: 1

Number of slave units per port: Up to 32

Number of I/O points per port: Up to 2016

Total number of I/O points: Up to 4032

Communication speed: Up to 12 Mbps

Scan time: 0.96 ms (63 slave units at 12 Mbps)

Operating temperature: 0 to 55°C

Power supply: 24 VDC

Applications

The Yokogawa F3LH01-1N is ideal for a wide range of applications, including:

Process automation: Monitor and control industrial processes.

Machine automation: Control and monitor machines and equipment.

Building automation: Control and monitor HVAC systems, lighting, and other building systems.
