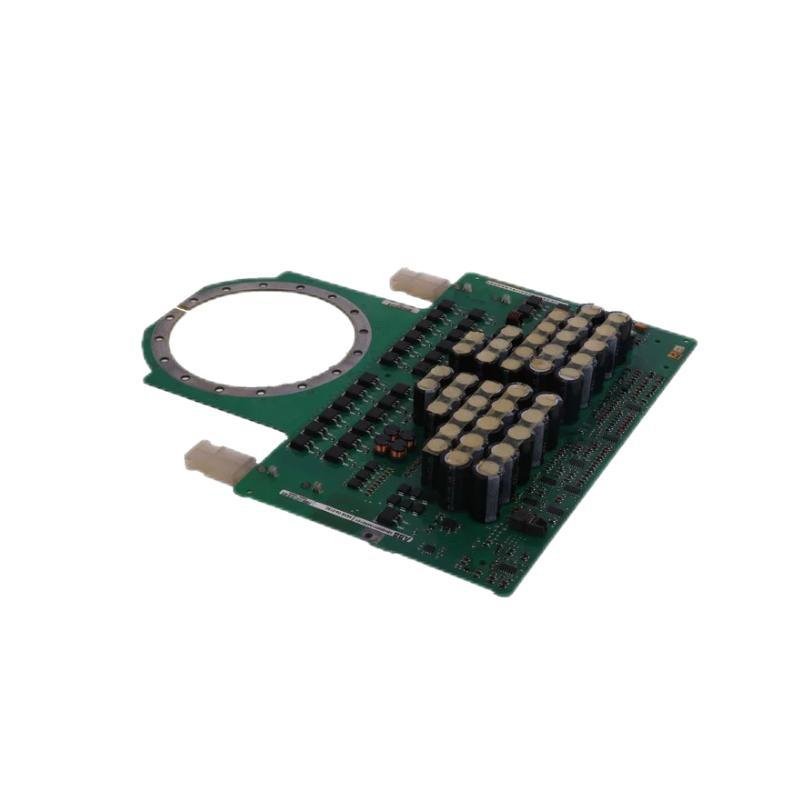

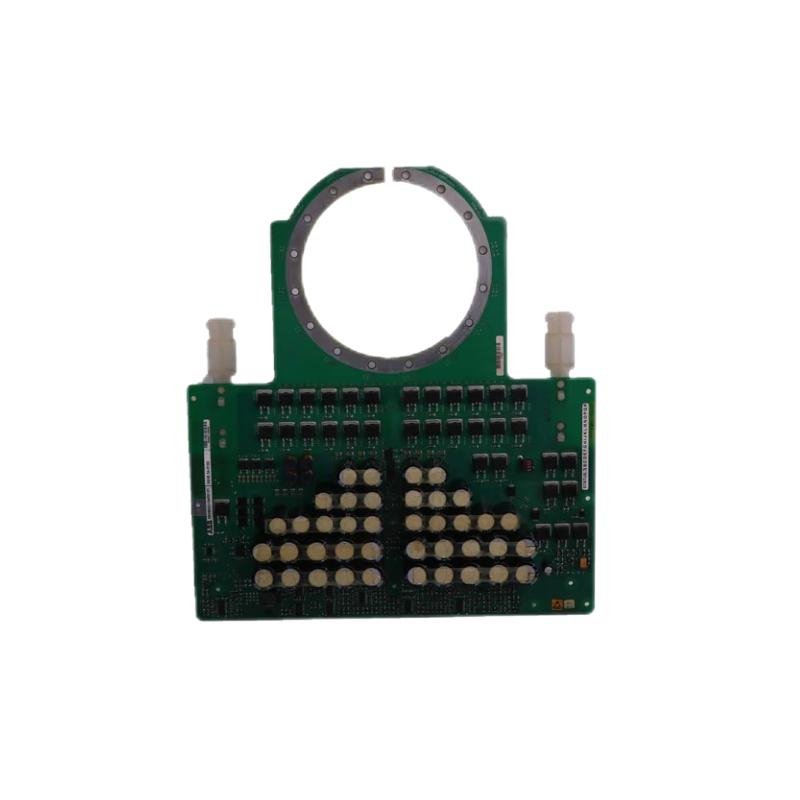

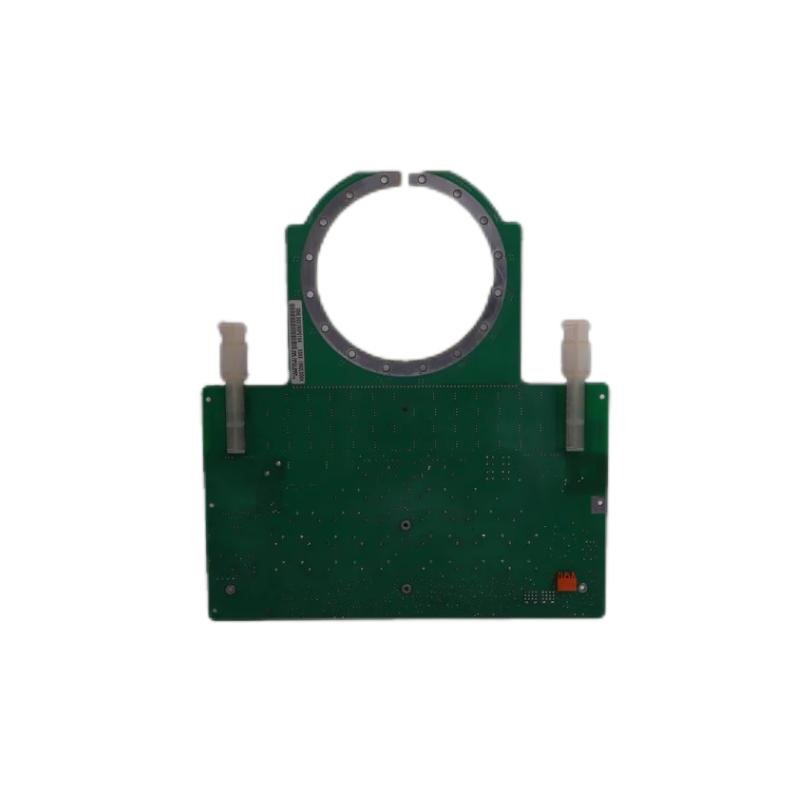

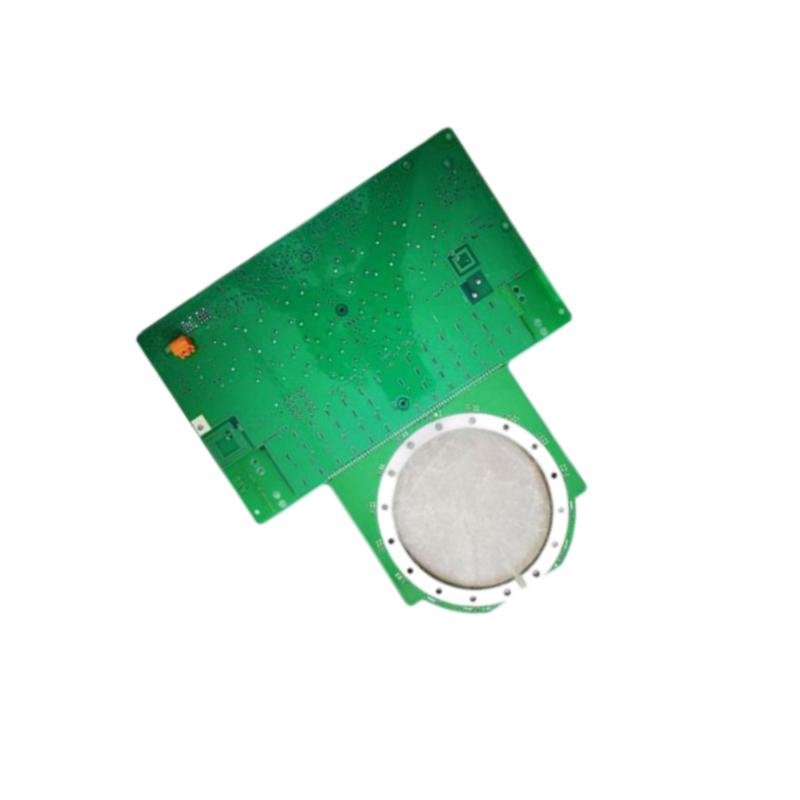

ABB 5SHX1960L0004 3BHL000390P0104 IGCT Modules
Manufacturer: ABB
Product Number: 5SHX1960L0004 (3BHL000390P0104)
Category: IGCT Module
Voltage Rating: 4500V (typical)
Current Rating: 1960A
Technology: Integrated Gate-Commutated Thyristor
Application: HVDC transmission, high-power industrial drives
Product Description
The ABB 5SHX1960L0004 3BHL000390P0104 IGCT (Integrated Gate-Commutated Thyristor) module is a high-performance power electronic switch designed for high-current and high-power applications. It is widely used in high-voltage direct current (HVDC) transmission, medium-voltage drives (MV Drives), flexible AC transmission systems (FACTS), and other power systems that require high current and power. The module combines the advantages of thyristors and gate turn-off thyristors (GTOs), offering low conduction losses and short turn-off times, significantly improving power system efficiency and response speed.
This module incorporates ABB’s leading IGCT technology and packaging design, ensuring high reliability and stability. It is ideal for large-power power conversion applications. Its excellent electrical performance and superior heat dissipation capabilities make this IGCT module a versatile and reliable choice for demanding industrial power systems.
Key Features
-
High Voltage Endurance: The module can handle high voltage while ensuring stable and reliable system performance.
-
Low Conduction Loss: The optimized design reduces conduction losses, enhancing overall system efficiency.
-
Fast Turn-Off Characteristics: With a short turn-off time, it is suitable for high-speed switching and frequent control applications.
-
High Current Handling: The module supports high current loads, making it ideal for high-power density environments.
-
Integrated Gate Drive: The built-in gate drive circuit simplifies peripheral circuit design, enhancing system reliability and stability.
-
Efficient Heat Dissipation: Advanced thermal management design ensures stable operation during high-power use, extending module life.
Technical Specifications
Dimensions and Weight
| Item | Value |
|---|---|
| Diameter | 250mm × 150mm × 100mm |
| Weight | 0.55kg |
General Information
| Item | Value |
|---|---|
| Model | 5SHX1960L0004 3BHL000390P0104 |
| Manufacturer | ABB |
| Component Type | IGCT (Integrated Gate-Commutated Thyristor) |
| Applications | HVDC, MV Drives, FACTS, Motor Drives |
| Insulation Voltage | Up to 7500V |
Electrical Performance
| Item | Value |
|---|---|
| Rated Voltage | 5000V |
| Rated Current | 4000A |
| On-State Voltage Drop | ≤ 2.3V |
| Turn-Off Time | ≤ 15 μs |
| Gate Trigger Current | 25A |
| Turn-Off Loss | Low-loss design for enhanced efficiency |
| Overload Protection | Yes |
Industry Applications
The ABB 5SHX1960L0004 3BHL000390P0104 IGCT module is widely used in the following applications:
-
High-Voltage Direct Current (HVDC) Transmission: Used in HVDC converter valves for power conversion, optimizing long-distance power transmission efficiency.
-
Medium-Voltage Drives (MV Drives): Provides stable and efficient power conversion for medium-voltage motor drive systems, widely used in industrial automation.
-
Flexible AC Transmission Systems (FACTS): Enhances the stability, flexibility, and adjustability of power systems.
-
Railway Traction: Applied in railway traction systems, improving power density and stability of the train drive systems.
-
Wind and Solar Power: Used in renewable energy systems such as wind and solar power for efficient power conversion, improving energy utilization.
The ABB 5SHX1960L0004 3BHL000390P0104 IGCT module is an essential component for modern high-power electrical systems, offering exceptional electrical characteristics, high reliability, and stability in demanding applications.
