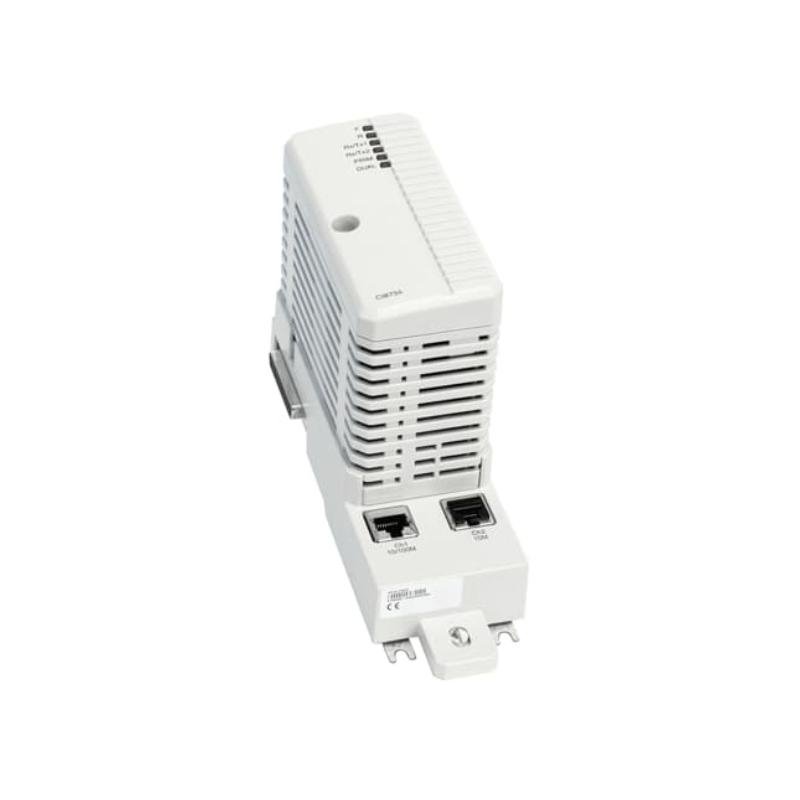

ABB CI873A 3BSE092695R1 AC 800M Communication Interface Module
Manufacturer: ABB
Product Number: CI873A (3BSE092695R1)
Category: AC 800M Communication Interface Module
Protocol: EtherNet/IP
System Compatibility: ABB System 800xA
Function: Supports EtherNet/IP protocol to connect external Ethernet devices to the AC 800M control system
Product Description
The ABB CI873A 3BSE092695R1 AC 800M Communication Interface Module is a high-performance communication module designed for the System 800xA, supporting EtherNet/IP protocol to connect external Ethernet devices. The module supports the connection of up to 12 devices through the CEX-Bus and ensures reliable communication services in various system configurations. The CI873A provides flexibility and scalability, supporting hot-swap operations and module redundancy to enhance system availability.
Key Features
- Supports EtherNet/IP and DeviceNet protocols: Seamlessly connects with a wide range of external devices, supporting various industrial communication needs.
- Module Redundancy: Supports up to 6 redundant pairs of CI873A modules starting from version 5.1 FP4, enhancing system reliability and fault tolerance.
- High Transmission Speed: Supports 10/100Mbps transmission speeds, suitable for various industrial communication requirements.
- Hot Swap Support: Allows replacement or upgrades without system downtime, improving system maintenance efficiency.
- Strong Environmental Adaptability: Operates reliably in harsh environments with a wide temperature range and strong humidity resistance.
Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Width | 59 mm |
| Height | 185 mm |
| Depth | 127.5 mm |
| Weight | 0.7 kg |
General Information
| Parameter | Value |
| Model Number | ABB CI873A 3BSE092695R1 |
| Communication Protocol | EtherNet/IP / DeviceNet |
| Master/Slave | Master |
| Transmission Speed | 10/100 Mbps |
| Module Redundancy | Yes (supports up to 6 redundant pairs) |
| Hot Swap | Yes |
| Max Units on CEX Bus | 12 |
| Connector Type | RJ-45 female (8-pin) |
| 24V Current Consumption | Typical 160 mA |
| Used with HI Controller | Yes |
Environmental and Certification
| Parameter | Value |
| Operating Temperature | +5°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Altitude | 2000 m maximum |
| Pollution Degree | Degree 2 (IEC/EN 61131-2) |
| Corrosion Protection | G3 (ISA 71.04) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 (EN 60529) |
| CE Marking | Yes |
Industry Applications
The ABB CI873A module is widely used in industrial automation systems where high performance and reliability are required, especially in System 800xA environments. Common applications include:
- Oil & Gas: Used to monitor and control remote devices, ensuring the stability of energy extraction processes.
- Chemical & Pharmaceutical: For data acquisition and equipment management in high-precision production controls.
- Automotive Manufacturing: Provides automation solutions for workshop management, ensuring efficient production line operations.
- Food & Beverage: Seamlessly connects with production equipment for intelligent production line management and optimization.
