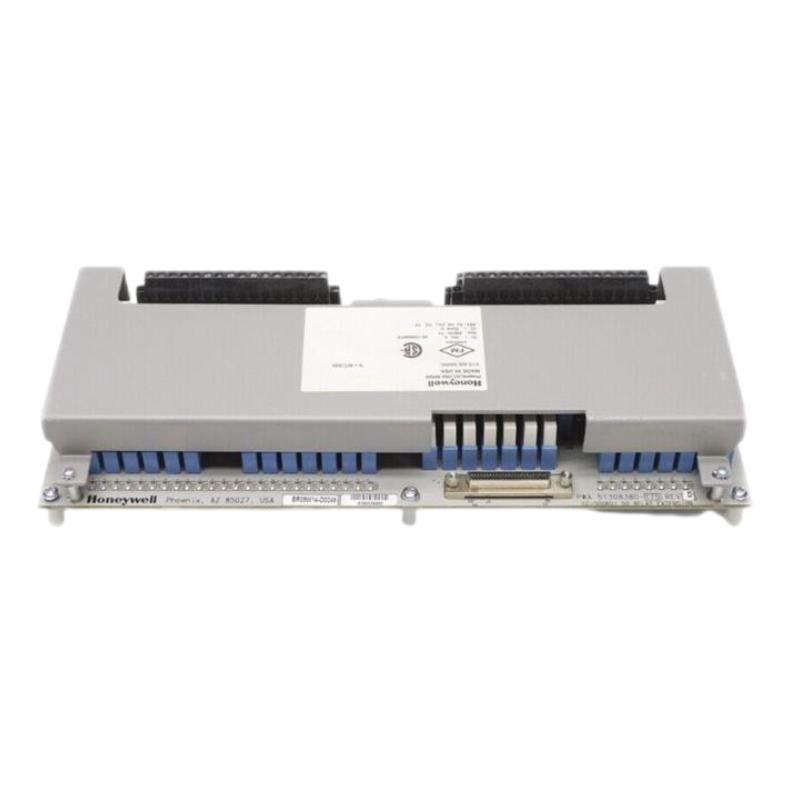

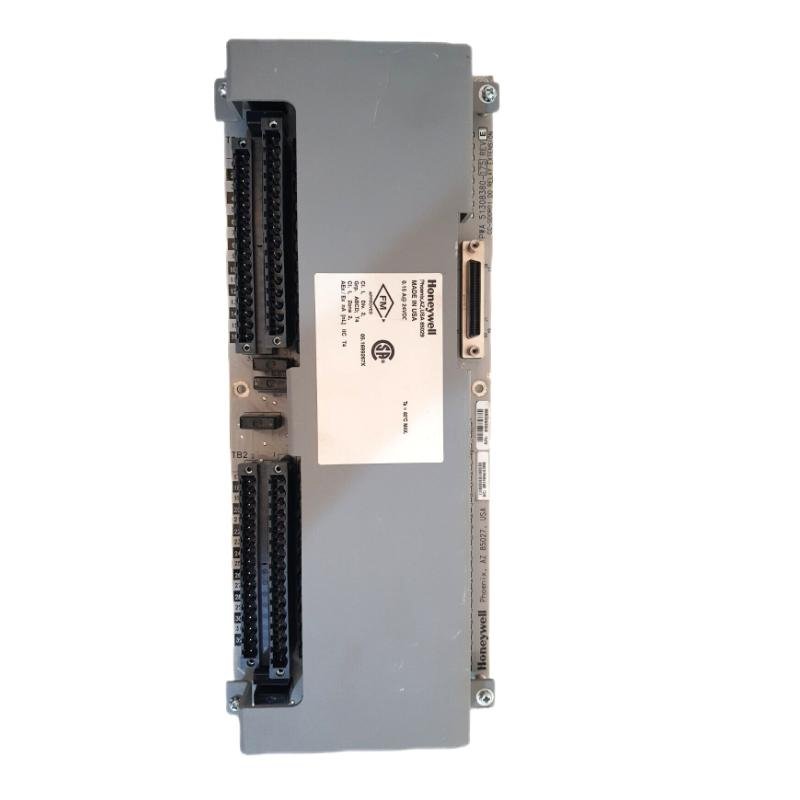

Honeywell CC-SDOR01 51308380-175 Digital Output Relay Extension Module
Manufacturer: Honeywell
Product Number: CC-SDOR01 (51308380-175)
Category: Digital Output Relay Extension Module (Experion Series C I/O)
Output Type: Isolated dry contact outputs
System Compatibility: Honeywell Experion Series C I/O system
Application: Controlling process devices such as motors, solenoids, and alarms in industrial control applications
Product Description
The Honeywell CC-SDOR01 51308380-175 Digital Output Relay Extension Module is part of the Experion® Series C I/O system and is designed for industrial control applications. It provides reliable, isolated dry contact outputs that control process equipment such as solenoid valves and interposing relays. The module supports both low voltage and high voltage/current discrete output applications, ensuring high reliability and operational flexibility.
Key Features
- High Reliability: Provides dry contact output for both low and high voltage/current applications.
- Selectable Contact Type: Supports NO (Normally Open) or NC (Normally Closed) contacts, selectable by jumper.
- Electromagnetic Interference Protection: Built-in features to ensure stable output, minimizing interference.
- Adjustable Contact Voltage: Maximum load voltage of 250VAC/125VDC to meet various control needs.
- Protection Circuitry: Includes overcurrent protection and counter-EMF snubber circuit for enhanced durability.
- LED Indicators: Each output channel has an LED indicator for easy monitoring of output status.
Technical Specifications
1. Dimensions and Weight
| Item | Specification |
| Dimensions | 192 ×140× 45 mm |
| Weight | 0.32 kg |
2. General Information
| Item | Specification |
| Model | Honeywell CC-SDOR01 51308380-175 |
| Output Type | Dry Contact (NO or NC) |
| Maximum Load Voltage | 250VAC / 125VDC |
| Maximum Load Current | 3A @ 125/250VAC (resistive), 2A @ 125/250VAC (inductive) |
| Contact Type | AgSnO2 |
| Isolation Voltage | 1500 VAC RMS or ±1500 VDC |
| Switching Time | Max 20 ms |
3. Additional Features & Protection
| Item | Specification |
| Reverse EMF Snubber Circuit | Absorbs reverse EMF |
| Current Limiting | Internal current-limiting protection |
| LED Indicator | Status LED on each channel |
| Contact Life | Mechanical: 5 million cycles, Electrical: 50,000 cycles (6A, 6 cycles/min) |
Industry Applications
- Industrial Automation: For controlling a variety of systems requiring isolated contacts and high voltage/current outputs.
- Energy Management Systems: For controlling high voltage devices in energy distribution and management systems.
- Oil & Gas: Used for remote control applications in pipelines and oil/gas processing facilities.
- Process Automation: Provides control outputs in process monitoring systems, ensuring stable operation.
