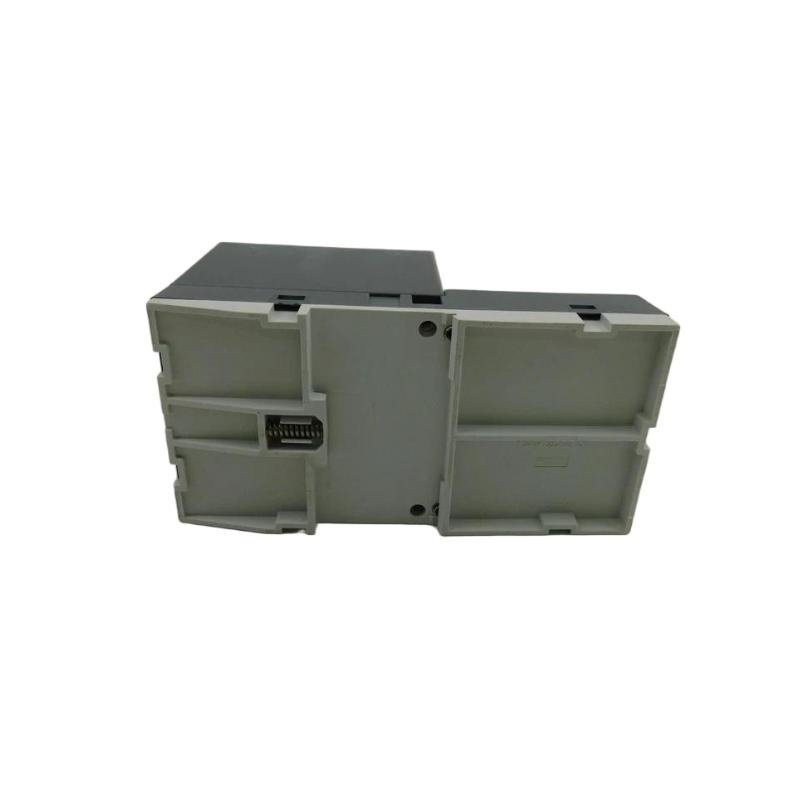

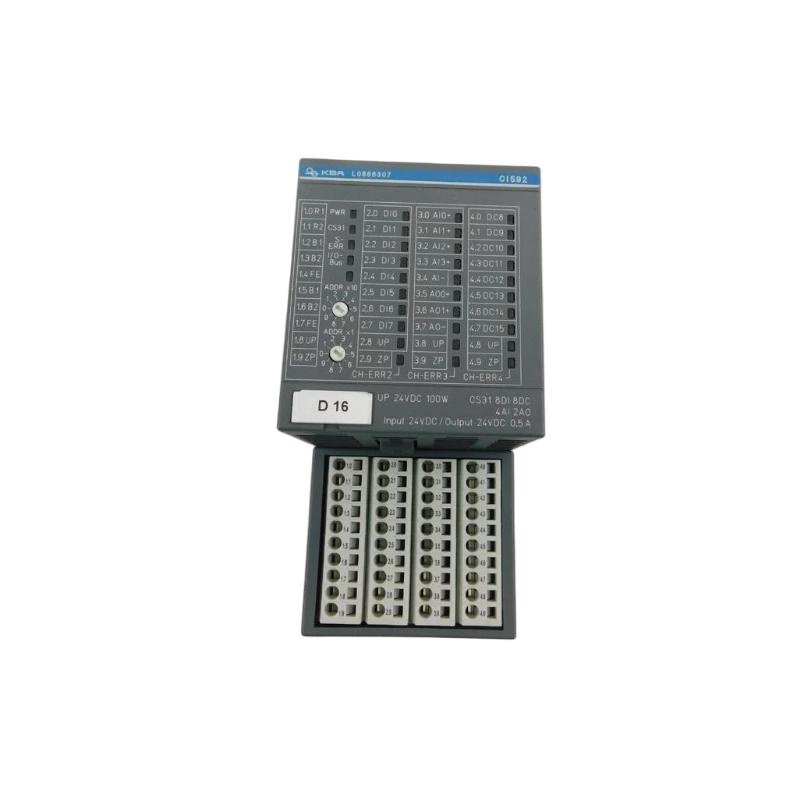

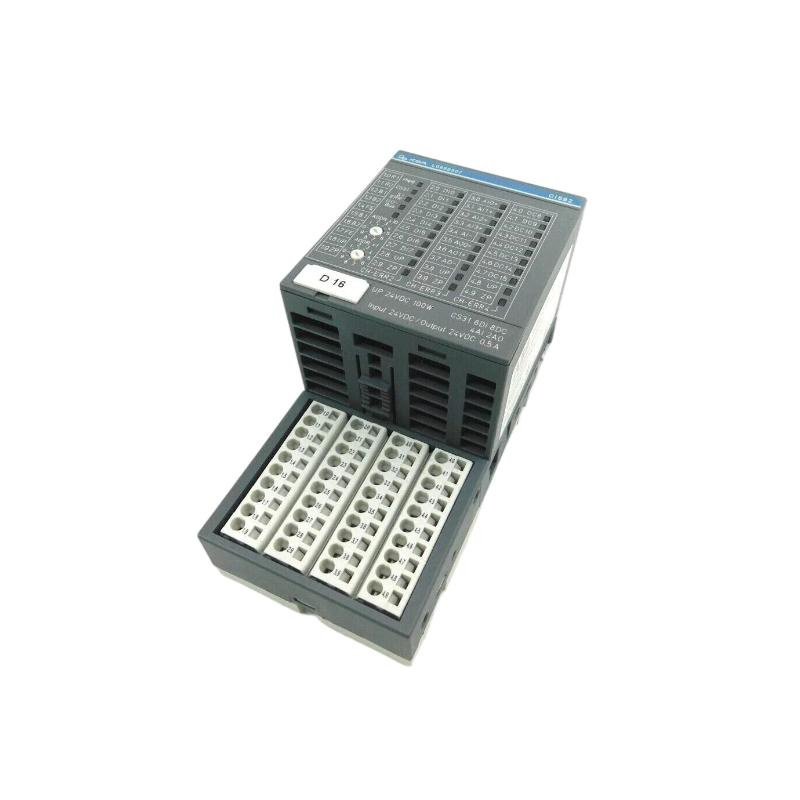

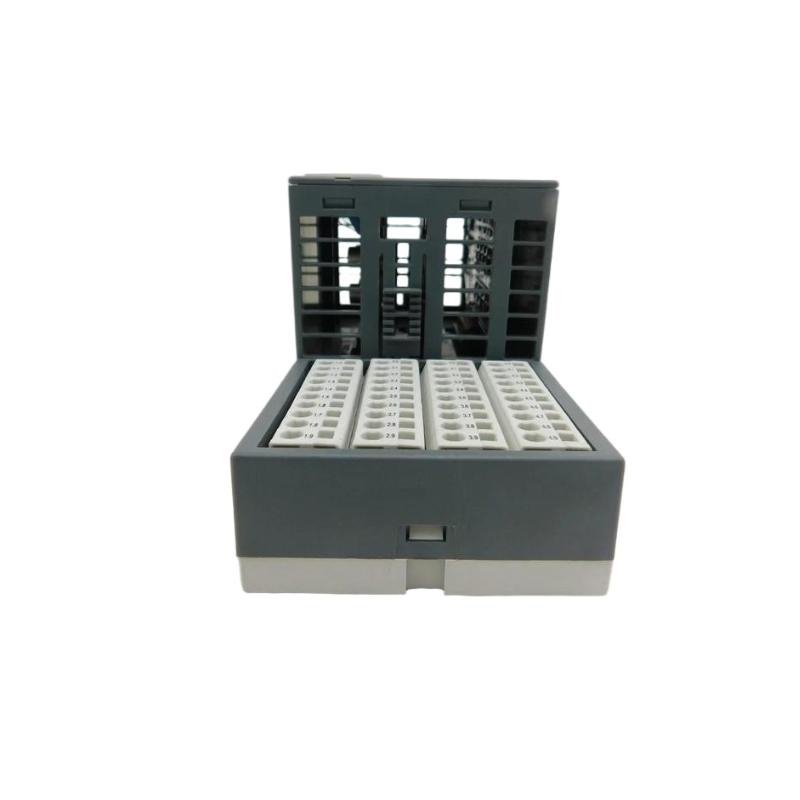

ABB CI592-CS31 1SAP221200R0001 Interface Modules
Manufacturer: ABB
Product Number: CI592-CS31 (1SAP221200R0001)
Category: Interface Module
Protocol: CS31 fieldbus
System Compatibility: ABB controllers and distributed I/O modules
Function: Acts as master on CS31 fieldbus for fast and reliable communication in decentralized automation systems
Product Description
The ABB CI592-CS31 1SAP221200R0001 is a CS31 interface module designed to facilitate fast and reliable communication between ABB controllers and distributed I/O modules in decentralized automation systems. It acts as a master on the CS31 fieldbus, enabling seamless connection between the AC500 series PLCs and CS31-compatible slave devices, such as digital and analog I/O modules.
With robust communication capabilities and compact construction, the CI592-CS31 module is an essential component for scalable, distributed control architectures. It enhances network flexibility and reduces wiring complexity in a wide range of industrial applications.
Key Features
-
CS31 Bus Master–Enables connection to up to 8 CS31 slave modules for distributed I/O control
-
High-Speed Communication–Operates at 187.5 kbps, ensuring fast data exchange in real-time control environments
-
Diagnostic LEDs–Provides clear visual feedback on module and communication status for easier troubleshooting
-
DIN-Rail Mounting–Simple and secure mounting in standard control cabinets
-
Compact Size–Saves panel space and simplifies integration into tight system layouts
-
Integrated Isolation–Electrical isolation between CS31 network and PLC system for enhanced safety
-
AC500 Series Compatible–Fully supports ABB’s AC500 PLC platforms, ensuring seamless system operation
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.125 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 VDC (via system power supply) |
| Power Consumption | < 2 W |
| Interface Type | RS-485 (CS31 fieldbus) |
| Transmission Rate | 187.5 kbps |
| Max Slave Devices | 8 |
| Bus Cable Length | Max 500 m (with shielded twisted pair) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Protection Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Controllers | ABB AC500 series PLCs |
| Communication Protocol | CS31 fieldbus |
| Software Integration | Configurable via ABB Control Builder or Automation Builder |
Industry Applications
-
Manufacturing Automation–Supports distributed I/O control in complex assembly lines and factory automation
-
Building Automation–Enables decentralized device communication in HVAC and lighting control systems
-
Water & Wastewater–Facilitates remote sensor and actuator integration across treatment facilities
-
Power & Energy–Provides flexible communication for control modules in substations and power plants
-
Material Handling–Integrates conveyor and sorting system controls into a single network
The ABB CI592-CS31 1SAP221200R0001 Interface Module offers dependable and efficient fieldbus communication for distributed automation architectures. With its fast data transfer, robust design, and seamless integration with ABB AC500 controllers, it is a valuable solution for modern industrial systems requiring decentralized control and flexible I/O expansion.
