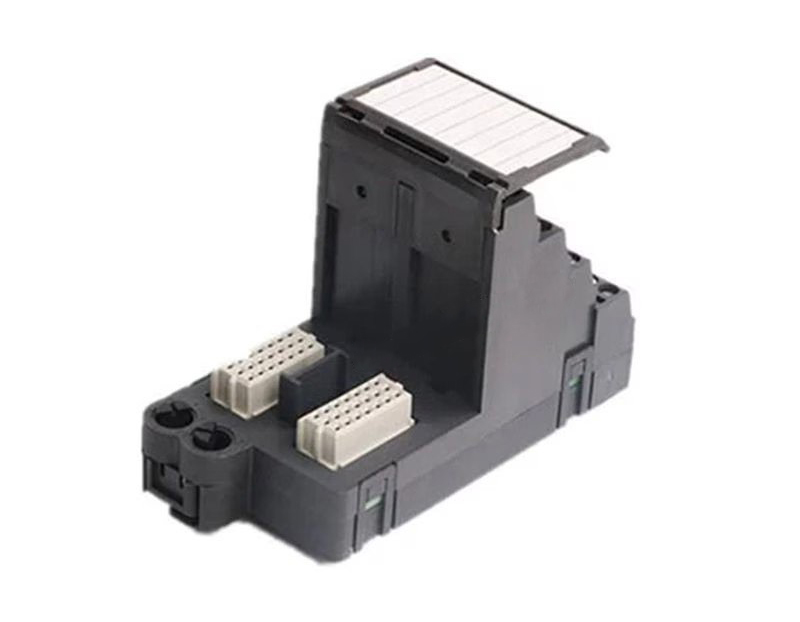

The Emerson KJ4006X1-BB1 is an 8-channel terminal block designed specifically for DeltaV S-Series I/O systems. It provides secure, reliable field wiring connections to ensure stable signal transmission. Additionally, its robust design and safety certifications make it ideal for use in hazardous industrial environments. The rotary keying system guarantees proper fit and compatibility with I/O cards, while its maintenance-free design simplifies operations.

Technical Specifications

• Channels: 8
• Power Supply:
  • 30 VDC at 100 mA for nL or ic installation
  • 60 VDC at 1.0 A for ec installation
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Shock Resistance: 10g, half sinewave for 11 milliseconds
• Vibration Tolerance:
  • 1 mm peak-to-peak from 2 to 13.2 Hz
  • 0.7g from 13.2 to 150 Hz
• Humidity: 5% to 95% non-condensing
• Airborne Contaminants: ISA-S71.04-1985 Class G3
• Safety Certifications: ATEX, IECEx, FM, UKEX for Zone 2 hazardous locations
• Mounting: Rack-mounted
• Keying System: Rotary keying for I/O card compatibility
• Maintenance: No user-serviceable parts, calibration not required
• Dimensions: 1.5 in x 3.8 in x 2.0 in (3.8 cm x 9.7 cm x 5.1 cm)
• Weight: 0.3 kg
