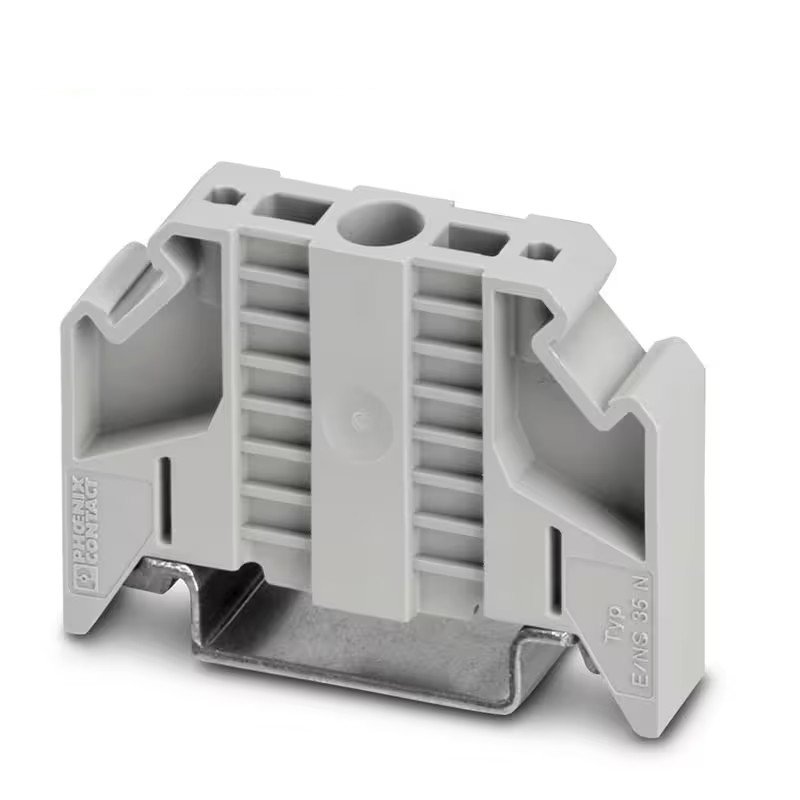

PHONEIX CONTACT E/NS35N End Clamp
Manufacturer: Phoenix Contact
Product Number: E/NS35N
Category: End Clamp / DIN Rail Accessory
System Platform: DIN Rail Mounting Systems
Function: Secures terminal blocks and modules on NS35 DIN rail
Application: DIN rail mounting, terminal block securing, control cabinet organization
Product Description
The E/NS35N end clamp by Phoenix Contact ensures secure terminal block connections in various industrial applications. It is designed to provide mechanical support and prevent wires from slipping, ensuring a safe and reliable electrical connection.
Technical Specifications
- Screw Thread: M3
- Tightening Torque: 0.5 to 0.8 Nm
- Material: PA (Polyamide)
- Flammability Rating: UL 94 V0
- Static Insulating Material: -60°C (cold conditions)
- Temperature Index:
- DIN EN 60216-1: 125°C
- UL 746 B: 130°C
- Ambient Temperature (Operating): -60°C to 105°C
- Ambient Temperature (Storage/Transport): -25°C to 60°C (short-term 70°C)
- Ambient Temperature (Assembly/Actuation): -5°C to 70°C
- Permissible Humidity (Storage/Transport): 30% to 70%
- Width: 9.5 mm
- Height: 48.6 mm
- Depth: 32.8 mm (34.3 mm on NS 35/7,5)
- Length: 48.6 mm
- Color: Gray (RAL 7042)
- Mounting Type: NS 35/7.5, NS 35/15
- Item Number: 0800886
- Packing Unit: 50 pieces
- Weight: 14.08 g per piece
- Customs Tariff Number: 39269097
- Country of Origin: Germany
