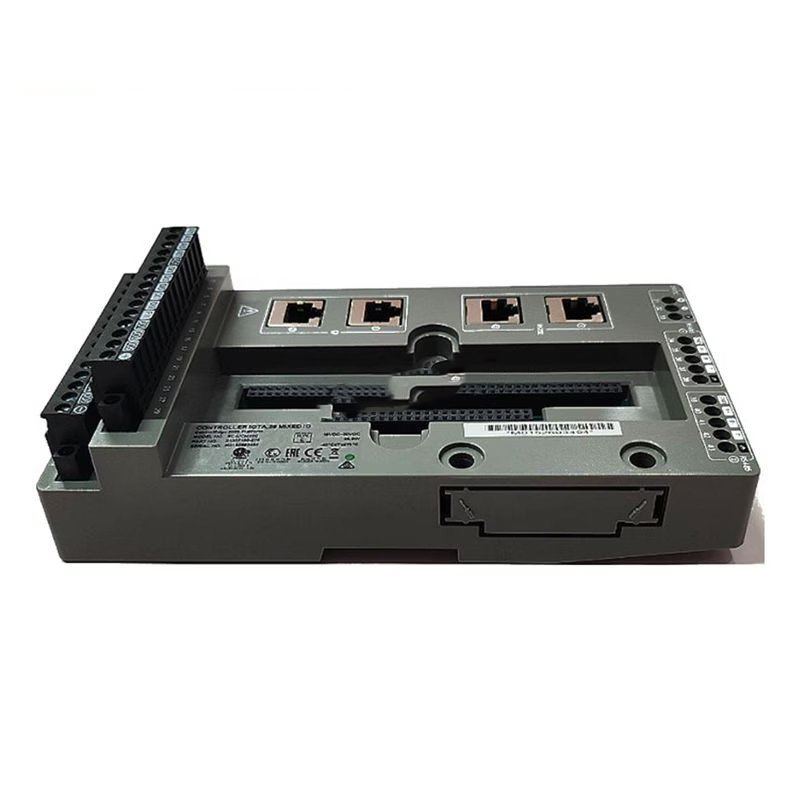

The Honeywell SC-UCMX02 51307198-276 is a non-redundant controller in the ControlEdge 2020 platform, designed for reliable industrial automation processing and communication.

Technical Specifications

Model Number: SC-UCMX02 51307198-276

Type: Non-redundant Controller

Manufacturer: Honeywell

Processor: Dual-Core ARM Cortex-A9 (32-bit) at 667 MHz

Memory and Power

• Memory:

  • 256 MB DRAM

  • 256 MB Flash

  • 4 Mbits Nonvolatile Memory

• Power Requirements:

  • 18 to 30 VDC

  • Maximum input current: 1.20 A at 30 VDC

I/O Capacity and Expansion

• I/O Capacity: 28 mixed onboard I/O channels

• Expansion Capability: Supports up to 30 expansion I/O modules

Communication Ports

• 2 RS485 ports

• 2 RS232 ports

• 4 Ethernet ports

• SD Card slot

Voltage and Frequency

• Operating Voltage: 24V DC / 120V AC

• Operating Frequency: 50/60 Hz

Environmental Conditions

• Operating Temperature: -40°C to +70°C

• Humidity: 0–95%, non-condensing
