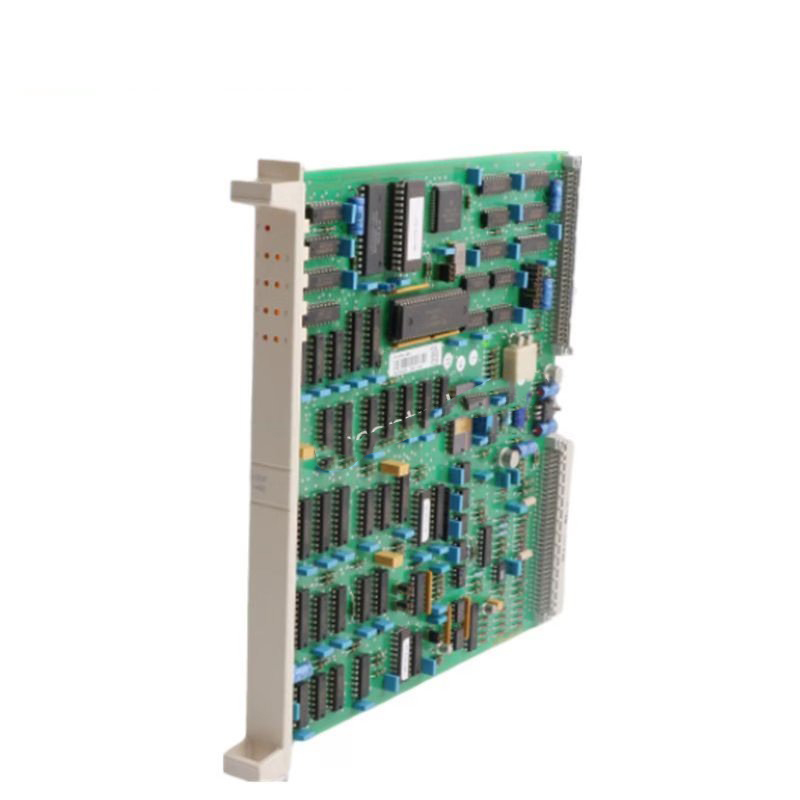

ABB 35ZP93B-E GJR5133200R0011 Industrial Module

The ABB 35ZP93B-E GJR5133200R0011 is a high-performance industrial module built for advanced automation and control. It integrates easily with ABB’s systems, ensuring robust operation and fast response in demanding environments. The module features reliable digital I/O channels, efficient power usage, and support for Modbus communication. With rugged environmental protection and built-in diagnostics, it ensures smooth, long-term operation.

Electrical Specifications

• Power Supply Voltage: 24 V DC ±10%

• Power Consumption: 4 W nominal

• Insulation Resistance: ≥ 100 MΩ @ 500 V DC

• Surge Protection: 1500 V (IEC 60255-5 compliant)

I/O Configuration

Digital Inputs:

• Channels: 16

• Input Voltage: 24 V DC

• Input Current: 5 mA per channel

• Input Impedance: 4.7 kΩ

• Isolation: 1000 V between I/O and logic

Digital Outputs:

• Channels: 16

• Output Type: Solid-state relay

• Voltage Range: 12–30 V DC

• Max Output Current: 0.5 A per channel

• Protection: Overvoltage and short-circuit

Communication

• Protocols: Modbus RTU (TCP/IP optional with add-on module)

• Interface: RS-485

• Baud Rate: 115200 bps

• Diagnostics: Built-in self-test, LED status indicators

Environmental Specifications

• Operating Temperature: -25°C to +70°C

• Storage Temperature: -40°C to +85°C

• Humidity: 10% to 95% RH, non-condensing
