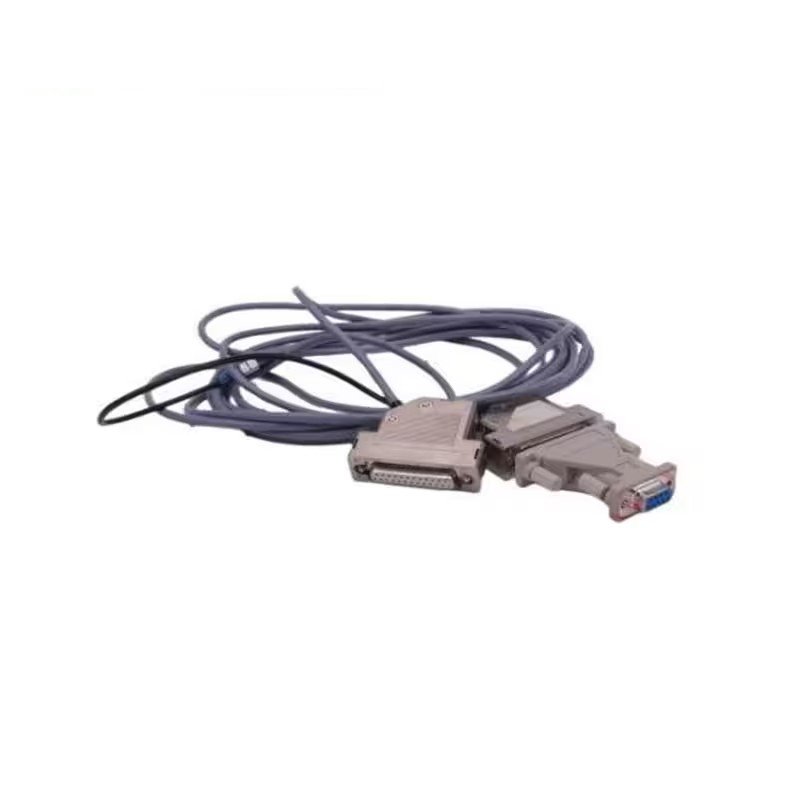

The ABB 07SK90R1 programming cable connects and programs various ABB devices and systems. ABB, a global leader in electrical solutions, designed this cable for optimal performance. Its 5-meter length ensures easy and flexible operation.

Intended Purpose

The 07SK90 cable connects a 9-pole interface of AC31 basic units or T200 communication processors to a peripheral unit. This connection supports programming or active mode (refer to 10.1.1 Survey table). If the peripheral has a 9-pole interface, the provided 25-pole-to-9-pole adapter ensures compatibility.

Mechanical Design

• Plug 1:
  • SUB-D, 9-pole male on the side of 07 KP 6x, 07 KR 91, 07 KT 9x
  • Metal-plated housing with shield connected to the metal plate
• Plug 2:
  • SUB-D, 25-pole female on the side of the peripheral unit
  • Both plugs secure to interfaces with screws

Cable Type

• Type: LICYCY 5 x 0.14/15
• Adapter: 25-pole male to 9-pole female, included for connecting peripherals with 9-pole interfaces

Technical Specifications

• Length: 5 m
• Weight: 220 g
• Order Number: GJR5 2502 00 R1
• Manufacturer: ABB
• Country of Origin: Sweden
• Condition: Original and brand new
• Stock: Typically available in stock
