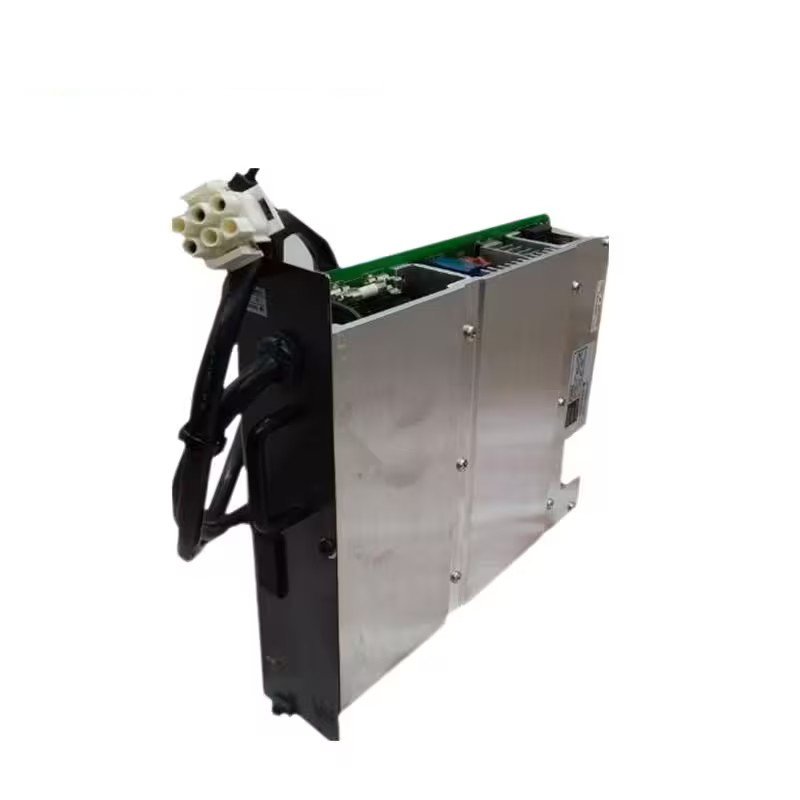

Yokogawa PW601 Power Supply Module

The Yokogawa PW601 is a 24 V DC output power supply, specifically designed to provide power to Fieldbus power supplies and digital modules within the FIO system. It is a key component in Yokogawa’s integrated production control systems, ensuring consistent and reliable power delivery to various field devices across multiple industries.

Technical Specifications

• Input Voltage:
  • 100 to 120 V AC or 220 to 240 V AC, 50/60 Hz
• Input Voltage Tolerance:
  • 90 to 132 V AC or 198 to 264 V AC
• Output Voltage:
  • 24 V DC ±5%
• Output Current:
  • 6 A (total of 1st output and 2nd output) at 0 to 50°C
  • 4 A (total of 1st output and 2nd output) at 50 to 60°C
• Withstanding Voltage:
  • 1500 V AC between input and FG terminal
• Environment Temperature:
  • 0 to 60°C
• READY Contact Output:
  • Two terminals (NC, C) to indicate power supply unit status
• Max Input Current Power Consumption:
  • 2.6 A, 220 VA
• Output Holdup Time:
  • 20 ms
• Indication:
  • Green READY LED lights up when normal operation is detected
• Weight:
  • 6 kg
