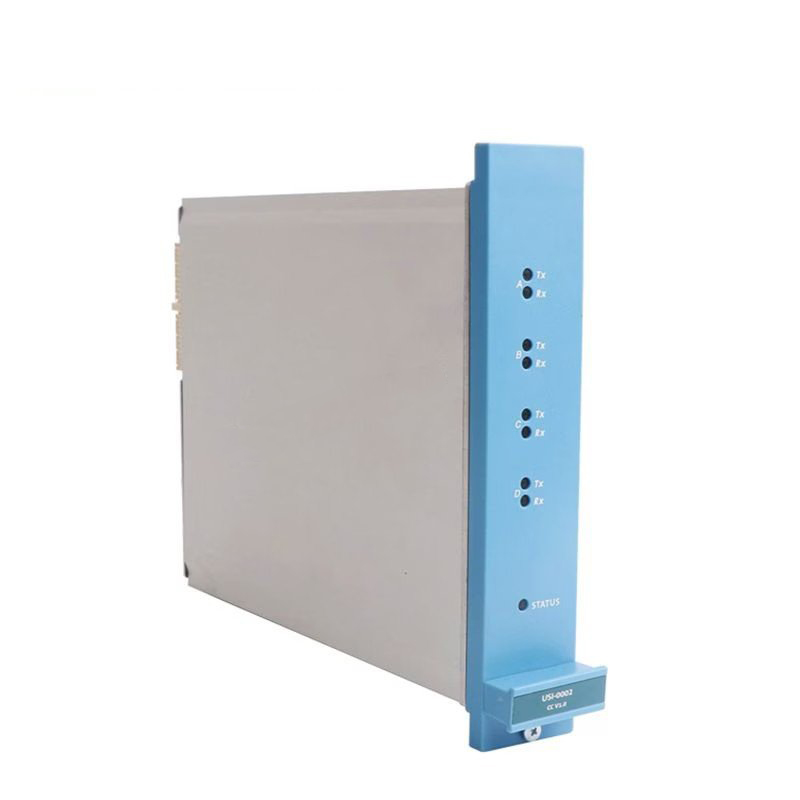

Honeywell FC-USI-0002 CC V2.0 Universal Safety Interface Module

The Honeywell FC-USI-0002 CC V2.0 is a Universal Safety Interface Module designed for Safety Manager systems. It ensures reliable communication between the Safety Manager and external devices. This enables efficient data exchange in industrial environments.

Technical Specifications

Product Type: Universal Safety Interface Module

Manufacturer: Honeywell

Model Number: FC-USI-0002 CC V2.0

Communication Channels

• Ethernet: Two ports, supporting 10/100 Mbps

• Serial: Two channels for RS-232/RS-485 communication

Memory

• Flash Memory: 8 MB for system and application programs

• Local SRAM: 8 MB with error detection and correction

• Shared RAM: 256 KB for data exchange with the Control Processor

Power Supply

• Operates on 24 VDC

• Current Consumption: Max 1.2 A

• Power Supply: 5 VDC ±5%

Environmental Specifications

• Operating Temperature: -20°C to +50°C

• Storage Temperature: -40°C to +70°C

• Relative Humidity: 10% to 95% (non-condensing)

Dimensions and Weight

• Size: 105 mm × 105 mm × 29 mm

• Weight: 0.8 kg
