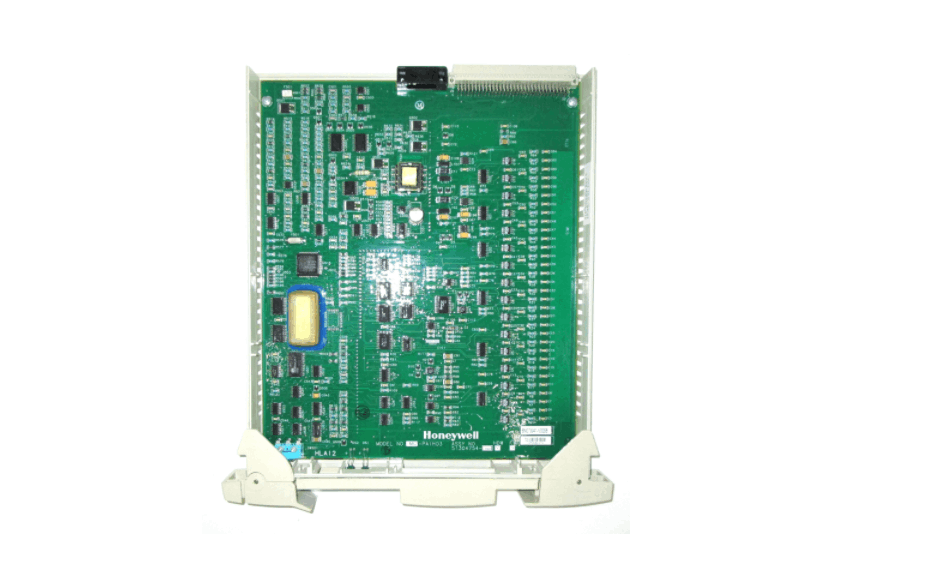

Honeywell MC-PAIH03 51304754-150 High Level Analog Input Processor

The Honeywell MC-PAIH03 51304754-150 is a high-performance, 16-input high level analog input processor module for use in industrial automation applications. It provides a wide range of features and benefits, including:

• 16 differential analog input channels
• Voltage or current input
• 2-wire or self-powered transmitters
• Isolated inputs for increased noise immunity
• High accuracy and repeatability
• Fast response time
• Modbus RTU communication
• DIN rail mounting

Technical Specifications

• Product type : MC-PAIH03 High Level Analog Input Processor-16 Inputs
• FTA Models: MU-TAIH02, TAIH12, TAIH52, TAIH03, TAIH13, TAIH23, TAIH53, TAIH22, TAIH62
• Input Type: Voltage, current (2-wire or self-powered transmitters)
• Input Channels : 16 differential input channels
• Common Mode Rejection Ratio, dc to 60 Hz (500 source imbalance): 70 dB
• Common Mode Voltage, dc to 60 Hz(1): -6 to +5 V peak
• A/D Converter Resolution: 16 bits (14 bits used)
• Input Range 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 )
• Normal Mode Rejection Ratio, at 60 Hz: 32 dB
• Normal Mode Filter Response : Single-pole RC, -3 dB @ 1 Hz
• Maximum Normal Mode Input(differential inputs, no damage): ± 30 Volts
• Crosstalk, dc to 60 Hz(channel-to-channel): 60 dB
• Input Impedance (Voltage Inputs): > 10 M powered
• Maximum Input Voltage(any input referenced to common, no damage): ± 30 Volts
• Input Scan Rate: 4 samples per second per channel.All channels sampled within a 250 ms window
• Hardware Accuracy (@ CMV = 0 V): ± 0.075% full-scale (23.5°± 2°C), ± 0.15% full-scale (0 to 50°C)
• Surge withstand capability (Common mode) ANSI/IEEE C37.90.1-1978
• Weight : 0.60 Kg
• Shipping Weight : 6 Kg
