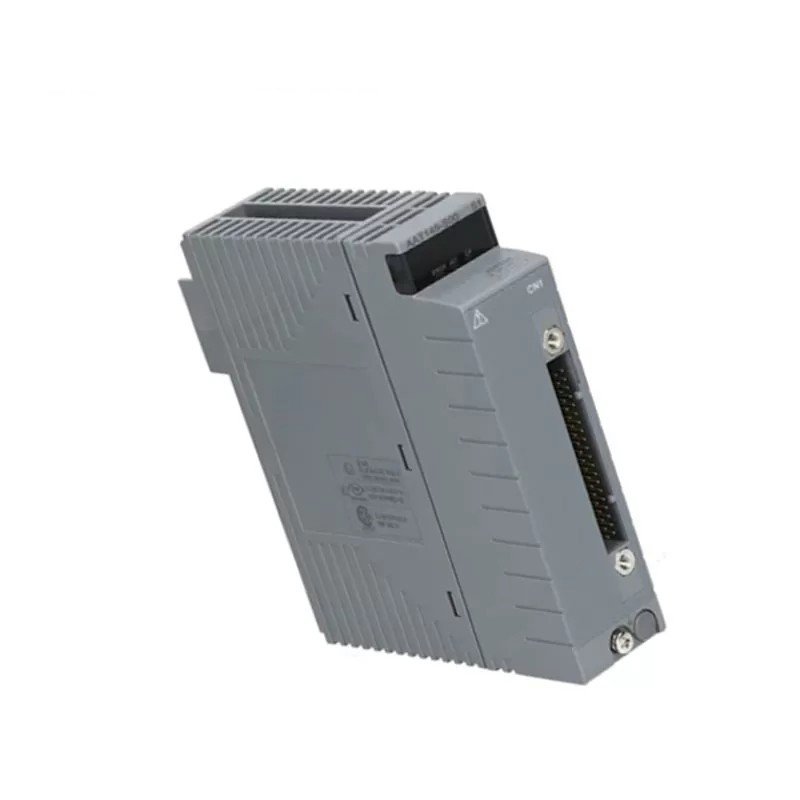

Yokogawa AAR145-S00 Input Module 16 Channel
Manufacturer: Yokogawa
Product Number: AAR145-S00 S1
Category: RTD/POT Input Module
Number of Channels: 16, isolated channels
Input Signal Types: RTD (JIS Pt100, IEC751 Pt100 3-wire), Potentiometer (100Ω to 10kΩ total resistance)
Channel Isolation: Fully isolated between field and system, and between each channel
Redundancy Support: Can be used in dual-redundant configuration
Input Selection: RTD/POT selectable individually for CH1 to CH16
Span Resistance: 50% or larger of total resistance
Dimensions: 3.3cm × 10.7cm × 13cm
Weight: 0.3 kg
System Compatibility: Yokogawa DCS systems
Product Description
The Yokogawa AAR145-S00 is a robust analog input module designed for industrial automation systems. It seamlessly integrates into Yokogawa’s Centum CS and Centum VP DCS platforms, providing accurate and reliable signal acquisition.
Key Features
- 16 Channels:Accommodates up to 16 analog input signals simultaneously, maximizing data collection efficiency.
- RTD/POT Compatibility:Supports both Resistance Temperature Detectors (RTDs) and Potentiometers, offering versatility for various temperature and position sensing applications.
- 4-20mA Input Range:Industry-standard current loop for easy integration with existing sensors and transmitters.
- Isolated Channels: Minimizes electrical noise interference, ensuring signal integrity and reliable data transmission.
Technical Specifications
- Allowable input voltage :±5 V ±5 V
- Withstanding voltage :Between input and system: 500 V AC (for single card: 1500 V AC), For 1 minute,Between input channels: 200 V AC, For 1 minute
- Input resistance Power ON: 1 MΩ or larger
- Power OFF: 1 MΩ or larger
