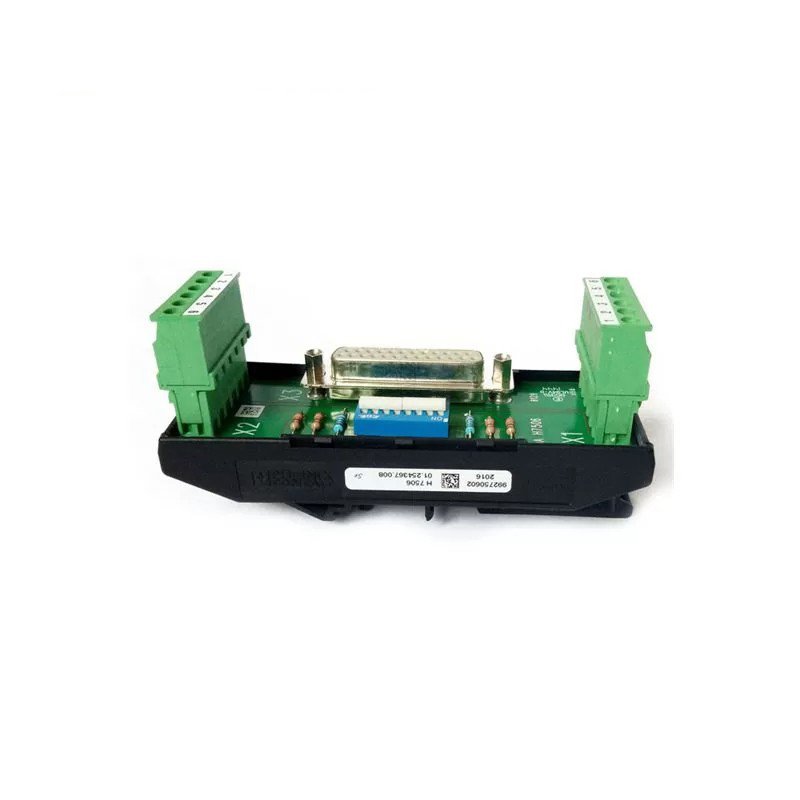

The H7506 is a bus terminal designed by HIMA for safe and reliable communication within industrial automation systems. It facilitates connection between programmable electronic systems (PES) and ensures data integrity in critical processes.

Key features:

• Connects single and redundant PES: The H7506 allows connection of both single-channel and redundant Process Electronic Systems (PES) like H41q and H51q.
• Secure data transmission: Utilizes a 2-wire bus for data transmission, ensuring reliable and secure communication within your industrial network.
• Simple installation: Designed for DIN rail mounting, enabling easy and space-saving integration into your existing control cabinet.

Technical Specifications:

• Dimensions: 5.1 cm x 12.7 cm x 5.1 cm (compact design)
• Weight: 0.5 kg (lightweight for easy handling)
• Connectors: 25-pole D-subminiature (D-sub) socket for PES connection and two 6-pole terminal blocks for bus connection.
• Origin: Germany (manufactured by HIMA)

Benefits for Industrial Automation:

• Enhances communication reliability: Ensures secure and error-free data transmission within your safety-critical processes.
• Simplifies system integration: Compact design and easy DIN rail mounting minimize space requirements and simplify installation.
• Supports redundant configurations: Enables connection of redundant PES for increased system availability and fault tolerance.
