Manufacturer:Yokogawa
Product Number:ADV551-P50/D5A00
Product Type:Digital Output Module
Origin:Japan
Dimensions:107.5 × 130 × 32.8 mm
Weight:0.2 kg
Views:33
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

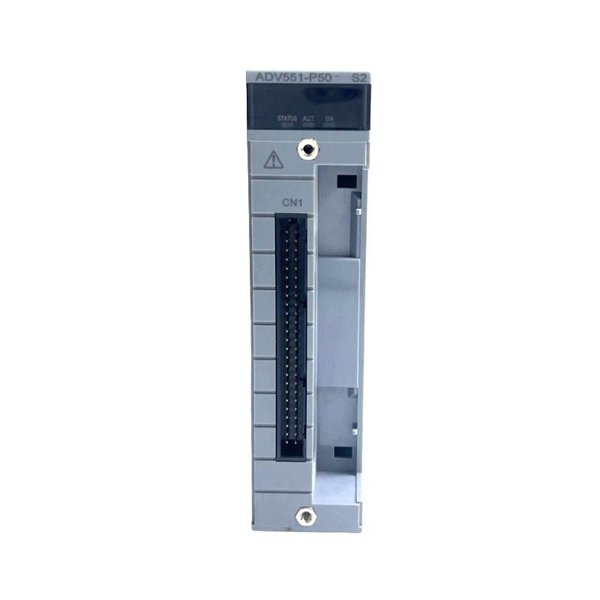

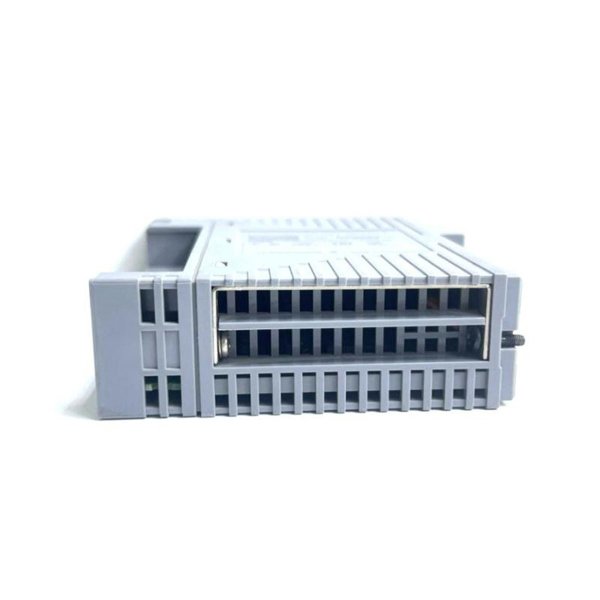

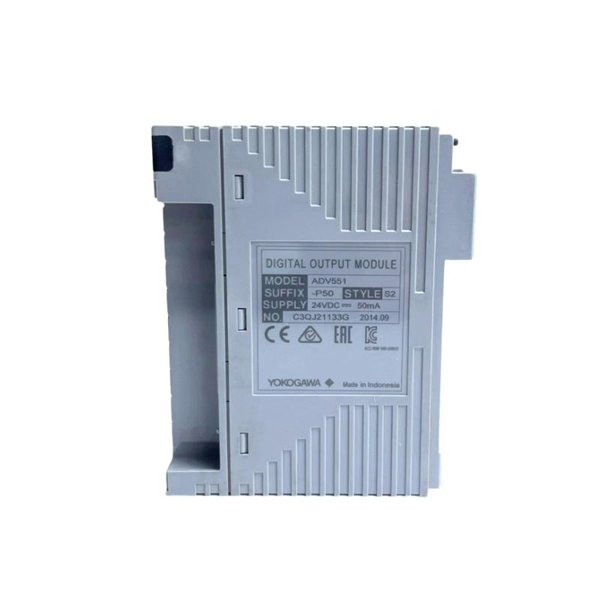

The Yokogawa ADV551-P50/D5A00 is a 32-channel digital output module designed for use in the Field Control Station (FCS) within the Yokogawa CENTUM VP distributed control system. It provides high-speed, reliable, and isolated transistor-type outputs for various industrial control applications. With support for current sink outputs, pulse width, and time-proportional control, it ensures flexible configuration options for controlling field devices.
| Parameter | Specification |
|---|---|
| Model | ADV551-P50/D5A00 |
| Number of Output Channels | 32 |
| Output Type | Transistor (Current sink) |
| Rated Output Voltage | 24 V DC |
| Voltage Range | 20.4 to 26.4 V DC |
| Maximum Load Current | 100 mA/channel |
| Output ON Voltage (max) | 2 V DC |
| Output OFF Leak Current (max) | 0.1 mA |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (ON/OFF delay up to 1 ms) |
| Output Response Time | ≤ 3 ms (status), ≤ 10 ms (pulse/status mix) |
| Functions Supported | Status output, Pulse width, Time-proportional output |
| Power Consumption (Internal) | 700 mA (5 V DC) |
| Power Consumption (External) | 60 mA (24 V DC) |
| Isolation | 2 kV AC (signal to system), 500 V AC (commons) |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| External Connection | Pressure clamp terminal, MIL/dedicated cable |
Distributed control in power plants and chemical industries
Actuator control in factory automation systems
Process output interfacing in refineries and utility plants
Sequence control systems with redundancy requirements
Control of relays, solenoids, and indicator devices
High Channel Density: 32 outputs in a compact module
Flexible Output Modes: Supports status, pulse width, and time-proportional outputs
Fast Response Time: Suitable for real-time control
Dual Redundancy Support: Enhanced reliability in mission-critical systems
Isolation Protection: Robust design with high-voltage isolation
Q1: What is the function of the ADV551-P50/D5A00 module?
A1: It outputs 32 channels of isolated 24 V DC digital signals with pulse width and time-proportional capabilities.
Q2: What kind of output configuration does it support?
A2: It uses a transistor-type current sink output suitable for driving relays and solenoids.
Q3: Is this module suitable for redundant system configurations?
A3: Yes, the ADV551 supports dual redundant installations for high reliability.
Q4: What is the maximum current per output channel?
A4: Each output can drive up to 100 mA at 26.4 V DC.
Q5: What type of isolation is provided?
A5: It provides 2 kV AC isolation between signal and system, and 500 V AC between commons.
Q6: Can this module be used for time-based control operations?
A6: Yes, it supports time-proportional output and one-shot pulse width control.
Q7: What external connections are supported?
A7: It supports pressure clamp terminal blocks, MIL connector cables, and dedicated interface cables.
Q8: What is the pulse width range and resolution?
A8: The range is from 8 ms to 7200 s with a resolution of 8 ms and maximum 1 ms delay.
Q9: What is the typical response time for the outputs?
A9: 3 ms or less for status output, and 10 ms or less for mixed output modes.
Q10: Is the module compliant with explosion-proof standards?
A10: Yes, suffix codes define explosion protection compatibility; /E or /F options apply.
