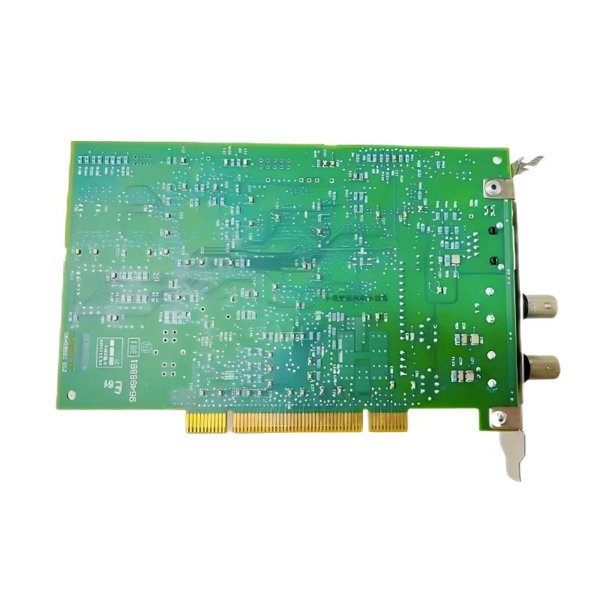

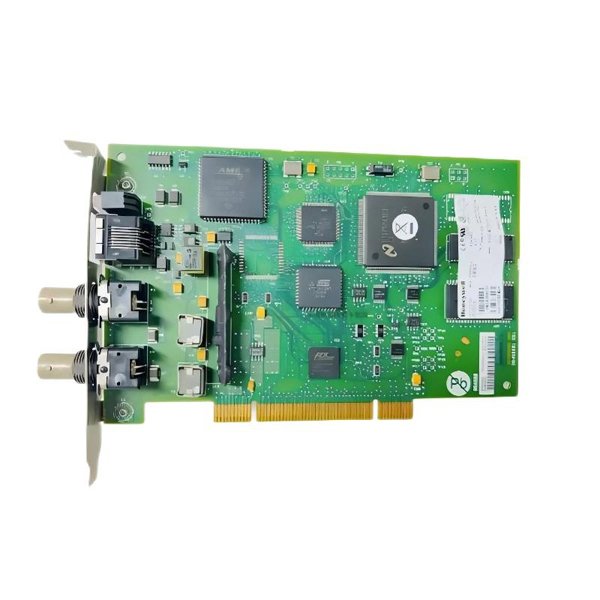

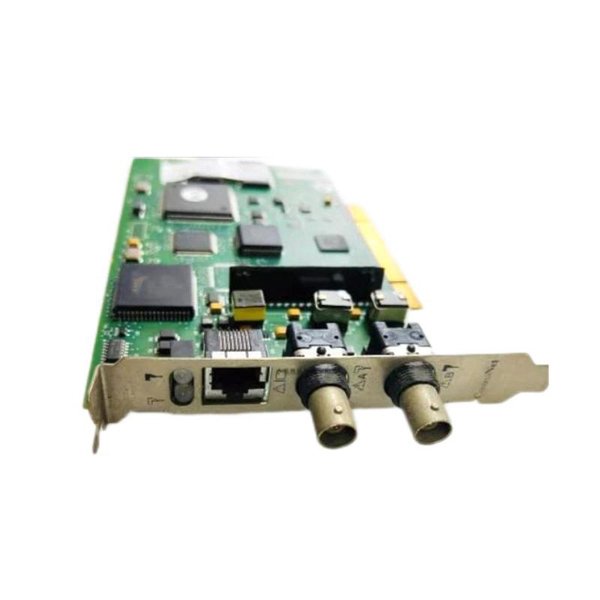

Honeywell TC-PCIC01K ControlNet Interface Module

The Honeywell TC-PCIC01K is a ControlNet interface module designed for use in industrial automation environments. It provides seamless communication between PC-based systems and Honeywell’s ControlNet network, enabling reliable, high-speed data exchange for critical control and monitoring applications. It is typically installed in a PCI bus of a host PC and is part of the Experion or legacy TDC control platforms.

Technical Specifications

Applications

• ControlNet communication integration for Honeywell Experion and legacy systems

• Real-time industrial data acquisition and control

• High-speed I/O subsystem interfacing

• Supervisory control and data acquisition (SCADA) systems

• Integration of PC-based software with distributed control systems

Key Advantages

• Easy installation into standard PCI slots

• Seamless communication on ControlNet networks

• Reliable data throughput for time-sensitive applications

• Supports both standard and redundant media configurations

• Compatible with Honeywell Experion and legacy platforms

• Long lifecycle support and availability of spare parts

FAQ (Frequently Asked Questions)

Q1: What is the TC-PCIC01K used for?

A1: It enables communication between a PC and Honeywell’s ControlNet network in automation systems.

Q2: Is the TC-PCIC01K compatible with redundant ControlNet setups?

A2: Yes, it supports both single and redundant ControlNet media configurations.

Q3: What systems is the TC-PCIC01K compatible with?

A3: It works with Honeywell Experion PKS and C200/C300 control platforms.

Q4: How is the module powered?

A4: It is powered directly from the PCI bus of the host computer.

Q5: What is the physical size of the module?

A5: The dimensions are 156 x 88 x 20 mm.

Q6: What is the weight of the module?

A6: It weighs approximately 0.34 kg.

Q7: Does this module require external software drivers?

A7: Yes, drivers are required and provided by Honeywell for supported systems.

Q8: Is the TC-PCIC01K still in production?

A8: It may be in limited or support phase—check with Honeywell for lifecycle status.

Q9: Can I use this module with non-Honeywell systems?

A9: It is optimized for Honeywell systems and may not work properly with third-party controllers.

Q10: Is the module hot-swappable?

A10: No, installation and removal should be done with the PC powered off.
