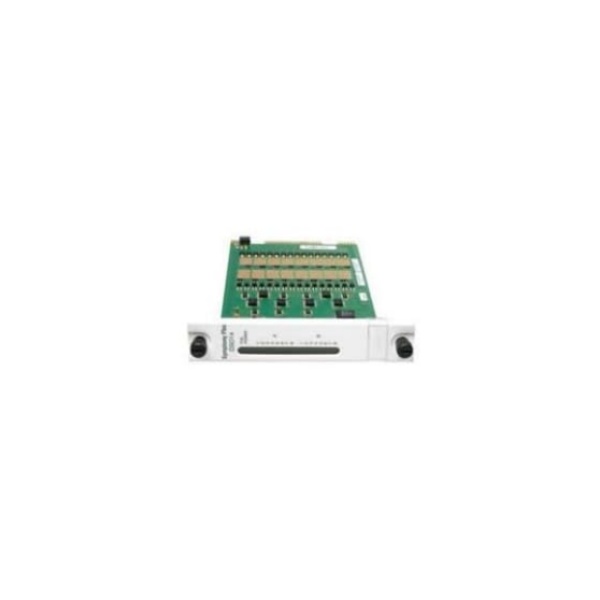

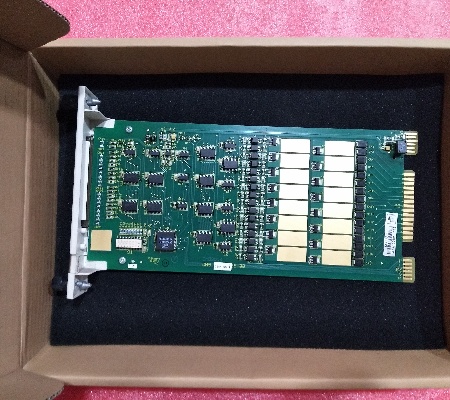

The SPDSO14 Digital Output Module is a Harmony rack I/O module that replaces the Bailey Hartmann & Braun system with ABB Symphony Enterprise Management and Control System.It has 16 open-collector, digital output channels that canswitch 24 and 48 VDC load voltages.

Plug-and-play Design: Simplifies institutionem et sustentationem intra systema automationis.

The digital outputs are used by the controller to switch field devices for processcontrol.

This instruction explains the SPDSO14 module specifications and operation. It details the procedures necessary tocomplete setup, installation, maintenance, troubleshooting, and replacement of the module.

The module operates with 24V DC outputs, which is a common voltage used in industrial control systems.

The outputs are typically designed to be either sourcing or sinking depending on the configuration, where sourcing outputs supply current to the connected device and sinking outputs pull current from the device.

Frequently asked questions about the product are as follows:

-What is the main purpose of the ABB SPDSO14?

The SPDSO14 is a digital output module that allows industrial control systems to send on/off control signals to external devices.

-How many output channels does the SPDSO14 module have?

The SPDSO14 provides 14 output channels, each of which can control a discrete device.

-What voltage does the SPDSO14 output support?

It operates with a 24V DC output signal, which is the standard voltage for most industrial control systems.
