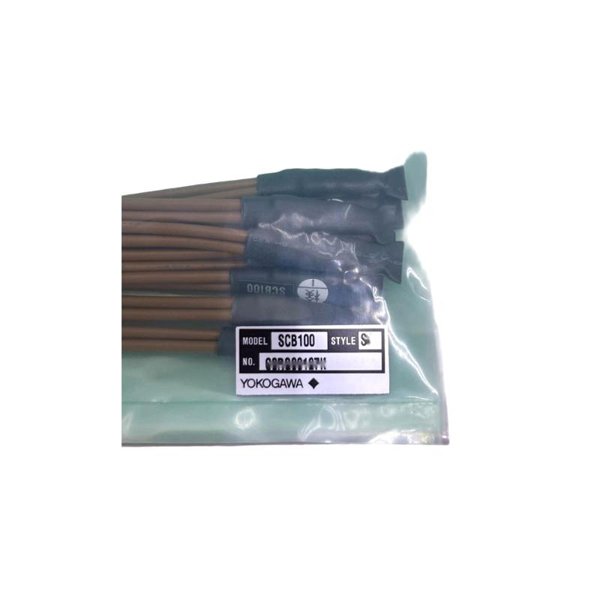

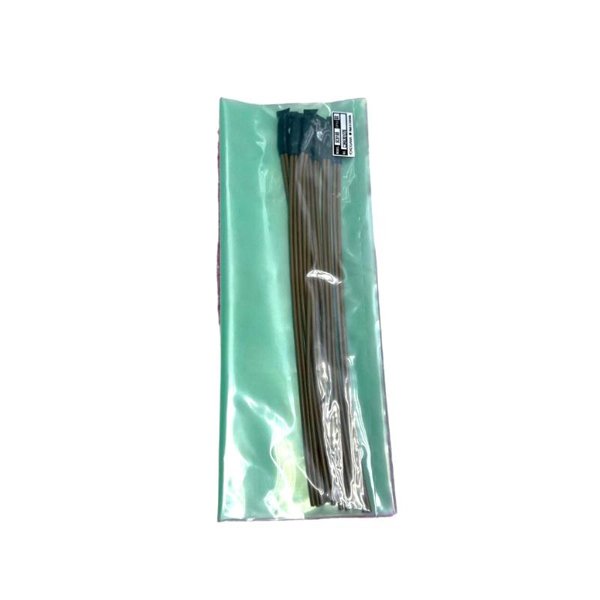

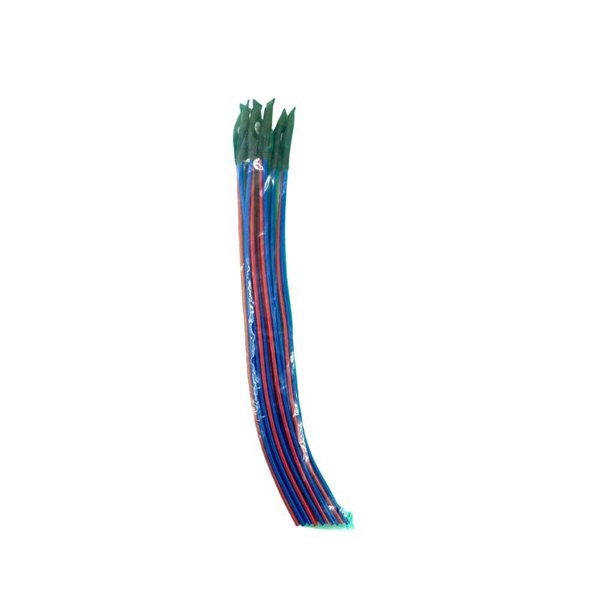

Yokogawa SCB100-S0 Wiring Diagnosis Element

The Yokogawa SCB100-S0 is a wiring diagnosis element used in conjunction with digital input modules like the SDV144. It is designed to detect open-circuit conditions when input signals are normally in the OFF state. Installed in parallel with field contacts, it enhances diagnostic capabilities in safety-critical automation systems.

Technical Specifications

Applications

• Safety Instrumented Systems (SIS)

• Process automation fault detection

• Industrial plant diagnostics

• Field wiring monitoring

• Safety control loops

Product Advantages

• Improves detection of wiring faults

• Easy integration with SDV144 input module

• Suitable for safety-critical operations

• Compact and lightweight design

• Industry-grade reliability (ISA G3 certified)

FAQ

Q1: What is the function of the SCB100-S0?

A1: It detects open-circuit faults in digital input channels where signals are normally off.

Q2: Is SCB100 used for normally on signals?

A2: No, for normally on signals, use the SCB110 model.

Q3: How is SCB100 connected to the system?

A3: It is installed in parallel with the contact output of the field equipment.

Q4: What module is SCB100 compatible with?

A4: It is compatible with the SDV144 digital input module.

Q5: Can SCB100 be used in redundant setups?

A5: Yes, it is suitable for use in dual-redundant configurations of SDV144.

Q6: What does ISA Standard G3 indicate?

A6: It certifies the product for use in environments with dust, corrosive gases, and humidity.

Q7: Can it detect both short and open circuits?

A7: No, SCB100 detects only open circuits. Combine with SCB110 to detect both.

Q8: Does it include wiring?

A8: Yes, each SCB100 unit includes a set of 8 wires.

Q9: What is the weight of the SCB100?

A9: Approximately 0.3 kg.

Q10: Is external power required for SCB100?

A10: No, it functions passively within the circuit.
