Manufacturer:Honeywell
Product Number:TC-CCR012
Product Type:Redundant Net Interface Module
Origin:USA
Dimensions:22 x 124 x 126 mm
Weight:0.231 kg
Views:108
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

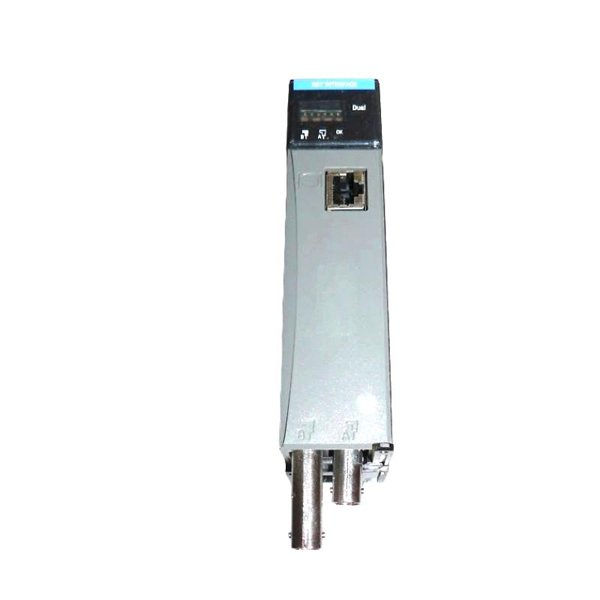

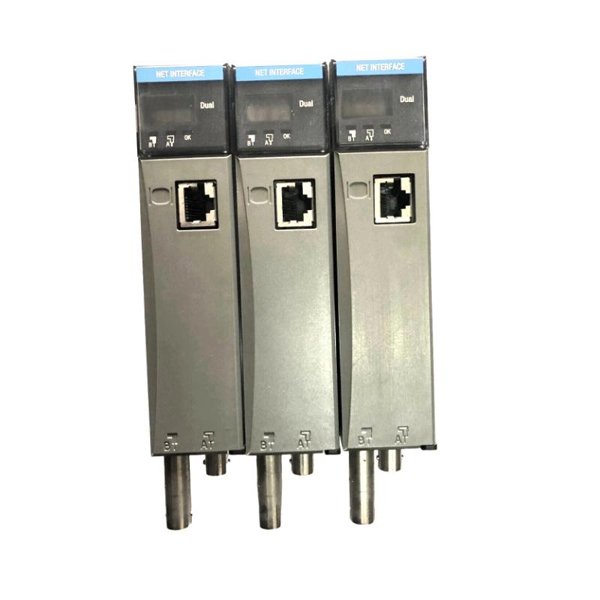

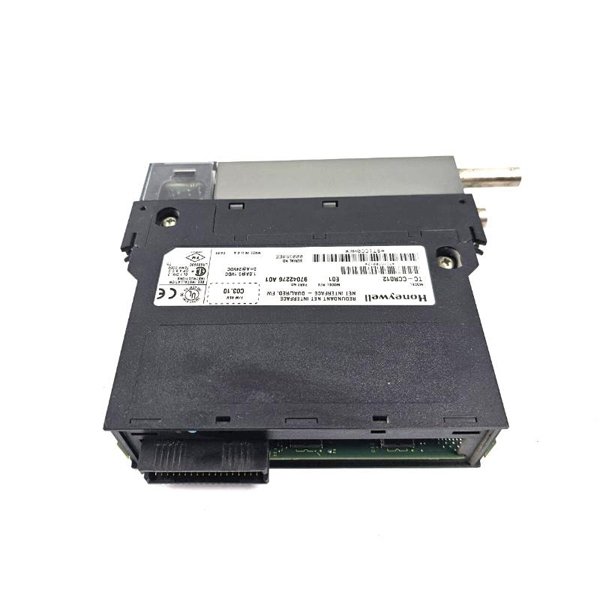

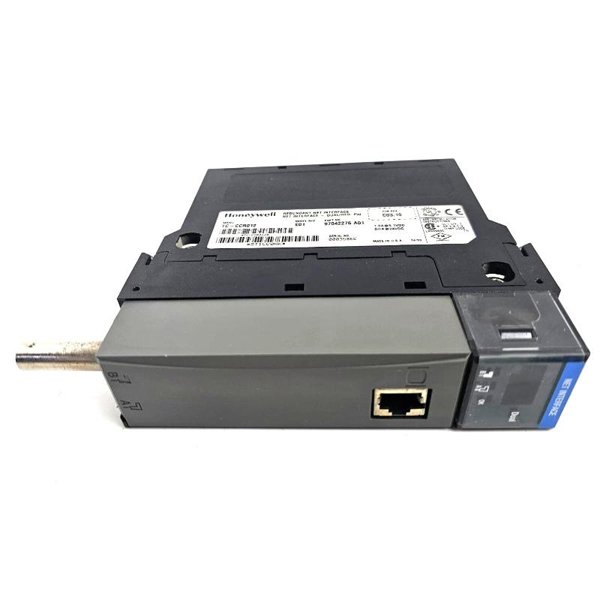

The Honeywell TC-CCR012 is a Redundant Network Interface Module used in the Experion Series A I/O system. It facilitates dual-media communication between the C200E controller and distributed I/O modules, enabling redundant ControlNet communication for enhanced system reliability and availability.
| Parameter | Description |
|---|---|
| Product Model | TC-CCR012 |
| Function | Dual-media Redundant ControlNet Interface |
| Compatible Controller | Honeywell C200E |
| Interface Type | ControlNet (Dual Media) |
| Module Type | Series A, Specialty Module |
| Installation | Chassis-mounted (uses 1 slot) |
| Dimensions | 22 × 124 × 126 mm |
| Weight | 0.231 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE, CSA, Class I Div 2, C-Tick |
Redundant network interface for Honeywell C200E control systems
Process automation requiring high availability and fault-tolerant communications
ControlNet-based distributed control systems (DCS)
Power plants, chemical plants, oil & gas, and critical infrastructure
Redundant ControlNet support ensures continuous communication
Compact design saves chassis slot space
Supports hot-swappable architecture (with proper precautions)
Seamless integration with Honeywell’s Experion PKS architecture
Q1: What is the primary function of the TC-CCR012 module?
A1: It enables dual-redundant ControlNet communication between the C200E controller and remote I/O modules.
Q2: Is TC-CCR012 hot-swappable?
A2: Yes, it supports removal and insertion under power in non-hazardous areas.
Q3: How many TC-CCR012 modules can be used in a chassis?
A3: One per I/O communication branch; up to 4 per C200E system.
Q4: What is the difference between TC-CCR012 and TC-CCN014?
A4: TC-CCR012 supports dual-media (redundant) communication, while TC-CCN014 supports single-media.
Q5: Does the module require special terminal blocks?
A5: No, it uses the standard Series A chassis backplane interface.
Q6: What protocols are supported?
A6: It communicates via ControlNet for real-time deterministic data transfer.
Q7: What is the power consumption of the TC-CCR012?
A7: Power consumption details are consistent with other single-slot Series A modules (~3–5 W typical).
Q8: Can it be used in conformal-coated environments?
A8: Yes, a TK-CCR012 version with conformal coating is available.
Q9: Is the module compatible with older C200 controllers?
A9: It is designed for use with C200E; compatibility with older versions must be verified per system.
Q10: What is the installation orientation?
A10: Vertically mounted in any available chassis slot position.
