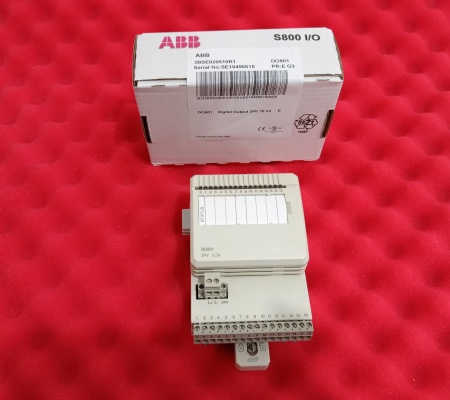

The DO801 is a 16 channel 24 V digital output module for the S800I/O. The output voltage range is 10 to 30 volt and the maximumcontinuous output current is 0.5 A. The outputs are protected against short circuits, over voltage and over temperature. The outputs are in one isolated group. Each output channel consists of a short circuit and over temperature protected high side driver,EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier.

Detailed data:

Isolation Group isolated from ground

Output load < 0.4 Ω

Current limitation Short-circuit protected Current limited output

Maximum field cable length 600 m (656 yd)

Rated insulation voltage 50 V

Dielectric test voltage 500 V AC

Power dissipation Typical 2.1 W

Current consumption +5 V Modulebus 80 mA

Current consumption +24 V Modulebus 0

Current consumption +24 V External 0

Supported wire sizes

Solid wire: 0.05-2.5 mm², 30-12 AWG

Stranded wire: 0.05-1.5 mm², 30-12 AWG

Recommended torque: 0.5-0.6 Nm

Strip length 6-7.5 mm, 0.24-0.30 inch

Frequently asked questions about the product are as follows:

-What is ABB DO801 3BSE020510R1?

DO801 is a digital output module that controls external devices through on/off signals. It usually has multiple channels (usually 8 or 16), each corresponding to a digital output that can be set high or low to control various actuators.

-What are the main functions of the DO801 module?

The output channel has 8 digital outputs.The voltage range is that it can control devices running on 24 V DC.Each output channel may support a specific maximum current, 0.5 A or 1 A, depending on the configuration.The output channel is usually electrically isolated from the input and processing circuits, providing protection from voltage spikes or noise.LEDs will be equipped to indicate the status of each output channel.

-What types of devices can be controlled with the DO801 module?

It can control solenoids, relays, motor starters, valves, indicator lights, sirens or horns
