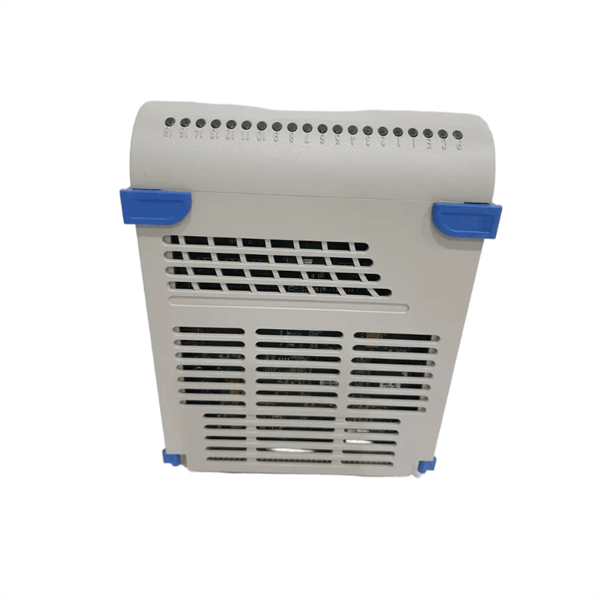

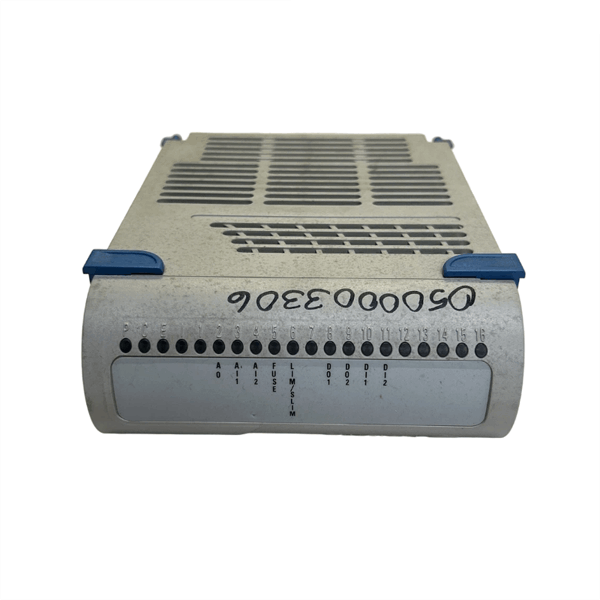

The OVATION 1C31174G41 is a robust and highly reliable input/output (I/O) module developed by Emerson Process Management for use in the Ovation Distributed Control System (DCS). Designed to handle high-speed control processes and data acquisition in industrial environments, this module plays a critical role in ensuring real-time monitoring and precise control of various field devices. With seamless integration capabilities and compatibility across Ovation systems, the 1C31174G41 offers a dependable solution for utility-grade automation projects in power generation, water treatment, and heavy process industries.

Product Advantages

• High Reliability: Designed for 24/7 operation in mission-critical control systems with proven MTBF (Mean Time Between Failures).

• Modular Construction: Simplifies system upgrades, expansion, and maintenance without requiring major downtime.

• Real-Time Data Processing: Optimized for quick data capture and transmission to the controller for high-speed applications.

• Full Integration: Works seamlessly with the Ovation system architecture, allowing for unified diagnostics and configuration.

• Rugged Industrial Design: Engineered to withstand harsh environmental conditions including temperature, vibration, and humidity.

• EMC and Safety Compliance: Conforms to global standards for electromagnetic compatibility and industrial safety regulations.

Technical Specifications

Product Applications

The OVATION 1C31174G41 is primarily used in critical control and monitoring roles within:

• Power Generation Plants (Steam, Gas, Nuclear, Hydro)

• Water and Wastewater Treatment Facilities

• Chemical and Petrochemical Processing

• Oil & Gas Refining Operations

• Pulp and Paper Mills

• Steel and Heavy Manufacturing Plants

• Transportation Infrastructure (Tunnels, Substations)

This module ensures safe, accurate, and timely actuation of field devices such as valves, contactors, solenoids, and relays in complex control loops.

Installation Instructions

1. Ensure Power is Disconnected before installation or replacement to avoid electrical hazards.

2. Mount the Module securely onto a DIN rail or directly on the panel using standard Ovation backplane hardware.

3. Connect Field Wiring using recommended shielded cables to the designated terminal blocks, following the wiring diagram.

4. Verify Channel Assignment in the Ovation configuration software and download updated logic if needed.

5. Power Up the System and confirm operational status via onboard LED indicators and system diagnostics.

6. Perform I/O Verification Testing using Ovation’s configuration tools to ensure functional field connections.

FAQ

Q1: What type of output does the 1C31174G41 provide?

A1: It provides DC digital outputs with a sourcing configuration, suitable for driving relays or actuators.

Q2: Is this module hot-swappable?

A2: No, power must be turned off before removing or installing the module to ensure safety and avoid damage.

Q3: How many outputs are available on this module?

A3: It features 32 isolated digital output channels.

Q4: Can this module be used in high-temperature environments?

A4: It operates within 0°C to 60°C. For higher temperatures, additional cooling or alternative modules should be used.

Q5: Is it compatible with older Ovation racks?

A5: Yes, it is backward-compatible with legacy Ovation backplanes and control racks.

Q6: What diagnostics does the module support?

A6: It includes built-in diagnostics for overcurrent detection and output status monitoring.

Q7: Does the module require external fusing?

A7: While it has some internal protections, external fuses are recommended per channel for added safety.

Q8: How is the module configured within the system?

A8: Configuration is done via Emerson’s Ovation engineering software using predefined templates.

Q9: Can the output channels be grouped or configured individually?

A9: Channels can be configured independently for different output devices or grouped logically in the system software.

Q10: What happens if an output fails?

A10: The system will flag the error through diagnostics, allowing replacement or maintenance actions.
