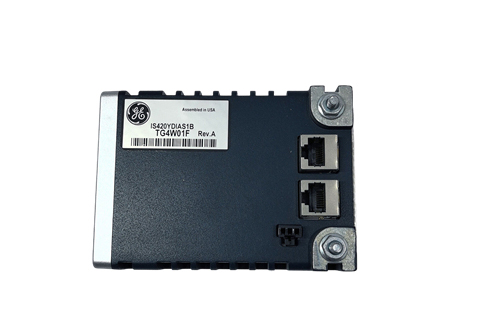

General Electric IS420YDIAS1B Thermocouple Terminal Board Technical Overview

IS420YDIAS1B thermocouple terminal board is a terminal board used for connecting and processing thermocouple signals in GE Mark VI control systems. It converts the temperature signal of the thermocouple into a signal that can be processed by the control system.

Main features

Thermocouple input: Supports multiple types of thermocouples (such as K-type, J-type, etc.) for temperature measurement.

High precision: Ensure accurate conversion and processing of temperature signals transmitted from thermocouples, providing real-time temperature monitoring.

Easy to integrate: Compatible with the Mark VI control system, making it easy to integrate with other modules.

High reliability: The design meets the requirements of industrial environments, adapts to high temperatures and harsh conditions, and ensures long-term stable operation.

Application

Temperature measurement: widely used for temperature monitoring and control in industrial environments such as power plants and chemical plants.

IS420YDIAS1B is a key component in the GE Mark VI system, used for the acquisition and processing of thermocouple signals to ensure the accuracy and reliability of temperature monitoring.
