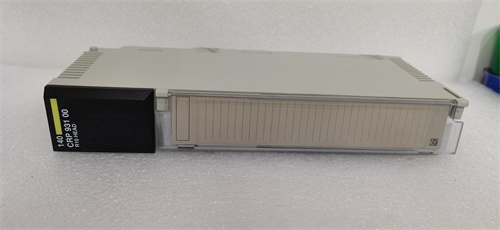

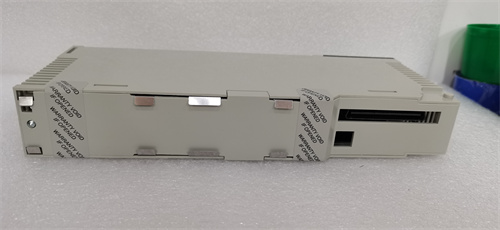

MODICON 140CRP93100 Detailed Introduction

MODICON 140CRP93100 is a high-performance input and output (I/O) module launched by Schneider,designed for the Modicon Quantum platform.As a key part of the Quantum remote I/O architecture,the 140CRP93100 module ensures the efficient and stable operation of industrial automation production lines.It provides a high capacity of 64 inputs/64 outputs and supports coaxial 75-ohm cable transmission at a rate of up to 1544 megabits per second.

Product Features

High-capacity I/O:The module provides 64 input and 64 output channels to meet the needs of large industrial automation systems.

High-speed transmission:Supports coaxial 75-ohm cable transmission at a rate of up to 1544 megabits per second to ensure the real-time and accuracy of data.

Remote I/O expansion:As part of the Quantum remote I/O architecture,the 140CRP93100 module supports remote I/O expansion functions,which can connect multiple remote I/O modules to expand the control range of the system.

Diagnostic function:supports the execution of checksum,power-on and runtime diagnostic functions,which is convenient for users to troubleshoot and maintain.

RAM address/data function:It has internal RAM,which can be used to store data and address information,improving the flexibility and reliability of the system.

Technical parameters

Model:140CRP93100

Input and output:64 I/64 O

Cable type:75Ωcoaxial cable

Transmission rate:1544 Mbit/s

Dynamic range:35 dB

Power consumption:3 W/channel

Required bus current:600 mA/channel

Environment:Suitable for a variety of industrial environments

Application fields

The 140CRP93100 module is widely used in CNC machinery,metallurgy,oil and gas,paper printing,textile printing and dyeing,machinery,electronic manufacturing,automobile manufacturing,tobacco,plastic machinery,power plants,water conservancy treatment/environmental protection,municipal engineering,steel mills,cement plants,robots,rail transit and other fields.It can meet the needs of various industrial automation and control systems and improve production efficiency and quality.
