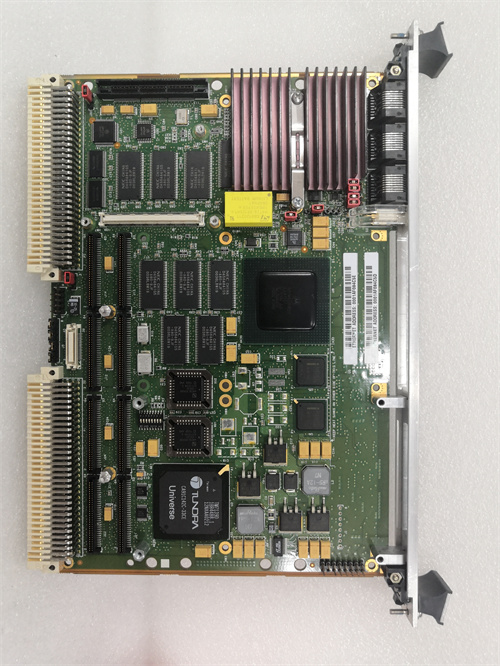

MOTOROLA MVME5100 Product Introduction

MOTOROLA MVME5100 is a high-performance VME bus single-board computer.Here is a detailed introduction to it.

Basic information

Manufacturer:Motorola(now part of NXP Semiconductors)

Model:MVME5100

Architecture:Based on PowerPlus II architecture

Technical specifications

Processor:Supports a variety of processor options,including MPC7410,MPC750 or MPC755 class microprocessors.These processors have the characteristics of high performance and low power consumption,suitable for industrial automation and embedded control applications.

Front-end bus speed:100 MHz

Memory:Supports 128 MB SDRAM,and can increase memory through memory mezzanine cards,up to 1 GB.At the same time,it provides a variety of memory types and interfaces,such as SIMM,DIMM,etc.

Storage:Usually equipped with 2 GB IDE hard disk or solid-state hard disk,and also provides a variety of storage options such as CompactFlash.

I/O interface:Provides a variety of interfaces,including 2 RS-232C serial ports,10/100BaseTX Ethernet interface,USB,GPIO,etc.,to facilitate data exchange and communication with other devices and systems.

Expansion capability:With 1 PCI slot and 1 CompactFlash slot,it supports a wide range of peripheral expansion.

Network:Supports dual 10BaseT/100BaseTX Ethernet interfaces,providing high-speed network communication capabilities.

Performance characteristics

High-performance computing:Using Motorola’s PowerPC microprocessor,it has excellent computing power and processing speed,and can efficiently process large amounts of data and complex tasks.

VME bus interface:Communicates with other devices through the VME bus interface,supports VME64x and VMEbus standards,and facilitates system integration and expansion.

Rich I/O interfaces and expansion slots:Provides a variety of I/O interfaces and expansion slots to meet different application requirements.

Multiple operating system support:Supports multiple operating systems such as VxWorks,Linux,Windows,etc.,to facilitate software development and system integration.

High reliability and stability:high-quality components and strict production processes are used to ensure stable operation in various harsh environments.

Application fields

MOTOROLA MVME5100 single-board computers are widely used in various application scenarios that require real-time processing and high-speed communication,including but not limited to

Industrial automation:used to monitor and control various equipment on the production line in real time to improve production efficiency.

Data acquisition:as the core processing unit in the data acquisition system,responsible for data collection,processing and transmission.

Communication system:as the core component of the communication system,it provides high-speed network communication capabilities and data processing capabilities.

Aerospace:used in the aerospace field for real-time processing of key systems such as flight control,navigation and communication.

Medical imaging:used for image processing and data analysis in medical imaging equipment to improve the accuracy and efficiency of diagnosis.
