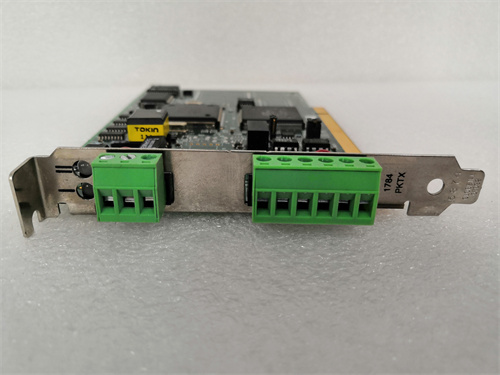

Allen‑Bradley 1784-PKTX Product Details

Allen‑Bradley 1784-PKTX is a network interface card produced by Allen-Bradley(Rockwell)that can be directly installed into the Peripheral Connection Interconnect(PCI)port of a personal computer.It supports PCI bus version 2.3 and allows the host to connect to Data Highway Plus(DH+),Remote I/O(RIO)or DH-485 communication networks.

Product Features

Hardware Standard

PCI 2.3 compliant hardware.

Provides Data Highway Plus(DH+)/Remote I/O(RIO)Channel 1A and DH485 Channel 1B ports.

Communication Capability

Supports three communication networks:DH+,RIO and DH-485.

DH+and RIO support long-distance communication,and the specific coverage range is limited by the transmission rate.For example,the transmission rate is 57.6Kbit/s at 10,000 feet(3048 meters);115.2Kbit/s at 5,000 feet(1,524 meters);and 230.4Kbit/s at 2,500 feet(762 meters).

For DH-485,the maximum distance that can be covered is 4,000 feet(1219 meters)with a selectable transmission rate of 1200,2400,4800,9600,or 19,200 bits/s.

Module Configuration

Each channel has 1 diagnostic/status LED.

Up to 4 modules per system are supported,specified by jumper configuration.

Driver Development

Driver development can be configured in a variety of ways and is dependent on the operating system.

The module uses the RSLinx PKTx driver to connect to devices on a DH+or DH-485 network.

Compatibility

Compatible with a wide range of operating systems.

Can be used to interface with a Programmable Logic Controller(PLC)for process visualization.

Application Scenarios

The 1784-PKTX can be used in automation control systems that require connecting a personal computer to a DH+,RIO,or DH-485 communication network.It is particularly suitable for industrial automation applications that require remote communication and real-time data exchange.

Technical Specifications

Operating temperature range:0 to 60 degrees Celsius(32 to 140 degrees Fahrenheit).

Tested relative humidity:5 to 95%,non-condensing.

Rated to withstand 30G operating shock and 2G vibration from 10 to 500 Hz.
