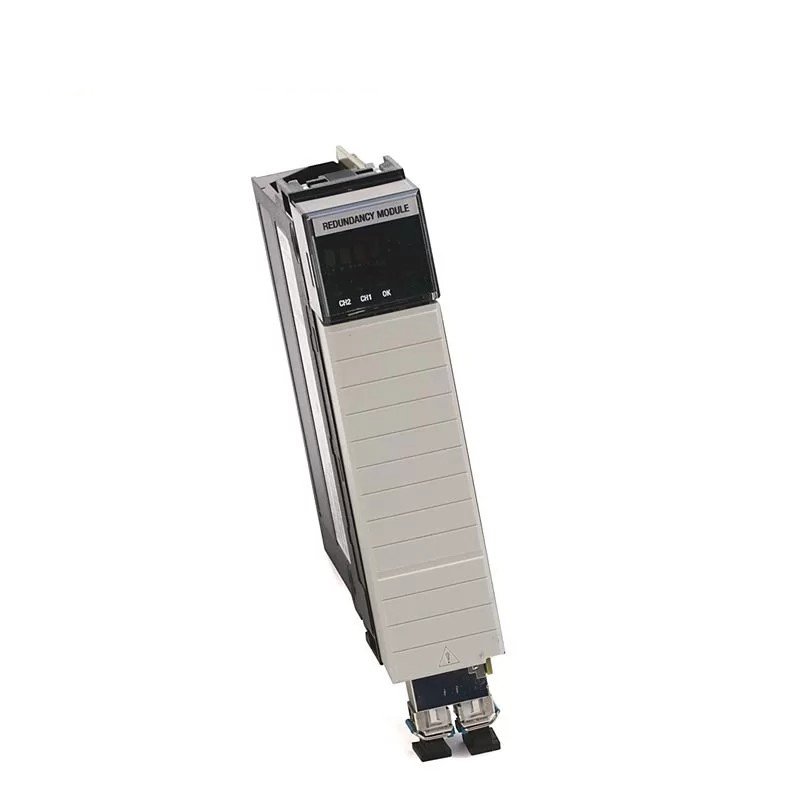

Rockwell 1756-RM Product Overview

1756-RM is a ControlLogix series redundant module produced by Rockwell Automation(Allen-Bradley).The following is a detailed introduction to the 1756-RM module.

Basic attributes

Brand:Rockwell Automation(Allen-Bradley)

Series:ControlLogix

Type:Redundant module

Functional features

Redundant control:The 1756-RM module is used to achieve controller redundancy and improve system reliability and safety through redundant configuration.When the main controller fails,the backup controller can immediately take over the control task to ensure the continuous and stable operation of the system.

High performance:The module has a high-performance processor and communication interface,which can handle complex control algorithms and real-time tasks,and supports multiple communication protocols to achieve data exchange and communication with other devices and systems.

Modular design:The 1756-RM module adopts a modular design and is easy to install,maintain and upgrade.It is usually installed in the rack of the ControlLogix system and connected to the main controller through the backplane.

Monitoring and diagnosis:The module has an embedded LED display that can display system status,module health and other information,which is convenient for users to monitor and diagnose faults.

Technical Specifications

The technical specifications of the 1756-RM module may vary depending on the specific model and configuration.But in general,the module has the following basic technical specifications

Operating voltage:usually 24V DC.

Operating temperature:a wide range,usually from-20℃to 70℃.

Storage temperature:usually ranges from-40℃to 85℃.

Size:varies according to the specific model,but generally compact and suitable for installation in the rack of the ControlLogix system.

Weight:also varies according to the specific model,but generally light,easy to carry and install.

Application fields

The 1756-RM module is widely used in various industrial automation fields that require high reliability and safety,such as manufacturing,energy industry,transportation industry,etc.In the manufacturing industry,it can be used to control production lines,robots,automated assembly lines and other equipment to improve production efficiency and product quality.In the energy industry,it can be used to control power transmission and distribution systems,gas pipelines,water treatment systems and other equipment to ensure the stability and safety of energy supply.In the transportation industry,it can be used to control traffic lights,subway systems,airport air traffic control systems and other equipment to improve the safety and efficiency of the transportation system.
