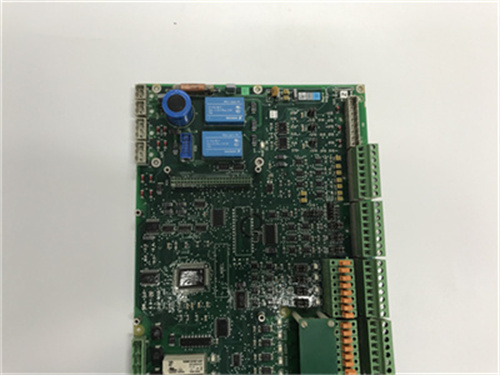

ABB 3ASC25H215E DATX131 Product Overview

ABB 3ASC25H215E DATX131 is an industrial automation communication and control core component that combines intelligent protocol conversion,digital signal output,and high stability data processing functions.It is widely used in industrial control systems.The following is a comprehensive analysis of its core functions,technical parameters,and application scenarios.

Core functions

Intelligent Protocol Conversion and Communication Adaptation

Supports mainstream industrial protocol conversions such as Modbus and Profinet,enabling seamless interconnection of different devices such as PLCs,sensors,and actuators.

Compatible with InterchangeTM and RSLinxTM software,simplifying the data exchange process between the host computer and devices.

Digital signal output and control

Provide multi-channel digital signal output(such as switch control),support 24V DC power input,and can drive actuators such as relays and motors.

Support high-speed data processing(transmission rate≥5Mbps)to ensure real-time control response.

Integrated system management

Deeply integrated with PLC and DCS control systems to achieve data acquisition,transmission,and monitoring.

Equipped with fault diagnosis function,providing real-time feedback of abnormalities through LED status indicators or software.

Technical parameters

Characteristic parameters

Communication interface Ethernet(10/100Mbps),RS232/RS485(dual-mode switching)

The protocol supports Modbus RTU/ASCII,Profinet,FBP bus(expandable)

Output channel digital output(switch value):8 isolated channels(24V DC)

Isolation voltage≥2500V AC

Working temperature-20°C to+70°C

Protection level IP20(requires cabinet protection)

Power input 24V DC±10%

Power consumption≤15W

Typical application scenarios

industrial automation control

Production line equipment linkage:Connect robots,sensors,and actuators through Profinet protocol to achieve precise control.

Safety interlock logic:Monitor pressure and temperature parameters in the chemical and power industries to trigger emergency shutdown or alarm.

Energy and Power Systems

Power station monitoring:Real time collection of status data of transmission and distribution equipment to ensure stable operation of the power grid.

Energy management:Coordinate communication between generator sets and energy storage systems to optimize energy allocation.

Digital factory

Intelligent manufacturing:integrated with MES system to achieve real-time collection and analysis of production data.

Predictive maintenance of equipment:transmitting device operation data through Modbus protocol to predict fault risks.

Electricity and Energy Optimization

Substation automation:supports distributed I/O expansion,manages multi node sensors and actuators.

Wind power generation system:Monitor parameters such as blade angle and wind speed to optimize power generation efficiency.

Technical advantages

Multi protocol compatibility

Support real-time conversion of protocols such as Modbus and Profinet to reduce system integration complexity.

Seamless integration with Microsoft Windows system is achieved through RSLinxTM software.

High reliability design

Using industrial grade electronic components that comply with IEC 61131-2 standard,with a failure rate of less than 0.1%.

Built in anti-interference filtering circuit,suitable for high electromagnetic environments(such as metallurgy and chemical scenes).

Modular expansion capability

Support hot swappable maintenance,faulty modules can be replaced within 5 minutes,reducing downtime.

Expand the number of local I/O points to 100+channels through FBP bus to reduce the load on the main station.
