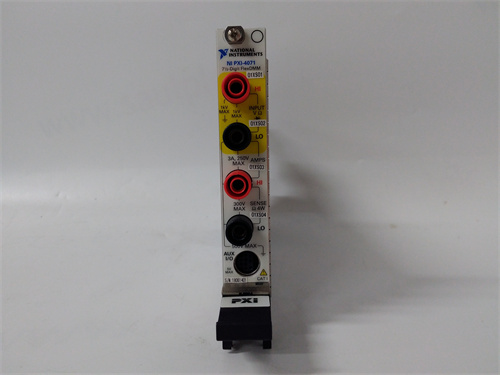

NI PXI-4071 Product Overview

PXI-4071 is a high-performance,multi-function 7.5-bit PXI module produced by NI(National Instruments)of the United States.The following is a detailed introduction to the module.

Main functions

PXI-4071 has the measurement functions of two common test instruments,namely,a high-resolution digital multimeter and a digitizer.

Digital multimeter function

Voltage measurement can be performed with a measurement range of±10nV to 1000V.

Current measurement can be performed with a measurement range of±1pA to 3A.

Resistance measurement can be performed with a measurement range of 10μΩto 5GΩ.

Frequency/period measurement and diode test can be performed.

Digitizer function

In high-voltage isolated digitizer mode,PXI-4071 can acquire DC waveforms in all voltage and current modes at an acquisition rate of 1.8 MS/s.

Technical features

High precision:As the most accurate 7.5-bit digital multimeter in the industry,PXI-4071 performs well in voltage,current and resistance measurements.

High safety:With±500 VDC/Vrms common mode isolation and up to 1000V isolation capability,it provides extremely high safety for measurement.

High speed:With a waveform acquisition rate of 1.8 MS/s,the PXI-4071 can quickly capture transient changes in signals.

Multi-function:In addition to basic voltage,current,and resistance measurements,it also supports frequency/period measurement,diode testing,and waveform acquisition.

Easy to integrate:The PXI-4071 can be used with PXI switches to form a multi-channel high-voltage data acquisition system,which is convenient for users to integrate and expand the system.
