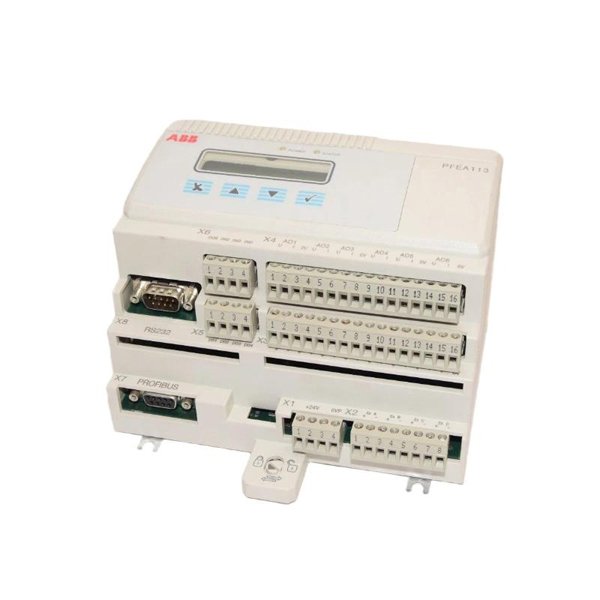

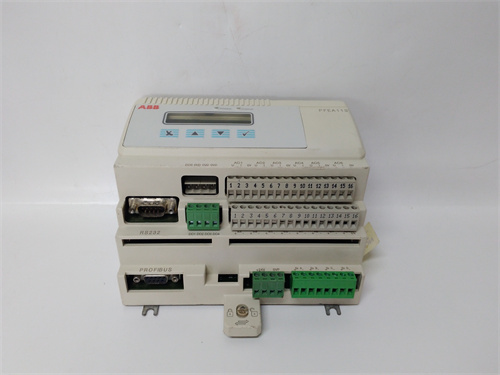

ABB PFEA113-20 Product Overview

ABB PFEA113-20 is a high-performance tension controller,which is widely used in various industrial fields that require tension control.The following is a detailed introduction to the ABB PFEA113-20 tension controller.

Product Features

High-precision measurement:The use of advanced sensor technology and signal processing algorithms can achieve accurate measurement of tension.Its measurement accuracy is much higher than that of traditional sensors,meeting various high-precision tension control requirements.

Stable and reliable:It has stable performance and can maintain stable tension measurement and control under various harsh environmental conditions.The metal bottom is designed with a grounding connector to ensure the stable operation of the equipment.

Multiple communication interfaces:It has multiple communication interfaces and expansion capabilities,which can be easily integrated with other devices or control systems.It supports multiple communication protocols such as serial communication(such as RS232,RS485,etc.)and Ethernet interface to realize data exchange and monitoring with the host computer or control system.

Programmability:Users can configure and adjust tension control parameters according to actual needs,so that the tension controller can adapt to different material types and production process requirements.

Friendly human-machine interface:It has a friendly human-machine interface and simple programming method,which is convenient for users to configure,debug and maintain.The display can show the total,individual A&B and difference signals,so that users can monitor the tension value in real time.

Technical parameters

Working voltage:usually supports multiple voltage ranges,such as 24Vdc/120Vac,etc.(depending on the application scenario).

Control signal:The input control signal can be adaptive in the range of 5V to 24V,without external resistors.

Measurement accuracy:24-bit AD analog-to-digital conversion is adopted,and the measurement accuracy is significantly improved compared with traditional 12-bit or 16-bit AD converters.

Control output accuracy:16-bit DA digital-to-analog conversion is adopted,and the control output accuracy is higher than that of traditional 12-bit or 14-bit DA converters.Floating point operation accuracy supports double-precision floating point operations,with higher operation accuracy,and the minimum adjustment amount of the output percentage can reach 0.01%.

Control algorithm:PID(proportional-integral-differential)control algorithm is adopted to ensure accurate control and stability of tension.

Application scenarios

ABB PFEA113-20 tension controller is widely used in the following industrial fields

Textile machinery:In the weaving process,ensure the stable tension of yarn or fiber to prevent breakage or distortion.

Papermaking industry:In the papermaking process,control the tension of paper to ensure the flatness and quality of paper.

Metallurgical industry:In the processing of metal materials,control the tension of materials to prevent deformation or damage of materials.

Continuous production line:Continuous production lines such as films and cables need to control the tension of materials to ensure product quality.

Printing and coating:Ensure that the coil maintains proper tension throughout the production line to obtain high-quality output.

Stretching and extrusion:In industries such as plastics and rubber,it is used for stretching and extrusion processes to ensure that the tension of materials during the production process is precisely controlled.

Winding:In the process of winding paper,metal,and plastic,it is used to adjust the winding speed to maintain proper tension to prevent material breakage or damage.

Packaging:Ensure the tightness and stability of packaging materials,especially for the packaging of films,paper or other rolls.
