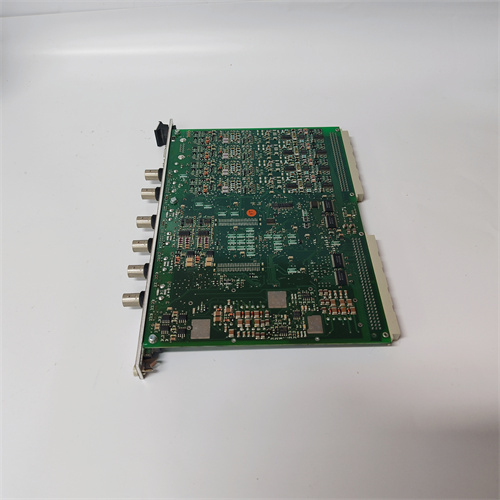

Vibro-meter VM600 MPC4 200-510-071-113 200-510-111-034 Product Details

Vibro-meter VM600 MPC4 200-510-071-113 200-510-111-034 is a highly flexible and powerful vibration monitoring and analysis instrument.The following is a detailed introduction to the product.

Core functions and features

Multi-channel measurement and monitoring

VM600 MPC4 can simultaneously measure and monitor four dynamic signal inputs and two velocity inputs,suitable for comprehensive vibration measurement.

Programmability

The dynamic signal input is fully programmable and can accept signals representing acceleration,velocity and displacement.

Users can configure and program in a complete and unified development environment through the control builder software,including all six IEC61131-3 programming languages.

High precision and high resolution

Provide high-precision vibration data with high-resolution vibration signal measurement to ensure data accuracy.

Wide frequency band measurement

Supports a wide range of vibration frequencies,can detect various vibration signals from low frequency to high frequency,and capture abnormal vibration signals.

Real-time measurement and monitoring

Using the most advanced DSP technology for real-time measurement and monitoring,it provides real-time card plug-in and pull-out(hot-swappable)functions for easy on-site operation.

Built-in diagnostics and early warnings

With built-in diagnostics and monitoring functions,it can automatically detect faults or problems and provide corresponding alarm and prompt information.

Multiple sensor support

Supports multiple sensor types such as accelerometers,velocity sensors and displacement sensors to meet the vibration measurement needs in different applications.

Technical specifications

Number of inputs:4 dynamic signal inputs per MPC4 card.

DC range:0 to+20V or 0 to-20V.

AC range:±10V maximum.

Common mode voltage range:-50 to+50V.

Frequency range:Vibration 0.1Hz to 10kHz;gap/position DC to 1Hz.

Physical dimensions:height 6U(262 mm,10.3 inches),width 20 mm(0.8 inches),depth 187 mm(7.4 inches),weight approximately 0.40 kg(0.88 pounds).

Application areas

VM600 MPC4 200-510-071-113 200-510-111-034 is widely used in the fields of industrial equipment health monitoring and fault warning.Its high-precision,high-resolution vibration measurement capabilities,as well as built-in diagnostic and monitoring functions,make this product play an important role in mechanical equipment condition monitoring,fault prediction and preventive maintenance.
