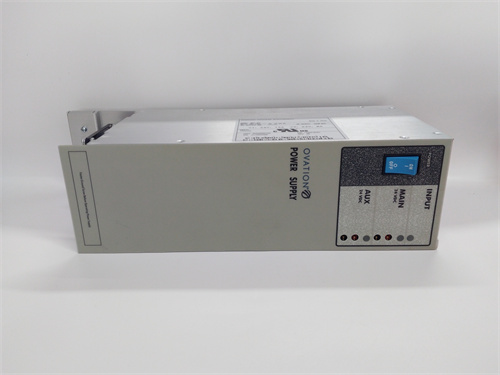

Westinghouse 1X00416H01-WH5-2FF Product Overview

1X00416H01-WH5-2FF is a power module.The following is a detailed introduction to the power module.

Basic information

Model:1X00416H01-WH5-2FF(also known as WESTINGHOUSE WH5-2FF 1X00416H01)

Brand:Westinghouse(produced by Emerson’s Ovation series)

Technical specifications

Power output

Output power:240 watts

Output voltage:240 volts direct current(DC)

Output current:1 ampere(A)

Input voltage range:It has a wide input voltage range and can accept 90 to 264 volts alternating current(AC)input,and is also said to be AC200~240V.

Operating temperature:-40 to 75°C(some say-40 to 85°C for storage temperature)

Dimensions:2.5 inches x 10.2 inches x 5.1 inches(or 250mm×205mm×45mm,may vary depending on different sources)

Weight:2.2 pounds(or 1590 grams,may vary depending on different sources)

Features

Protection function:It has multiple safety functions such as overvoltage protection,undervoltage protection and short circuit protection to protect the device from power-related problems.

Modular design:The modular design is adopted for easy installation,maintenance and replacement.Users can select and configure the corresponding modules according to their needs.

High reliability:Designed for industrial environments,it has high reliability and stability,suitable for long-term operation and various working conditions.

Heat dissipation design:It may have a good heat dissipation design to ensure that the power module maintains a stable operating temperature during long-term operation.

Communication interface:It may be equipped with a communication interface for data exchange and communication with other devices or systems.For example,it may be equipped with a PLC intelligent control interface,RS485 instrument connection interface,Ethernet host computer control interface,and wireless interface,etc.

Application Field

1X00416H01-WH5-2FF power module is usually used in industrial automation systems,power systems,communication systems and other fields to provide reliable power supply for equipment and systems.It can provide stable power output for various components of industrial equipment or systems to ensure the normal operation of equipment and systems.
