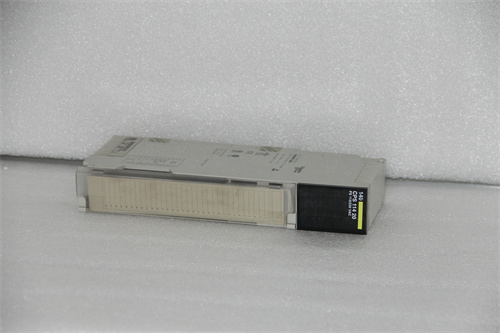

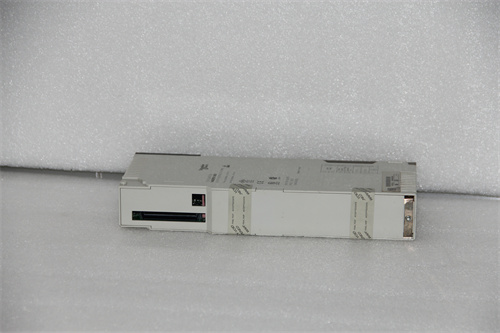

SCHNEIDER 140CPS11420 Product Overview

The 140CPS11420 power module is an important part of Schneider’s Modicon series PLC,designed to provide stable DC power to ensure the normal operation of the PLC system.

Technical specifications

Brand:Schneider

Product series:Modicon Quantum automation platform

Power supply type:summable or independent

Input voltage

230V AC(170V~276V)

115V AC(93V~132V)

Frequency:47Hz~63Hz

Input current

1300mA(115V)

750mA(230V)

Maximum inrush current

19A(230V)

38A(115V)

Rated power:130VA

Output voltage:usually 5.1V DC(specific values​​need to refer to the official data sheet)

Power supply output current

Independent mode:11A(60°C)

Summable mode:20A(60°C)

Protection function

Output overvoltage protection(internal)

Output overload protection(internal)

Power consumption:6+(1.5×output current)(output current unit is A)

Warning output:1 NC 6A 220V(power failure)

Local signal indication:1 LED(green,indicating normal power supply)

Product certification:CUL

Product weight:0.65kg

Operating temperature:0°C~60°C

Storage environment temperature:-40°C~85°C

Relative humidity:95%(non-condensing)

Working altitude:≤5000m

Product features

Modular design:easy to install and maintain,suitable for control room installation.

Easy to operate,reliable and flexible:adapt to different power supply environments and provide stable power supply support for PLC systems.

Multiple protection functions:including overload protection,short circuit protection,overvoltage protection,etc.,to ensure the safe operation of the power module.

Application field

140CPS11420 power module is widely used in the field of industrial automation,especially in PLC systems that require stable DC power support.It can provide reliable power supply guarantee for various automation equipment to ensure the normal operation and efficient operation of the system.
