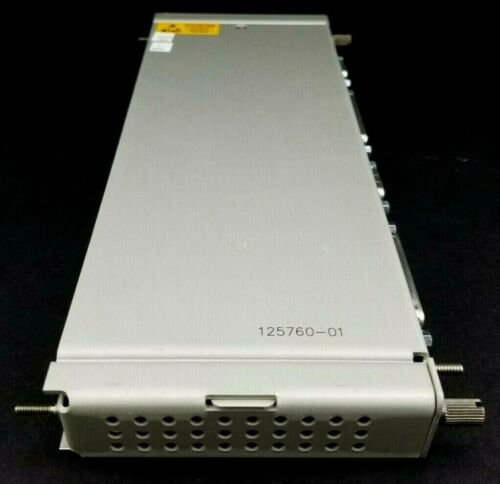

Bently Nevada 125760-01 Data Manager I/O Module Product Overview

The Bently Nevada 125760-01 Data Manager I/O Module is a crucial component of the Bently Nevada 3500 System, which is widely used for machinery protection and condition monitoring applications. This module serves as a bridge between the 3500 rack and external devices, enabling data exchange and facilitating system operation.

General Information

• Manufacturer Bently Nevada
• Part Number 125760-01
• Product Type Data Manager I/O Module
• Series 3500 System

Key Features

• Versatile I/O Capabilities Supports a variety of input and output signals, including analog, digital, and frequency signals.
• Data Acquisition and Processing Acquires data from sensors and transducers, processes it to extract meaningful information, and transmits it to the system for analysis and monitoring.
• Alarm Generation Generates alarms based on user-defined parameters and thresholds, alerting operators to potential machinery issues.
• Communication Interface Provides communication pathways for data exchange between the rack and external devices, including programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems.

Applications

The Bently Nevada 125760-01 Data Manager I/O Module finds extensive applications in various industries for machinery protection and condition monitoring, including

• Oil and gas
• Power generation
• Petrochemical
• Manufacturing
• Pulp and paper

Specifications

• Input/Output Types Analog, digital, frequency
• Number of Inputs 16
• Number of Outputs 8
• Power Requirements 24 VDC
• Operating Temperature -20°C to 65°C (-4°F to 149°F)
• Storage Temperature -40°C to 80°C (-40°F to 176°F)
• Humidity 95% non-condensing
• Dimensions 241.3 mm x 24.4 mm x 241.8 mm (9.5 in. x 0.96 in. x 9.52 in.)
• Weight 2.2 kg (4.85 lbs.)

Additional Information

For more detailed information on the Bently Nevada 125760-01 Data Manager I/O Module, please refer to the Bently Nevada product documentation or contact a Bently Nevada authorized representative.
