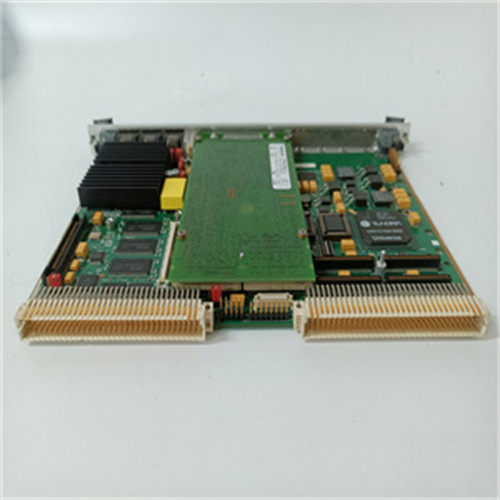

MOTOROLA MVME5100 Product Details

MVME5100 is a high-performance single-board computer designed for various industrial applications produced by Motorola(now part of NXP Semiconductors).It is based on the PowerPlus II architecture,supports a variety of processor options,and has high-performance computing capabilities and rich interface options.

Processor and Memory

Processor:MVME5100 supports a variety of processor options,such as microprocessors such as MPC7410,MPC750 or MPC755.These processors have high performance and low power consumption and are suitable for industrial automation and embedded control applications.At the same time,it is also equipped with 32KB of L1 cache and can be equipped with up to 2MB of auxiliary back-end cache,and the front-end bus speed is 100MHz.

Memory:MVME5100 supports 128MB SDRAM and can increase memory through memory mezzanine cards,up to 1GB.In addition,there is information that it has 4MB of SRAM on board,which supports a maximum expansion of 16MB.

Performance and Interface

Performance:MVME5100 integrates highly optimized PCI interface and memory controller,providing up to 582MB/s memory read bandwidth and 640MB/s burst write bandwidth,supporting 264MB/s full PCI throughput.This ensures that the processor can efficiently access memory and data bus.

Communication interface:MVME5100 provides a variety of communication interfaces,including 2 RS-232C serial ports(some data indicate RS-232/422/485 interfaces),10/100BaseTX Ethernet interface,etc.,to facilitate data exchange and control with the host system or other devices.

Expansion capability:MVME5100 has 1 PCI slot and 1 CompactFlash slot(some data indicate that it has up to 4 VMEbus P2 connectors),supports rich peripheral expansion,and can be flexibly configured according to specific needs.

Working environment and certification

Working temperature:MVME5100 has a wide operating temperature range.The operating temperature range of the commercial version is 0°C to 55°C,while the operating temperature range of the extended temperature version is-20°C to 71°C(there are also data showing that it can operate stably in extreme temperature environments of-40°C to+85°C).

Humidity requirements:The relative humidity range is between 5%and 95%without condensation,which ensures the reliability of the device in humid environments.

Certification:The MVME5100 complies with international safety and electromagnetic compatibility standards such as CE and FCC,ensuring the safety and reliability of the device.

Application scenarios

Due to its high performance and flexible expansion capabilities,the MVME5100 is suitable for a variety of application scenarios,including industrial control,data acquisition,communications,aerospace,and medical imaging.It can meet the needs of complex systems with high requirements for data processing and real-time computing.

In summary,the MOTOROLA MVME5100 is a powerful,high-performance single-board computer that is suitable for a variety of complex industrial application environments.
