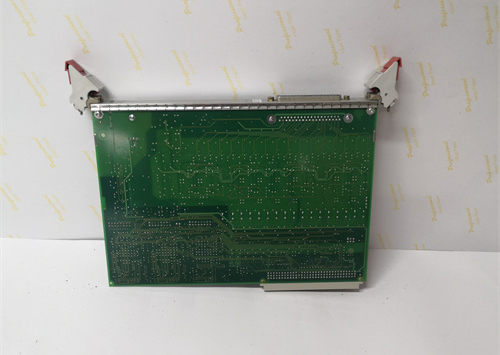

ABB PFSK151 Detailed Information

ABB PFSK151 is a powerful programmable controller module widely used in industrial automation and control systems.The following is a detailed introduction to ABB PFSK151.

Basic features

Input and output:PFSK151 has 8 inputs and 6 outputs.These I/O points can be used to connect various sensors and actuators to achieve real-time monitoring and control.Its I/O configuration is very flexible and can be expanded to up to 142 I/O points to meet more complex application requirements.

Storage capacity:Flash EPROM program memory supporting 8K steps and data storage of 8K words can store a large amount of program data and configuration information to ensure the stability and reliability of the system.

Power supply options:Two 24VDC power supply options are provided.These power supplies can not only power the PLC itself,but also other external devices,making the system power supply more flexible and reliable.

Communication and expansion

Communication protocol:Supports multiple communication protocols and interfaces,such as Ethernet,RS232/485,etc.,to facilitate data exchange and communication with other devices or systems.At the same time,it also supports fieldbus communication protocols(such as Profibus,Modbus,DeviceNet,etc.)and Ethernet communication protocols(such as TCP/IP,EtherNet/IP,etc.).

Extension modules:Functions can be enhanced through a variety of extension modules,such as analog input/output modules,high-speed counting modules,etc.to meet specific application requirements.

Working environment and standards

Working voltage:The working voltage is+5V DC,±10%,and the maximum value is 200mA.

Working temperature:It can work normally in the temperature range of+0°C to+60°C,and the relative humidity can reach up to 95%(non-condensing).

EMC standards:It complies with EMC standards,has strong anti-interference ability,and can operate stably in various industrial environments.

Other functions

NVSRAM:Contains non-volatile static random access memory(NVSRAM),which can retain key information such as program variables and configuration settings,ensuring data integrity and reliability even during power outages or system failures.

Platform configuration:Supports functions such as EFA(Embedded Function Automation),embedded EtherCAT(Ethernet for Control Automation Technology)and embedded PPNG(Predix Process and Notification Gateway),which enhances the connectivity,compatibility and overall performance of the module in complex industrial control systems.

Application fields

ABB PFSK151 is generally used in manufacturing,power,chemical,water treatment and other fields,as well as ABB’s automation systems such as PLC,DCS(distributed control system)and other equipment.

In summary,ABB PFSK151 is a comprehensive and excellent programmable controller module that can meet the various needs of industrial automation and control systems.
