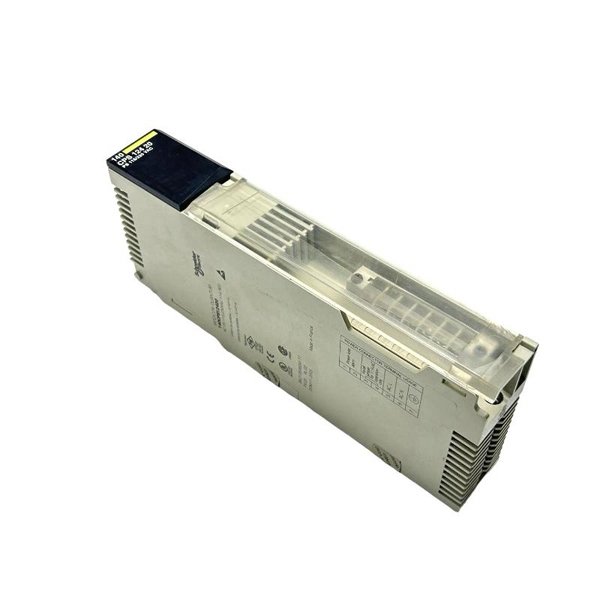

SCHNEIDER 140CPS12420 Product Introduction

Schneider 140CPS12420 is a power module of Schneider brand.The following is a detailed analysis of this power module.

Basic information

Brand:Schneider

Model:140CPS12420

Product type:power module

Technical specifications

Input voltage/power type

230V AC(170~276V)

115V AC(93~138V)

Frequency range:47~63Hz,supports redundant input

Output current

When 230V AC,the output current is 600mA

When 115V AC,the output current is 1100mA

Instantaneous peak current

When 115V AC,the instantaneous peak current is 38A

When 230V AC,the instantaneous peak current is 19A

Rated power:130VA

Related fuse level:2A slow-break type

Harmonic distortion:≤10%(basic effective value)

Power supply output current

When 60℃,the output current in redundant mode is 10A

When 60℃,the output current in independent mode is 11A

Power consumption:6+(1.5x output current),where the output current unit is A

Product certification:CUL

Application and features

Application range:This power module is suitable for various industrial control occasions,such as CNC machinery,metallurgy,oil and gas,papermaking and printing,etc.

Features:As a standard power module for PLC(Programmable Logic Controller),it has the characteristics of high reliability,high stability and easy maintenance.
