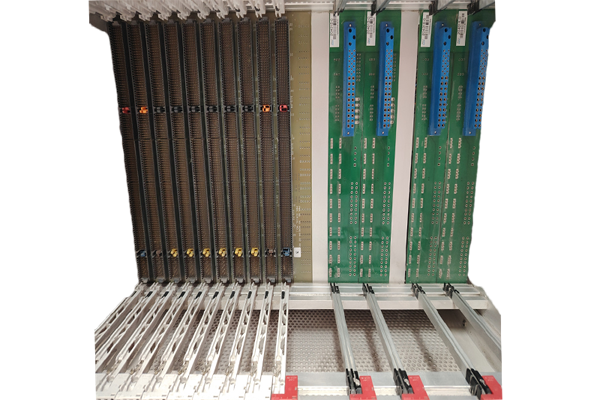

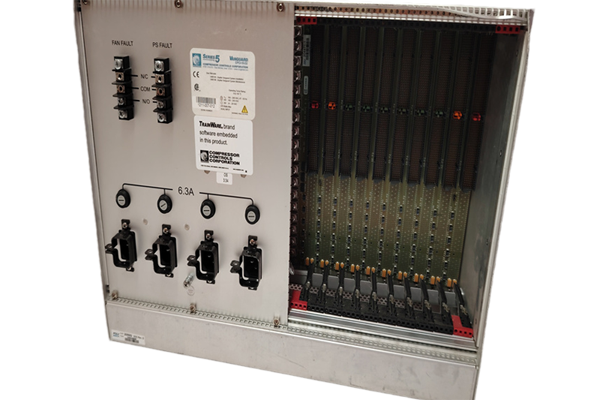

Vanguard CPCI-10-D2 Technical Specifications

The Vanguard CPCI-10-D2 is a CompactPCI (CPCI) standard chassis designed for high-reliability industrial and embedded applications. Below is a detailed overview of its technical specifications, features, and applications:

Technical Specifications

• Chassis Type: CPCI standard chassis
• Slot Configuration: 10 CompactPCI (CPCI) slots, supporting system slots and extended I/O slots
• Form Factor: 3U/6U dimensions, compatible with standard rack installations
• Material: High-strength aluminum alloy enclosure with anti-vibration and corrosion-resistant properties
• Power System: Redundant power supply, supporting 250W to 500W power output
  • Input voltage: AC 100-240V, 50/60Hz
• Cooling System: Efficient cooling fans with front-to-rear or side airflow design
  • Fan speed is automatically adjustable to reduce noise
• Environmental Parameters:
  • Operating temperature: 0°C to +55°C
  • Storage temperature: -40°C to +85°C
  • Humidity range: 5% to 95% (non-condensing)
  • Vibration resistance: Complies with IEC 60068 standards
• Installation Options: 19-inch standard rack-mountable, with options for desktop or wall-mounted installations

Key Features

• Redundant Power Design: Ensures continuous operation by providing backup power in case of primary power failure.
• High-Strength Enclosure: The aluminum alloy construction offers durability and resistance to harsh environmental conditions.
• Efficient Cooling: The adjustable fan speed allows for optimal thermal management, reducing the risk of overheating and extending component lifespan.
• Wide Temperature Range: The chassis is designed to operate in extreme temperatures, making it suitable for outdoor or industrial environments.
• Vibration Resistance: Compliance with IEC 60068 standards ensures reliable performance in environments with high levels of mechanical stress.

Supported Devices

• CPCI Single Board Computers (SBCs): For processing and control tasks.
• I/O Modules: For connecting to external devices and sensors.
• Power Modules: For managing and distributing power within the system.
• Expansion Modules: For adding additional functionality or capacity as needed.

Applications

The Vanguard CPCI-10-D2 is ideal for applications requiring high reliability, performance, and flexibility, including:

• Industrial Automation: For controlling and monitoring industrial processes in manufacturing plants.
• Telecommunications: In networking equipment and telecom infrastructure where continuous operation is critical.
• Transportation: For onboard systems in trains, aircraft, and ships, where durability and reliability are paramount.
• Military and Defense: In ruggedized systems that must withstand harsh environmental conditions.
• Medical Equipment: For critical medical devices that require high stability and precision.

Functional Characteristics

• Modular Design: The chassis supports a modular approach, allowing for easy customization and expansion with additional CPCI cards.
• Scalability: With 10 slots, the chassis can accommodate a variety of CPCI cards, providing scalability for future upgrades.
• Redundancy: The redundant power supply ensures high availability, minimizing downtime in critical applications.
• Compatibility: The chassis is designed to be compatible with a wide range of CPCI cards, ensuring flexibility in system design.

Conclusion

The Vanguard CPCI-10-D2 is a robust and versatile chassis designed for high-reliability applications in industrial, telecommunications, transportation, military, and medical fields. Its redundant power supply, efficient cooling system, and wide temperature range make it suitable for demanding environments. The modular design and compatibility with various CPCI cards ensure scalability and flexibility in system design. For specific applications, it is recommended to consult with the manufacturer or a systems integrator to ensure the chassis meets all technical and operational requirements.
