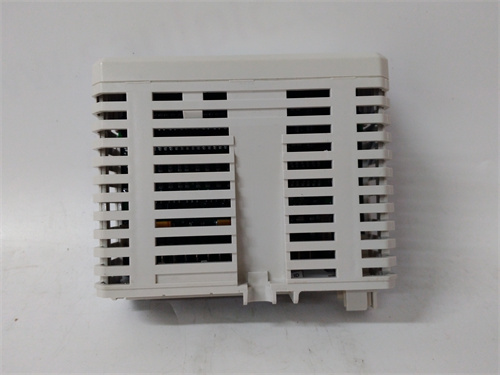

ABB DO810 Product Overview

The ABB DO810 module is produced by ABB and is commonly used in industrial automation systems.The module is responsible for converting the digital signals generated by the control system into corresponding outputs to control external devices or actuators.It has 16 digital output channels,and these output signals can be used to control actuators,valves,motors or other digital control devices.

Technical Specifications

Output channels:16 digital output channels,divided into two separately isolated groups,8 channels each.

Output voltage:The output voltage range is between 10 and 30 volts.

Output current:The maximum continuous output current is 0.5 amperes.

Protection features:The output has short circuit,overvoltage and overtemperature protection.Each output channel consists of a high-side driver with short circuit and overtemperature protection,EMC protection components,inductive load suppression,output status indication LED and optical isolation barrier.

Monitoring function:It has a process voltage monitoring input.If the voltage disappears,a channel error signal will be given,which can be read via ModuleBus.

Indicator:The output status indicator(OSP)sets the output to a predetermined state when an error is detected.

Application characteristics

Communication with the control system:The DO810 module communicates with the control system,receives instructions from the control system,and converts them into corresponding digital output signals,which are then passed to external devices.

PLC system application:The module may be used with a PLC(Programmable Logic Controller)system as an output module to pass control signals generated in the control system to external devices to achieve control of industrial processes.

Industrial automation system integration:The DO810 module can be integrated into an industrial automation system as part of the control system to achieve control of digital output devices in the production process.

Fieldbus communication:The DO810 module may support fieldbus communication protocols,enabling it to exchange data with other devices,sensors,or actuators.
