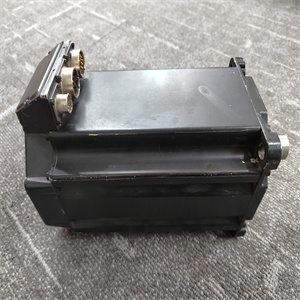

A-B MPL-B540K-SJ24AA A Product Overview

The A-B MPL-B540K-SJ24AA A servo motor is a sophisticated piece of industrial automation equipment manufactured by Allen-Bradley, a renowned brand within the Rockwell Automation portfolio. This servo motor offers a unique blend of precision, performance, and reliability, making it an ideal choice for various industrial applications. Below is a detailed overview of its parameters, specifications, dimensions, weight, series, features, and applications.

‌Series and Manufacturer‌

-‌Series‌: The MPL-B540K-SJ24AA A servo motor belongs to the MPL series, which is known for its high-quality and reliable performance in servo applications.

-‌Manufacturer‌: Allen-Bradley, a subsidiary of Rockwell Automation, renowned for its expertise in industrial automation and control systems.

‌Parameters and Specifications‌

-‌Rated Voltage‌: 400V AC, ensuring compatibility with standard industrial power supplies.

-‌Rated Speed‌: 4000 RPM, providing high-speed performance for dynamic applications.

-‌Output Power‌: 5.4 kW, allowing for substantial torque and load capacity.

-‌Rotor Inertia‌: 0.014 lb-in-s², enabling quick response and precise control.

‌Dimensions and Weight‌

-‌Frame Length‌: 165mm, offering a compact design suitable for space-constrained environments.

-‌Magnet Stack Length‌: 101.6mm (4 inches), contributing to the motor’s high torque-to-size ratio.

-‌Weight‌: Approximately 33 pounds, facilitating easy handling and installation.

‌Features‌

-‌High-Resolution Encoder‌: Equipped with a 1024 sin/cos value encoder for precise position and speed feedback, enhancing control accuracy.

-‌Low Inertia Design‌: Ideal for applications requiring rapid acceleration and deceleration, reducing settling times and improving overall performance.

-‌Circular Bayonet-Style Cable Connector‌: Provides a secure and reliable connection for power and feedback cables, reducing the risk of disconnection during operation.

-‌24 VDC Brake‌: Optional 24V DC brake ensures safe stopping and holding of the motor shaft, enhancing safety and reliability in critical applications.

-‌IEC Metric Standards‌: Compliance with IEC metric standards facilitates integration into global industrial systems and equipment.

‌Applications‌

The A-B MPL-B540K-SJ24AA A servo motor is designed for use in a wide range of industrial automation applications, including

Automated production lines, where precision and speed are crucial for efficient manufacturing processes.

Robotic systems, enabling precise positioning and movement of robotic arms and tools.

CNC machines, where servo motors are essential for accurate tool path control and material processing.

Packaging machinery, where high-speed and accurate positioning are required for efficient packaging operations.
